Mouse Galectin-3 DuoSet ELISA

Catalog #: DY1197
19 Citations 1 Review Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
DY1197
DY1197-05
Ancillary Products Available
DY008B: DuoSet ELISA Ancillary Reagent Kit 2
DY999B: Substrate Reagent Pack
DY999: Substrate Reagent Pack
Mouse Galectin-3 ELISA Standard Curve
1 Image
Product Details
Procedure
Citations (19)
FAQs
Supplemental Products
Reviews (1)
Summary Product Features Kit Content Other Reagents Required Data Examples Product Datasheets Preparation and Storage Background

Mouse Galectin-3 DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
Format
96-well strip plate
Sample Volume Required
100 µL
Assay Range
15.6 - 1,000 pg/mL
Sufficient Materials
For fifteen 96-well plates*
Specificity
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant mouse Galectin-3. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet ELISA.

Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required


PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent: 1% BSA in PBS, pH 7.2-7.4, 0.2 m filtered (R&D Systems Catalog # DY995). Quality of BSA is critical (see Technical Hints).

Blocking Buffer: 1% BSA in PBS, pH 7.2-7.4, 0.2 m filtered (R&D Systems Catalog # DY995). Quality of BSA is critical (see Technical Hints).

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990), or equivalent

Plate Sealers: ELISA Plate Sealers (Catalog # DY992), or equivalent



Scientific Data

N/A Mouse Galectin-3 ELISA Standard Curve View Larger

Mouse Galectin-3 ELISA Standard Curve

Product Datasheets

You must select a language.

x
Product Datasheet
COA
SDS

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Galectin-3

The galectins constitute a large family of carbohydrate-binding proteins that function in many systems both intracellularly and following secretion. Galectins contain either one or two carbohydrate recognition domains (CRR) which mediate recognition of N-acetyl-lactosamine-containing glycoproteins. Some galectins exist in multiple isoforms due to alternative splicing. Individual galectins differ in their tissue distribution and in their carbohydrate-binding specificities.

Entrez Gene IDs:
3958 (Human); 16854 (Mouse)
Alternate Names:
AGE-R3; Carbohydrate-binding protein 35; CBP 35,35 kDa lectin; CBP35; GAL3; Gal-3; galactin-3; Galactose-specific lectin 3; Galactoside-binding protein; GALBPCBP35; Galectin3; Galectin-3; GALIG; IgE-binding protein; L29; L31; L-31; Laminin-binding protein; Lectin L-29; lectin, galactoside-binding, soluble, 3; LGALS2; LGALS3; Mac-2 antigen; Mac-2; MAC2GAL3

Assay Procedure

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody (to the working concentration stated in the product datasheet ) in PBS without carrier protein. Immediately coat a 96-well microplate with 100 µL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 µL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block each well of the microplate as recommended in the product datasheet. Incubate at room temperature for a minimum of 1 hour.

    Note: The recommended Reagent Diluent typically contains 1% BSA. Some DuoSet Development Kits require alternative blocking agents, or for plates to be blocked overnight with a higher percentage of BSA, please see the product datasheet for details.

  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.



PRECAUTION
The Stop Solution suggested for use with this kit is an acid solution. Wear eye, hand, face and clothing protection when using this material.

Assay Procedure

  1. Add 100 µL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 µL of the Detection Antibody, diluted in Reagent Diluent (as recommended in the product datasheet), to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 µL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 µL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 µL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Mouse Galectin-3 DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

19 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Neutrophils and galectin-3 defend mice from lethal bacterial infection and humans from acute respiratory failure
    Authors: Das, S;Kaminski, TW;Schlegel, BT;Bain, W;Hu, S;Patel, A;Kale, SL;Chen, K;Lee, JS;Mallampalli, RK;Kagan, VE;Rajasundaram, D;McVerry, BJ;Sundd, P;Kitsios, GD;Ray, A;Ray, P;
    Nature communications
    Species: Mouse
    Sample Types: BALF
  2. Galectin-3 and Autophagy in Renal Acute Tubular Necrosis
    Authors: Al-Salam, S;Jagadeesh, GS;Sudhadevi, M;Yasin, J;
    International journal of molecular sciences
    Species: Mouse
    Sample Types: Tissue Homogenates
  3. Mutation of the galectin-3 glycan-binding domain (Lgals3-R200S) enhances cortical bone expansion in male mice and trabecular bone mass in female mice
    Authors: KA Maupin, CR Diegel, PD Stevens, D Dick, VAI Vivari, BO Williams
    FEBS Open Bio, 2022-09-14;0(0):.
    Species: Transgenic Mouse
    Sample Types: Plasma
  4. Galectin-3 inhibitor GB0139 protects against acute lung injury by inhibiting neutrophil recruitment and activation
    Authors: DC Humphries, R Mills, C Boz, BJ McHugh, N Hirani, AG Rossi, A Pedersen, HT Schambye, RJ Slack, H Leffler, UJ Nilsson, W Wang, T Sethi, AC Mackinnon
    Frontiers in Pharmacology, 2022-08-08;13(0):949264.
    Species: Mouse
    Sample Types: BALF
  5. Inhibition of Galectin-3 Impairs Antifungal Immune Response in Fungal Keratitis
    Authors: Y Xiao, J Yang, Z Fu, Z Xiong, C Zhang, D He, Z Zhou, N Li, J Yuan
    Disease Markers, 2022-04-09;2022(0):8316004.
    Species: Mouse
    Sample Types: Tissue Homogenates
  6. Gal3 Plays a Deleterious Role in a Mouse Model of Endotoxemia
    Authors: JC Fernández-, AM Espinosa-O, I García-Dom, I Rosado-Sán, YM Pacheco, R Moyano, JG Monterde, JL Venero, RM de Pablos
    International Journal of Molecular Sciences, 2022-01-21;23(3):.
    Species: Mouse
    Sample Types: Serum
  7. Oleanolic acid ameliorates intestinal alterations associated with EAE
    Authors: B Gutierrez, I Gallardo, L Ruiz, Y Alvarez, V Cachofeiro, A Margolles, M Hernandez, ML Nieto
    J Neuroinflammation, 2020-11-27;17(1):363.
    Species: Mouse
    Sample Types: Serum
  8. Network analysis of the progranulin-deficient mouse brain proteome reveals pathogenic mechanisms shared in human frontotemporal dementia caused by GRN mutations
    Authors: M Huang, E Modeste, E Dammer, P Merino, G Taylor, DM Duong, Q Deng, CJ Holler, M Gearing, D Dickson, NT Seyfried, T Kukar
    Acta Neuropathol Commun, 2020-10-07;8(1):163.
    Species: Mouse
    Sample Types: Tissue Homogenates
  9. Galectin-3 enhances neutrophil motility and extravasation into the airways during Aspergillus fumigatus�infection
    Authors: BD Snarr, G St-Pierre, B Ralph, M Lehoux, Y Sato, A Rancourt, T Takazono, SR Baistrocch, R Corsini, MP Cheng, M Sugrue, LR Baden, K Izumikawa, H Mukae, JR Wingard, IL King, M Divangahi, MS Satoh, BG Yipp, S Sato, DC Sheppard
    PLoS Pathog., 2020-08-04;16(8):e1008741.
    Species: Mouse
    Sample Types: Serum
  10. Myocardial Ischemia Reperfusion Injury: Apoptotic, Inflammatory and Oxidative Stress Role of Galectin-3
    Authors: S Al-Salam, S Hashmi
    Cell. Physiol. Biochem., 2018-10-24;50(3):1123-1139.
    Species: Mouse
    Sample Types: Tissue Homogenates
  11. Osteopontin deficiency ameliorates Alport pathology by preventing tubular metabolic deficits
    Authors: W Ding, K Yousefi, S Goncalves, BJ Goldstein, AL Sabater, A Kloosterbo, P Ritter, G Lambert, AJ Mendez, LA Shehadeh
    JCI Insight, 2018-03-22;3(6):.
    Species: Mouse
    Sample Types: Plasma
  12. Galectin-3 Plays an Important Role in Preterm Birth Caused by Dental Infection of Porphyromonas gingivalis
    Authors: M Miyauchi, M Ao, H Furusho, C Chea, A Nagasaki, S Sakamoto, T Ando, T Inubushi, K Kozai, T Takata
    Sci Rep, 2018-02-12;8(1):2867.
    Species: Mouse
    Sample Types: Amniotic Fluid
  13. Tsc2 disruption in mesenchymal progenitors results in tumors with vascular anomalies overexpressing Lgals3
    Authors: PJ Klover, RL Thangapazh, J Kato, JA Wang, SA Anderson, V Hoffmann, WK Steagall, S Li, E McCart, N Nathan, JD Bernstock, MD Wilkerson, CL Dalgard, J Moss, TN Darling
    Elife, 2017-07-11;6(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  14. Effects of carvedilol on structural and functional outcomes and plasma biomarkers in the mouse transverse aortic constriction heart failure model
    Authors: C Hampton, R Rosa, D Szeto, G Forrest, B Campbell, R Kennan, S Wang, CH Huang, L Gichuru, X Ping, X Shen, K Small, J Madwed, JJ Lynch
    SAGE Open Med, 2017-03-30;5(0):2050312117700.
    Species: Mouse
    Sample Types: Plasma
  15. Aldosterone induced galectin-3 secretion in vitro and in vivo: from cells to humans.
    Authors: Lin Y, Chou C, Wu X, Chang Y, Hung C, Chen Y, Tzeng Y, Wu V, Ho Y, Hsieh F, Wu K
    PLoS ONE, 2014-09-02;9(9):e95254.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  16. Free fatty acids and IL-6 induce adipocyte galectin-3 which is increased in white and brown adipose tissues of obese mice.
    Authors: Krautbauer S, Eisinger K, Hader Y, Buechler C
    Cytokine, 2014-07-17;69(2):263-71.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  17. Obesity and IL-6 interact in modulating the response to endotoxemia in mice.
    Cytokine, 2012-09-23;61(1):71-7.
    Species: Mouse
    Sample Types: Plasma
  18. Rosiglitazone improves survival and hastens recovery from pancreatic inflammation in obese mice.
    Authors: Pini M, Rhodes DH, Castellanos KJ
    PLoS ONE, 2012-07-16;7(7):e40944.
    Species: Mouse
    Sample Types: Plasma
  19. Galectin-3 is a negative regulator of lipopolysaccharide-mediated inflammation.
    Authors: Li Y, Komai-Koma M, Gilchrist DS, Hsu DK, Liu FT, Springall T, Xu D
    J. Immunol., 2008-08-15;181(4):2781-9.
    Species: Mouse
    Sample Types: Serum

FAQs

No product specific FAQs exist for this product, however you may

View all ELISA FAQs
Loading...

Reviews for Mouse Galectin-3 DuoSet ELISA

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Mouse Galectin-3 DuoSet ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Mouse Galectin-3 DuoSet ELISA
By Denis Streltsov on 11/21/2018
Sample Tested: Peritonal fluid,Peritoneal fluid,Plasma

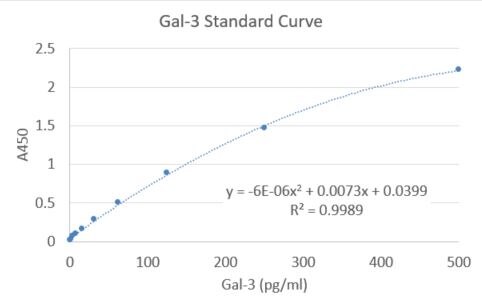

Mouse Galectin-3 DuoSet ELISA DY1197
