Human IL-20R alpha PE-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human IL-20 R alpha in direct ELISAs and Western blots. In Western blots, approximately 5‑15% cross‑reactivity with recombinant human (rh) IFN-gamma R2, rhIL-10 R, rhIL-10 R beta, rhIL-20 R beta, and rhIL-22 BP is observed and no cross-reactivity with rhIFN-gamma RI, recombinant mouse IL‑20 R alpha, or rhIL‑22 R is observed.
Source
Monoclonal Mouse IgG1 Clone # 173714
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant human IL-20 R alpha
Val30-Lys250
Accession # Q9UHF4
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Phycoerythrin (Excitation= 488 nm, Emission= 565-605 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry View Larger

Detection of IL‑20 R alpha in T47D Cell Line by Flow Cytometry. T47D human breast duct carcinoma cell line was stained with Mouse Anti-Human IL-20 Ra PE-conjugated Monoclonal Antibody (Catalog # FAB11762P, filled histogram) or isotype control antibody (IC002P, open histogram). Staining was performed using our View our Staining Membrane-associated Proteins protocol.

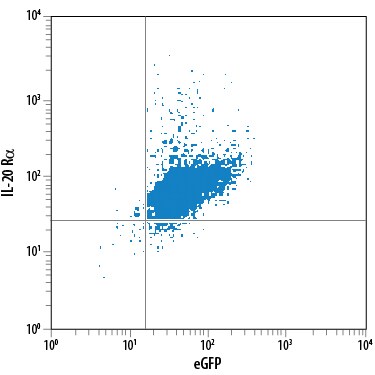

Flow Cytometry Detection of IL-20 Ra antibody in BaF3 Mouse Cell Line Transfected with Human IL-20 Ra and eGFP antibody by Flow Cytometry. View Larger

Detection of IL‑20 R alpha in BaF3 Mouse Cell Line Transfected with Human IL‑20 R alpha and eGFP by Flow Cytometry. BaF3 mouse pro-B cell line transfected with human IL-20 Ra and eGFP was stained with Mouse Anti-Human IL-20 Ra PE-conjugated Monoclonal Antibody (Catalog # FAB11762P). Quadrant markers were set based on control antibody staining (Catalog # IC002P). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: IL-20R alpha

IL-20 receptor alpha (IL-20 R alpha ), also named IL-20 R1, CRF2-8, and ZCYTOR7, belongs to the class II cytokine receptor family, which includes 12 members. These receptors are characterized by the patterns of conserved amino acid (aa) residues in their extracellular domains, which are composed of tandem fibronectin type III domains (1). Class II cytokine receptors form heterodimeric signaling receptor complexes that mediate class II cytokine signals. Subunits of the different receptor complexes are shared and serve multiple functions (1).

The gene for human IL-20 R alpha is mapped to chromosome 6 and encodes a 553 aa glycoprotein with a 29 aa signal peptide, a 221 aa extracellular domain, a 24 aa transmembrane region and a 279 aa intracellular domain (2). IL-20 R alpha is widely expressed and is detected at high levels in multiple tissues including skin, testis, heart, placenta, salivary gland and prostate gland (1). The expression of IL-20 R alpha, together with that of IL-20 R beta, is upregulated in psoriatic skin lesions on keratinocytes, immune cells, and endothelial cells (1, 2).

IL-20 R alpha heterodimerizes with IL-20 R beta to form the functional receptor that mediates IL-19, IL-20 and IL-24 signals (3, 4). IL-20 R alpha also heterodimerizes with IL-10 R beta to form the functional receptor complex for IL-26 (5). Binding of these IL-10 family class II cytokines to their functional receptors induces activation of the JAK-STAT signal transduction pathway. At low ligand concentrations, STAT3 has been shown to be the predominant STAT proteins activated through either complexes (3‑5).

References
  1. Kotenko, S.V. (2003) Cytokine & Growth Factor Reviews 13:223.
  2. Xie, M.H. et al. (2000) J. Biol. Chem. 275:31335.
  3. Dumoutier, L. et al. (2001) J. Immunol. 167:3534.
  4. Parrish-Novak, J. et al. (2002) J. Biol. Chem. 277:47517s.
  5. Sheikh. F. et al. (2004) J. Immunol. 172:2006.
Long Name
Interleukin 20 Receptor alpha
Entrez Gene IDs
53832 (Human); 237313 (Mouse)
Alternate Names
class II cytokine receptor ZCYTOR7; CRF2-8; Cytokine receptor class-II member 8; Cytokine receptor family 2 member 8; FLJ40993; IL-20 R alpha; IL20R alpha; IL-20R alpha; IL-20R1; IL-20R1IL-20 receptor subunit alpha; IL20RA; IL-20Ra; IL-20R-alpha; interleukin 20 receptor, alpha; interleukin-20 receptor I; interleukin-20 receptor subunit alpha; zcytor7

Product Datasheets

You must select a language.

x

Citation for Human IL-20R alpha PE-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. Interleukin-24 inhibits the plasma cell differentiation program in human germinal center B cells.
    Authors: Maarof G, Bouchet-Delbos L, Gary-Gouy H, Durand-Gasselin I, Krzysiek R, Dalloul A
    Blood, 2009-11-24;115(9):1718-26.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
