Human KIR3DL1 APC-conjugated Antibody

Catalog #: FAB12251A
2 Citations Datasheet / COA / SDS

Discontinued Product

FAB12251A has been discontinued.
View all KIR3DL1 products.
Detection of KIR3DL1 in Human PBMCs by Flow Cytometry.
1 Image
Product Details
Citations (2)
FAQs
Reviews
Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human KIR3DL1 APC-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human KIR3DL1 on transfected BaF/3 cells. When tested against a panel of transfectants, no cross-reactivity with KIR2DL1, 2DL2, 2DL3, 2DL4, 2DL5, 2DS1, 2DS2, 2DS4, 3DL2, or 3DS1 is observed.
Source
Monoclonal Mouse IgG2A Clone # 177407
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
BaF3 mouse pro-B cell line transfected with human KIR3DL1
Accession # P43629
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Allophycocyanin (Excitation= 620-650 nm, Emission= 660-670 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of KIR3DL1 antibody in Human PBMCs antibody by Flow Cytometry. View Larger

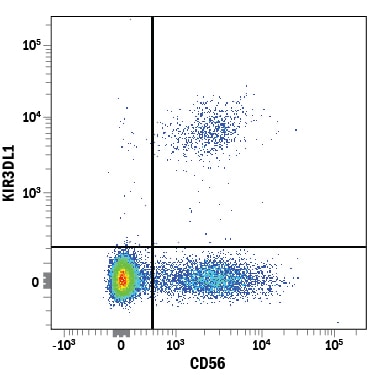

Detection of KIR3DL1 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human KIR3DL1 APC-conjugated Monoclonal Antibody (Catalog # FAB12251A) and Mouse Anti-Human NCAM-1/CD56 PE-conjugated Monoclonal Antibody (Catalog # FAB2408P). Quadrant markers were set based on control antibody staining (Catalog # IC003A). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: KIR3DL1

KIR3DL1 (3DL1, previously called NKB1 or NKAT3, designated CD158e) is a 70 kDa type I transmembrane glycoprotein that belongs to the killer cell Ig-like receptor (KIR) family. KIRs are expressed on CD56dim NK cells and T cell subsets where they regulate effector functions in the innate immune system (1‑3). KIRs are named for the number of Ig-like domains (2D or 3D) in the extracellular domain (ECD), and whether they have long or short (L, S) cytoplasmic tails. Like other inhibiting KIRs, KIR3DL1 has two ITIM domains within its long tail (2). The 319 amino acid (aa) ECD of KIR3DL1 shows 97% aa identity with an activating KIR, KIR3DS1, and the two segregate as alleles (3, 4). KIR3DL1 binds to HLA antigens. This includes HLA-A and -B molecules. Among the HLA-B variants, only the Bw4 epitope, which is present within only one third of all HLA-B alleles, is recognized by KIR3DL1 (4). An NK cell expressing KIR3DL1 is prevented from killing a cell expressing the Bw4 epitope on its surface. However, if the epitope is downregulated on the cell surface due to viral infection, the NK cell is released from inhibition and now kills the infected cell. KIR genes are highly polymorphic, and specific KIR3DL1 alleles vary in surface expression and activity. For example, the allele KIR3DL1*004 is associated with slow progression to AIDS in HIV infected individuals that also express Bw4 (6). Unlike most alleles that are surface-expressed, this allele is mainly retained within the cell (7). KIR3DL1/S1 is the only KIR receptor to have an ortholog in non-primates, including selected mouse strains in which it is also called KIRL1 (KIR-like 1). Although the ECD of human KIR3DL1 shares 40‑48% aa identity with mouse, rat and bovine KIR3DL1, the transmembrane and cytoplasmic regions in the non-primate species show no obvious activating or inhibiting motifs (8, 9).

References
  1. Colonna, M. and J. Samaridis (1995) Science 268:405.
  2. Lanier, L. L. (2005) Annu. Rev. Immunol. 23:225.
  3. Uhrberg, M. et al. (1997) Immunity 7:753.
  4. O’Connor, G. M. et al. (2007) J. Immunol. 178:235.
  5. Thananchai, H. et al. (2007) J. Immunol. 178:33.
  6. Martin, M.P. et al. (2007) Nat. Genet. 39:733.
  7. Pando, M.J. et al. (2003) J. Immunol. 171:6640.
  8. Hoelsbrekken, S.E. et al. (2003) J. Immunol. 170:2259.
  9. Wilson, E.B. et al. (2007) Immunogenetics 59:641.
Long Name
Killer Cell Immunoglobulin-like Receptor, Three Domain Long Cytoplasmic Tail, 1
Entrez Gene IDs
3811 (Human); 245616 (Mouse)
Alternate Names
AMB11; CD158 antigen-like family member E; CD158e antigen; CD158E; CD158e1; CD158e1/2; CD158e2; cl-11; cl-2; HLA-BW4-specific inhibitory NK cell receptor; killer cell immunoglobulin-like receptor 3DL1; killer cell immunoglobulin-like receptor, three domains, long cytoplasmic tail1,nkat3; killer Ig receptor; KIR antigen 3DL1; KIR3DL1; KIR3DL1/S1; KIR3DS1; MGC119726; MGC119728; MGC126589; MGC126591; MHC class I NK cell receptor; Natural killer-associated transcript 3; Nkat3; NKAT-3; NKAT3KIR; NKB1; NKB1B; NKB1CD158E1; NK-receptor; p70 killer cell inhibitory receptor; p70 natural killer cell receptor clones CL-2/CL-11; p70 NK receptor CL-2/CL-11

Product Datasheets

You must select a language.

x
Product Datasheet
COA
SDS

Citations for Human KIR3DL1 APC-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Filter by:

  1. CMV drives clonal expansion of NKG2C+ NK cells expressing self-specific KIRs in chronic hepatitis patients.
    Authors: Beziat V, Dalgard O, Asselah T, Halfon P, Bedossa P, Boudifa A, Hervier B, Theodorou I, Martinot M, Debre P, Bjorkstrom NK, Malmberg KJ, Marcellin P, Vieillard V
    Eur. J. Immunol., 2011-12-16;42(2):447-57.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  2. Natural killer lysis receptor (NKLR)/NKLR-ligand matching as a novel approach for enhancing anti-tumor activity of allogeneic NK cells.
    Authors: Markel G, Seidman R, Besser MJ
    PLoS ONE, 2009-05-19;4(5):e5597.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
