Human/Mouse/Rat FoxP3 PE-conjugated Antibody
Human/Mouse/Rat FoxP3 PE-conjugated Antibody Summary
Gln105-Lys200
Accession # Q9BZS1
Applications
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Scientific Data
View Larger
Detection of FoxP3 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Mouse Anti-Human CD4 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB3791F). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
View Larger

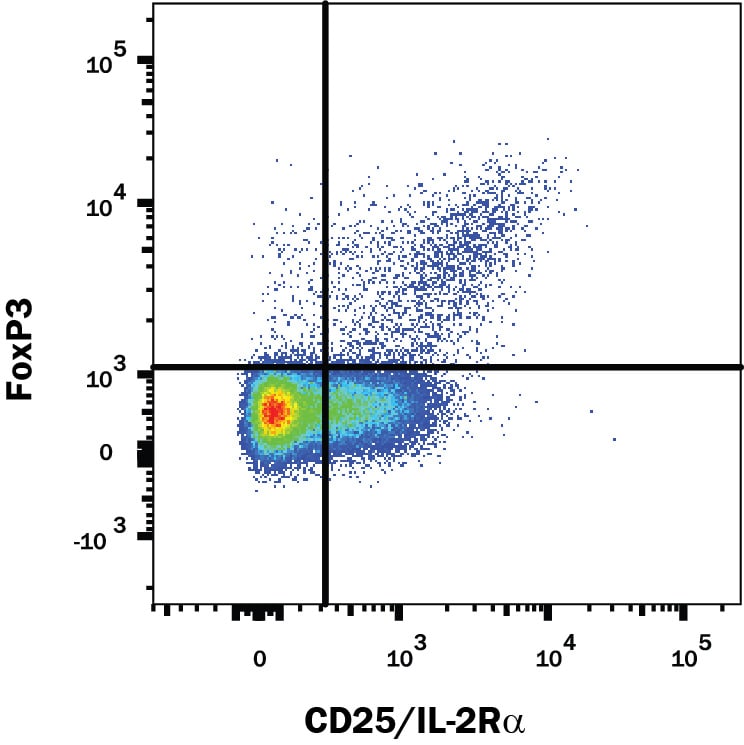

Detection of FoxP3 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Mouse Anti-Human CD25/IL-2 R alpha APC-conjugated Monoclonal Antibody (Catalog # FAB1020A). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
View Larger

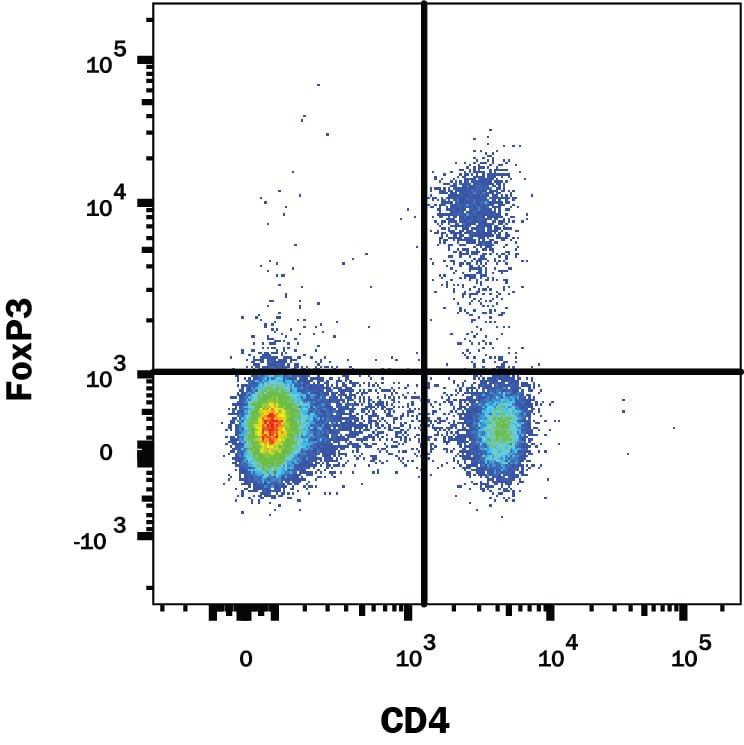

Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Rat Anti-Mouse CD4 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB554G). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
View Larger

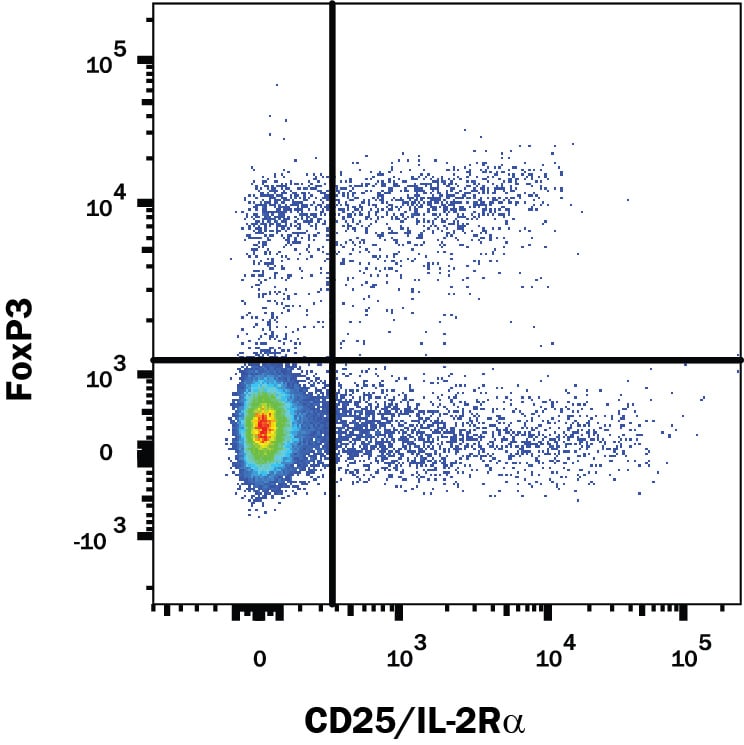

Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Rat Anti-Mouse CD25/IL-2 R alpha APC-conjugated Monoclonal Antibody (Catalog # FAB2438A). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
View Larger

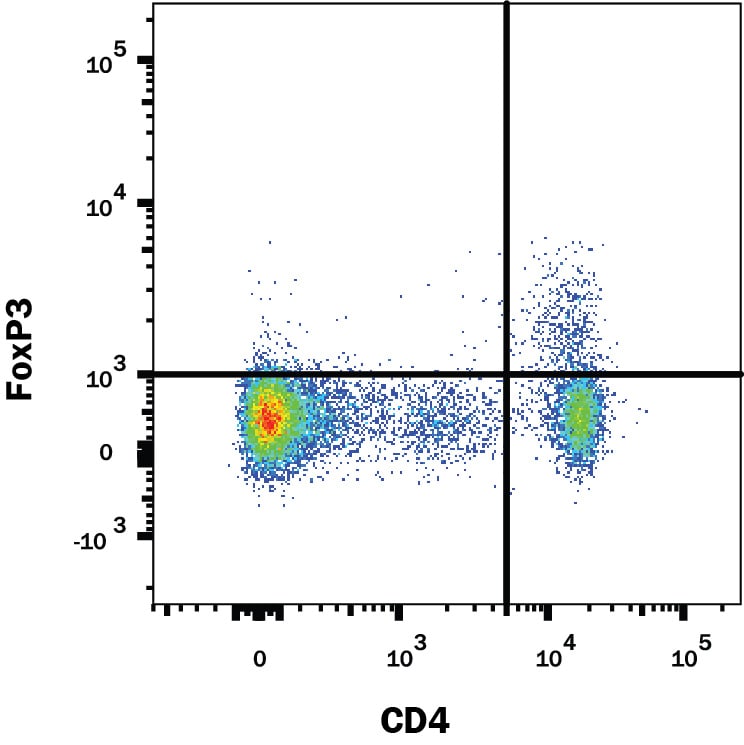

Detection of FoxP3 in Rat Splenocytes by Flow Cytometry. Rat splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Anti-Rat CD4 APC-conjugated Antibody. Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
Reconstitution Calculator
Preparation and Storage
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: FoxP3
Human FoxP3 is a 431 amino acid (aa), 47 kDa member of the P subclass of the FOX (forkhead box) family of transcription factors. It contains a Leu-rich repeat, a C2H2 zinc finger region, and a C-terminal FKH (fork head), DNA-binding domain. Three alternative splicing events have been described in human. The first shows a deletion of aa 72-106, a second exhibits a deletion of aa 246-272, and a third records a 60 aa insertion after Lys382. These events are likely not to be mutually exclusive. The first isoform (plus the full-length form) occurs in CD4+CD25+ T cells, while the less frequent second isoform appears in CD8+ Tregs. The mouse FoxP3 gene does not appear to be spliced. In addition, FoxP3 is found only in Tregs in mouse, while human FoxP3 appears in both Tregs and CD4+ and CD8+ conventional T cells.
Both mouse and human FoxP3 undergo proteolytic processing, after Arg51 and Arg417 in human, and at equivalent sites in mouse. Cleavage at the N-terminus generate a 41 kDa isoform, whereas C-terminal cleavage generates an isoform indistinguishable from the full-length isoform (47 kDa) in SDS-PAGE.
FoxP3 can act as a transcriptional repressor (for IL-2) via an interaction with HDAC7. By contrast, it can also act as a transcriptional activator (for GITRL and
CTLA-4) through an interaction with RUNX7. Notably, for both human and mouse, full-length 47 kDa FoxP3 will induce high levels of CTLA-4 on expressing cells. However, when the C-terminally truncated isoform (at Arg417) is considered, IL-10 promoting activity is enhanced in mouse, while suppressive activity is lost in human. Over aa 105-200, human FoxP3 shares 83% and 84% aa sequence identity with rat and mouse FoxP3, respectively.
Product Datasheets
Citation for Human/Mouse/Rat FoxP3 PE-conjugated Antibody
R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.
1 Citation: Showing 1 - 1
-
Histone demethylase JARID1C/KDM5C regulates Th17 cells by increasing IL-6 expression in diabetic plasmacytoid dendritic cells
Authors: Audu, CO;Wolf, SJ;Joshi, AD;Moon, JY;Melvin, WJ;Sharma, SB;Davis, FM;Obi, AT;Wasikowski, R;Tsoi, LC;Barrett, EC;Mangum, KD;Bauer, TM;Kunkel, SL;Moore, BB;Gallagher, KA;
JCI insight
Species: Mouse
Sample Types: Whole Cells
Applications: Flow Cytometry
