Human/Mouse Tmp21/p23 Antibody

Catalog #: AF7630 Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
AF7630
AF7630-SP

Detection of Human and Mouse Tmp21/p23 by Western Blot.

3 Images

All Tmp21/p23 Antibodies

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human/Mouse Tmp21/p23 Antibody Summary

Species Reactivity

Human, Mouse

Specificity

Detects human and mouse in direct ELISAs and Western blots.

Source

Polyclonal Sheep IgG

Purification

Antigen Affinity-purified

Immunogen

E. coli-derived recombinant human Tmp21/p23
Ile32-Arg185
Accession # P49755

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Western Blot

0.5 µg/mL

See below

Immunohistochemistry

1-15 µg/mL

See below

Knockout Validated

Tmp21/p23 is specifically detected in HEK293T human embryonic kidney parental cell line but is not detectable in Tmp21/p23 knockout HEK293T cell line.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Western Blot

View Larger

Detection of Human and Mouse Tmp21/p23 by Western Blot. Western blot shows lysates of mouse pancreas tissue, U-87 MG human glioblastoma/astrocytoma cell line, and human pancreas tissue. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Tmp21/p23 at approximately 21 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Immunohistochemistry

View Larger

Tmp21/p23 in Human Alzheimer's Brain. Tmp21/p23 was detected in immersion fixed paraffin-embedded sections of human Alzheimer's brain using Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) at 1 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm in glial cells. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Knockout Validated

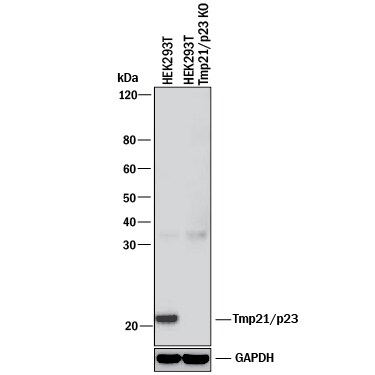

Western Blot Shows Human Tmp21/p23 Antibody Specificity by Using Knockout Cell Line.

View Larger

Western Blot Shows Human Tmp21/p23 Specificity by Using Knockout Cell Line. Western blot shows lysates of HEK293T human embryonic kidney parental cell line and Tmp21/p23 knockout HEK293T cell line (KO). PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse Tmp21/p23 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7630) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Tmp21/p23 at approximately 23 kDa (as indicated) in the parental HEK293T cell line, but is not detectable in knockout HEK293T cell line. GAPDH (Catalog # AF5718) is shown as a loading control. This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Reconstitution Calculator

Preparation and Storage

Reconstitution

Sterile PBS to a final concentration of 0.2 mg/mL.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Tmp21/p23

Tmp21 (Transmembrane protein 21 also TMED-10,Transmembrane emp24 Domain-containing Protein 10, p24δ1 and p23) is a 21‑23 kDa member of the EMP [endosome membrane protein] 24 /GP25L family of cargo molecules. It is ubiquitously expressed, being found associated with the ER-Golgi complex. Molecules destined for secretion are folded/processed in the ER, transported out of the ER via COP-II coated vesicles, united with other molecules in similar vesicles to form an ERGIC/ER-Golgi Intermediate Compartment, and finally delivered to the Golgi (or returned to the ER) via new (presumably COP-I) coated vesicles for terminal maturation. Tmp21 is considered part of both the COP-II and COP-I oligomer complex, the latter that arises from the ERGIC and both stabilizes the ER and allows for the selection of specific molecules targeted for secretion. It also is known to associate with the presenilin complex in the plasma membrane and downregulate gamma ‑secretase activity. This impacts A beta production but not AICD generation. Mature human Tmp21 is a 188 amino acid (aa) type I transmembrane protein. It contains a 154 aa luminal region (aa 32-185) that shows a membrane interaction GOLD (Golgi Dynamics) domain (aa 41-193), and a short 13 aa cytoplasmic tail (aa 207-219) that binds to COP vesicle coat complexes. Exists as both a monomer and homodimer. Over aa 32-185, human Tmp21 shares 97% aa sequence identity with mouse Tmp21.

Long Name

21 kDa Transmembrane Trafficking Protein

Entrez Gene IDs

10972 (Human); 68581 (Mouse); 84599 (Rat)

Alternate Names

21 kDa transmembrane-trafficking protein; p23; P24(DELTA); p24delta; S31I125; S31III125; TMED10; Tmp21; TMP21Tmp-21-I; transmembrane emp24 domain-containing protein 10; transmembrane emp24-like trafficking protein 10 (yeast); Transmembrane protein Tmp21,21 kDa transmembrane trafficking protein
