Human TIM-3 PE-conjugated Antibody

Catalog #: FAB2365P
37 Citations 1 Review Datasheet / COA / SDS
Clone 344823 was used by HLDA to establish CD designation
Catalog # Availability Size / Price Qty
FAB2365P
Best Seller
Detection of TIM‑3 in Human Blood Monocytes by Flow Cytometry.
4 Images
Product Details
Citations (37)
FAQs
Supplemental Products
Reviews (1)
Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human TIM-3 PE-conjugated Antibody Summary

Species Reactivity
Human
Specificity
Detects human TIM‑3 in direct ELISAs and Western blots. Does not cross-react with recombinant human (rh) TIM‑1, rhTIM‑4, recombinant mouse (rm) TIM‑1, rmTIM‑2, rmTIM‑3, rmTIM‑5, or rmTIM‑6.
Source
Monoclonal Rat IgG2A Clone # 344823
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Mouse myeloma cell line NS0-derived recombinant human TIM‑3
Ser22-Arg200
Accession # Q8TDQ0.2
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Phycoerythrin (Excitation= 488 nm, Emission= 565-605 nm)

Applications

Recommended Concentration
Sample
Flow Cytometry
10 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry Detection of TIM-3 antibody in Human Blood Monocytes antibody by Flow Cytometry. View Larger

Detection of TIM‑3 in Human Blood Monocytes by Flow Cytometry. Human peripheral blood monocytes were stained with Rat Anti-Human TIM-3 PE-conjugated Monoclonal Antibody (Catalog # FAB2365P, filled histogram) or isotype control antibody (Catalog # IC006P, open histogram). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry Detection of Human TIM-3 by Flow Cytometry View Larger

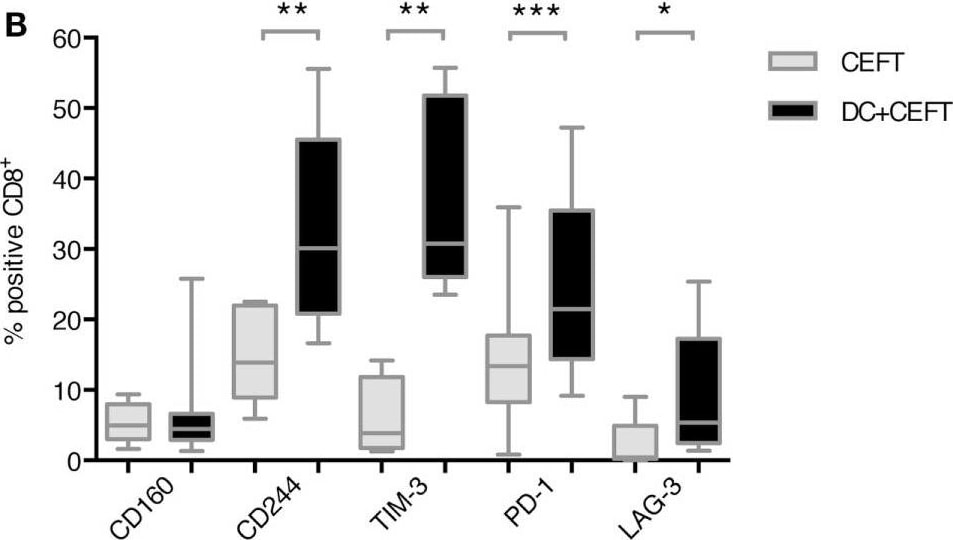

Detection of Human TIM-3 by Flow Cytometry Upregulation of immune checkpoint ligands on T cells after dendritic cell stimulation. T cells of 7–14 healthy donor were cocultured with autologous TLR-3-DCs pulsed with CMV, EBV, influenza, tetanus (CEFT) peptide pool or with CEFT peptide pool alone. Expression of various inhibitory checkpoint molecules was analyzed by flow cytometry. The percentage of positive cells is presented as box-and-whisker plots for CD4+(A) and for CD8+(B) T cells. *p < 0.05; **p < 0.01. Image collected and cropped by CiteAb from the following publication (https://journal.frontiersin.org/article/10.3389/fimmu.2018.00385/full), licensed under a CC-BY license. Not internally tested by R&D Systems.

Flow Cytometry Detection of Human TIM-3 by Flow Cytometry View Larger

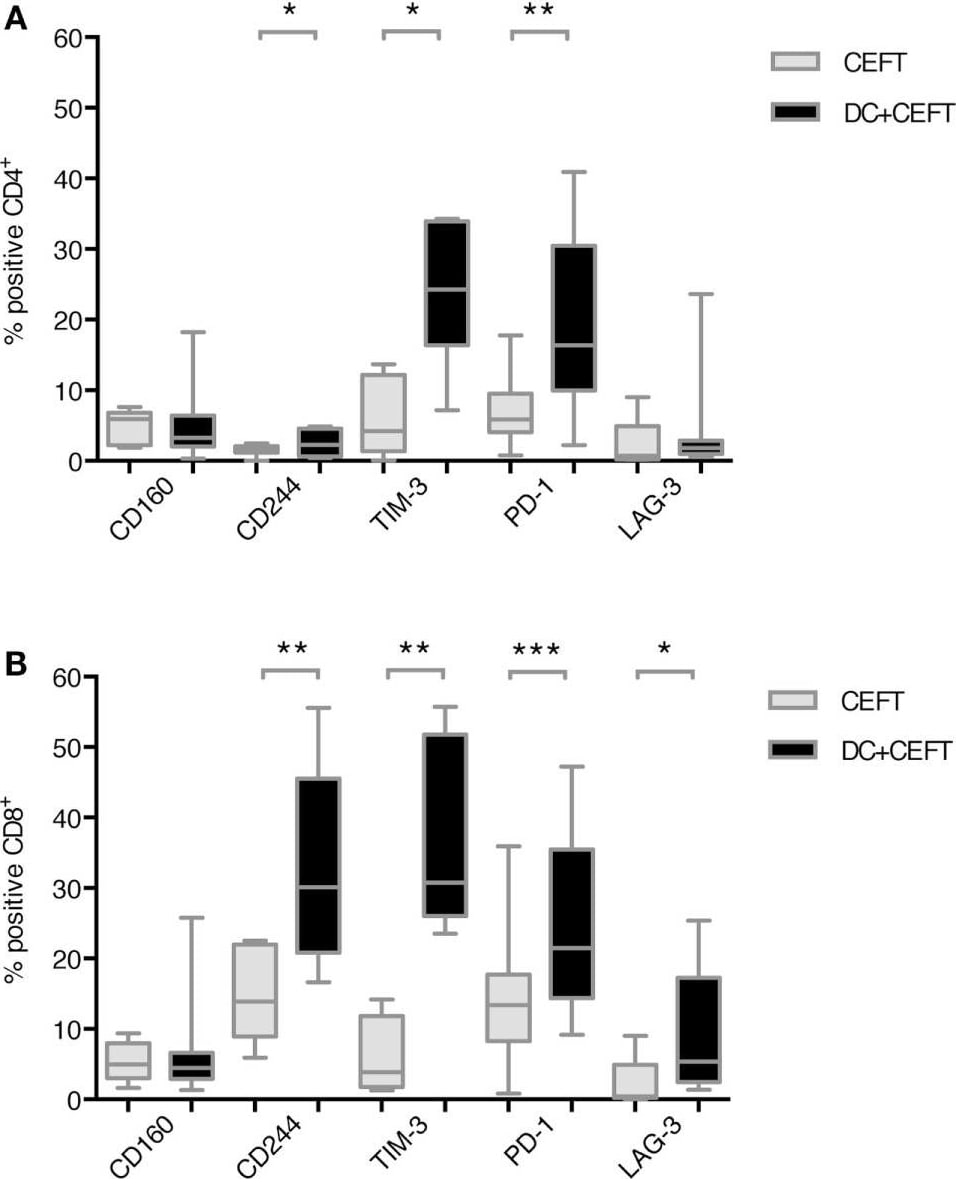

Detection of Human TIM-3 by Flow Cytometry Upregulation of immune checkpoint ligands on T cells after dendritic cell stimulation. T cells of 7–14 healthy donor were cocultured with autologous TLR-3-DCs pulsed with CMV, EBV, influenza, tetanus (CEFT) peptide pool or with CEFT peptide pool alone. Expression of various inhibitory checkpoint molecules was analyzed by flow cytometry. The percentage of positive cells is presented as box-and-whisker plots for CD4+(A) and for CD8+(B) T cells. *p < 0.05; **p < 0.01. Image collected and cropped by CiteAb from the following publication (https://journal.frontiersin.org/article/10.3389/fimmu.2018.00385/full), licensed under a CC-BY license. Not internally tested by R&D Systems.

Flow Cytometry Detection of Human TIM-3 by Flow Cytometry View Larger

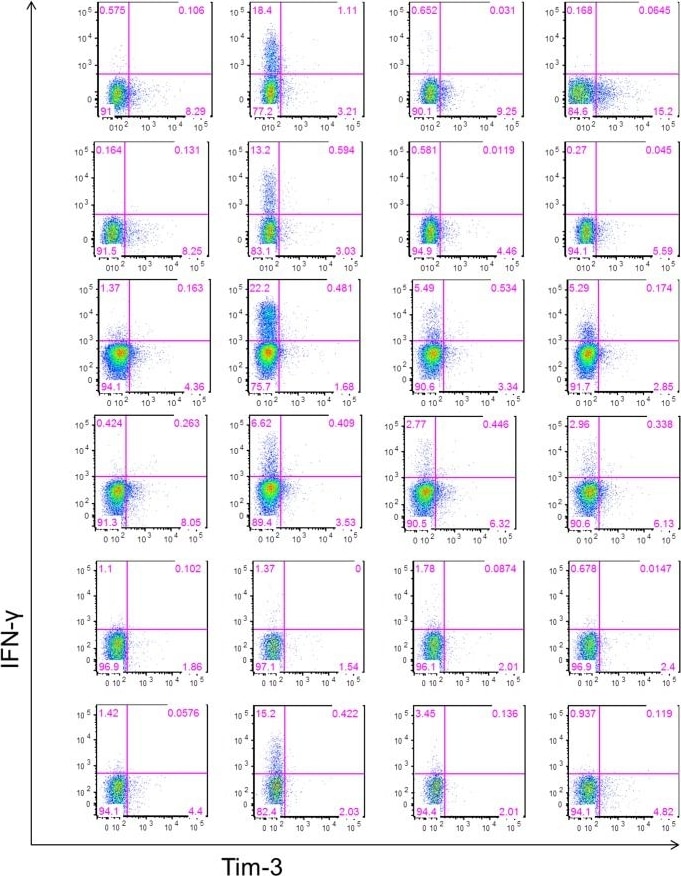

Detection of Human TIM-3 by Flow Cytometry Gating strategy for phenotyping IFN-gamma secreting T cells in response to stimulation.The frequencies of Tim-3+ and Tim-3− IFN-gamma secreting CD4+ and CD8+ T cells were measured in PBMC collected at day 30 post-index from 6 HLA-A02 WNV-infected donors and incubated with or without anti-CD3/anti-CD28 mAbs, WNV peptide pool, and SVG9 tetramer. Tim-3− and Tim-3+ CD4+ and CD8+ T cells were analyzed for IFN-gamma secretion. The gates were set using fluorescence minus one controls. Dot-plots for CD8+ T cells from all 6 WNV+ subjects in different stimulation conditions are shown. Image collected and cropped by CiteAb from the following publication (https://dx.plos.org/10.1371/journal.pone.0092134), licensed under a CC-BY license. Not internally tested by R&D Systems.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: TIM-3

TIM-3 (T cell immunoglobulin and mucin domain-3), also known as HAVCR2, is a 60 kDa member of the TIM family of immune regulating molecules. TIMs are type I transmembrane glycoproteins with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk region (1, 2). Mature human TIM-3 consists of a 181 amino acid (aa) extracellular domain (ECD), a 21 aa transmembrane segment, and a 78 aa cytoplasmic tail (3). An alternatively spliced isoform is truncated within the mucin-like stalk. Within the ECD, human TIM-3 shares 58% aa sequence identity with mouse and rat TIM-3. TIM-3 is up‑regulated on several populations of activated myeloid cells (macrophage, monocyte, dendritic cell, microglia, mast cell) and T cells (Th1, CD8+, NK, Treg) (3-10). Its binding to Galectin-9 induces a range of immunosuppressive functions which enhance immune tolerance and inhibit anti-tumor immunity (11). TIM-3 ligation attenuates CD8+ and Th1 cell responses (11-13) and promotes the activity of Treg and myeloid derived suppressor cells (8, 11, 13, 14). In addition, dendritic cell-expressed TIM-3 dampens inflammation by enabling the phagocytosis of apoptotic cells and the cross-presentation of apoptotic cell antigens (4). It also binds the alarmin HMGB1, thereby preventing the activation of TLRs in response to released tumor cell DNA (7). TIM-3 interactions with Galectin-9 can alternatively trigger immune stimulatory effects, such as the coactivation of NK cell cytotoxicity (10).

References
  1. Sakuishi, K. et al. (2011) Trends Immunol. 32:345.
  2. Anderson, A.C. (2012) Curr. Opin. Immunol. 24:213.
  3. Monney, L. et al. (2002) Nature 415:536.
  4. Nakayama, M. et al. (2009) Blood 113:3821.
  5. Anderson, A.C. et al. (2007) Science 318:1141.
  6. Wiener, Z. et al. (2007) J. Invest. Dermatol. 127:906.
  7. Chiba, S. et al. (2012) Nat. Immunol. 13:832.
  8. Sanchez-Fueyo, A. et al. (2003) Nat. Immunol. 4:1093.
  9. Ndhlovu, L.C. et al. (2012) Blood 119:3734.
  10. Gleason, M.K. et al. (2012) Blood 119:3064.
  11. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  12. Sakhdari, A. et al. (2012) PLoS ONE 7:e40146.
  13. Sabatos, C.A. et al. (2003) Nat. Immunol. 4:1102.
  14. Dardalhon, V. et al. (2010) J. Immunol. 185:1383.
Long Name
T Cell Immunoglobulin Mucin-3
Entrez Gene IDs
84868 (Human); 171285 (Mouse); 363578 (Rat); 479318 (Canine); 102141722 (Cynomolgus Monkey)
Alternate Names
CD366; FLJ14428; HAVCR2; HAVcr-2; hepatitis A virus cellular receptor 2; kidney injury molecule-3; KIM-3; SPTCL; T cell immunoglobulin mucin 3; T cell immunoglobulin mucin-3; T-cell immunoglobulin and mucin domain-containing protein 3; TIM 3; TIM3 T-cell membrane protein 3; TIM3; TIM-3; TIMD3; TIMD-3; TIMD3KIM-3

Product Datasheets

You must select a language.

x
Product Datasheet
COA
SDS

Citations for Human TIM-3 PE-conjugated Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

37 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Evaluation of the Elements of Short Hairpin RNAs in Developing shRNA-Containing CAR T Cells
    Authors: Urak, R;Gittins, B;Soemardy, C;Grepo, N;Goldberg, L;Maker, M;Shevchenko, G;Davis, A;Li, S;Scott, T;Morris, KV;Forman, SJ;Wang, X;
    Cancers
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  2. Phosphatidylserine binding directly regulates TIM-3 function
    Authors: Courtney M. Smith, Alice Li, Nithya Krishnamurthy, Mark A. Lemmon
    Biochemical Journal
  3. Association of TIM-3 expression with glucose metabolism in Jurkat T cells
    Authors: MJ Lee, SJ Yun, B Lee, E Jeong, G Yoon, K Kim, S Park
    BMC Immunol., 2020-08-20;21(1):48.
    Species: Human
    Sample Types: Transfected Whole Cells, Whole Cells
    Applications: Flow Cytometry
  4. Different Expression Pattern of TIM-3 and Galectin-9 Molecules by Peripheral and Peritoneal Lymphocytes in Women with and without Endometriosis
    Authors: M Meggyes, L Szereday, N Bohonyi, M Koppan, S Szegedi, A Marics-Kut, M Marton, A Totsimon, B Polgar
    Int J Mol Sci, 2020-03-28;21(7):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  5. T cell receptor gene therapy targeting WT1 prevents acute myeloid leukemia relapse post-transplant
    Authors: AG Chapuis, DN Egan, M Bar, TM Schmitt, MS McAfee, KG Paulson, V Voillet, R Gottardo, GB Ragnarsson, M Bleakley, CC Yeung, P Muhlhauser, HN Nguyen, LA Kropp, L Castelli, F Wagener, D Hunter, M Lindberg, K Cohen, A Seese, MJ McElrath, N Duerkopp, TA Gooley, PD Greenberg
    Nat. Med., 2019-06-24;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  6. Co-expression of CD39 and CD103 identifies tumor-reactive CD8 T cells in human solid tumors
    Authors: T Duhen, R Duhen, R Montler, J Moses, T Moudgil, NF de Miranda, CP Goodall, TC Blair, BA Fox, JE McDermott, SC Chang, G Grunkemeie, R Leidner, RB Bell, AD Weinberg
    Nat Commun, 2018-07-13;9(1):2724.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  7. Phase I trial of plerixafor combined with decitabine in newly diagnosed older patients with acute myeloid leukemia
    Authors: GJ Roboz, EK Ritchie, Y Dault, L Lam, DC Marshall, NM Cruz, HC Hsu, DC Hassane, PJ Christos, C Ippoliti, JM Scandura, ML Guzman
    Haematologica, 2018-05-03;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  8. Targeting LAG-3 and PD-1 to Enhance T Cell Activation by Antigen-Presenting Cells
    Authors: Felix S. Lichtenegger, Maurine Rothe, Frauke M. Schnorfeil, Katrin Deiser, Christina Krupka, Christian Augsberger et al.
    Frontiers in Immunology
  9. Frontline Science: Tim-3-mediated dysfunctional engulfment of apoptotic cells in SLE
    Authors: D Zhao, M Guo, B Liu, Q Lin, T Xie, Q Zhang, X Jia, Q Shu, X Liang, L Gao, C Ma
    J. Leukoc. Biol., 2017-07-28;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  10. TCR-ligand dissociation rate is a robust and stable biomarker of CD8+ T cell potency
    Authors: M Allard, B Couturaud, L Carretero-, MN Duong, J Schmidt, GC Monnot, P Romero, DE Speiser, M Hebeisen, N Rufer
    JCI Insight, 2017-07-20;2(14):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  11. Synergistic effect of IL-12 and IL-18 induces TIM3 regulation of ?? T cell function and decreases the risk of clinical malaria in children living in Papua New Guinea
    Authors: L Schofield, LJ Ioannidis, S Karl, LJ Robinson, QY Tan, DP Poole, I Betuela, DL Hill, PM Siba, DS Hansen, I Mueller, EM Eriksson
    BMC Med, 2017-06-15;15(1):114.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  12. PD-1 Blockade Promotes Emerging Checkpoint Inhibitors in Enhancing T Cell Responses to Allogeneic Dendritic Cells
    Authors: C Stecher, C Battin, J Leitner, M Zettl, K Grabmeier-, C Höller, GJ Zlabinger, P Steinberge
    Front Immunol, 2017-05-22;8(0):572.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  13. BCG vaccination induces HIV target cell activation in HIV-exposed infants in a randomized trial
    Authors: MA Gasper, AC Hesseling, I Mohar, L Myer, T Azenkot, JS Passmore, W Hanekom, MF Cotton, IN Crispe, DL Sodora, HB Jaspan
    JCI Insight, 2017-04-06;2(7):e91963.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  14. Tim-3 is a Marker of Plasmacytoid Dendritic Cell Dysfunction during HIV Infection and Is Associated with the Recruitment of IRF7 and p85 into Lysosomes and with the Submembrane Displacement of TLR9
    Authors: JA Schwartz, KL Clayton, S Mujib, H Zhang, AK Rahman, J Liu, FY Yue, E Benko, C Kovacs, MA Ostrowski
    J. Immunol, 2017-03-06;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  15. Dendritic cell vaccination in combination with docetaxel for patients with metastatic castration-resistant prostate cancer: A randomized phase II study.
    Authors: Kongsted P, Borch T, Ellebaek E, Iversen T, Andersen R, Met O, Hansen M, Lindberg H, Sengelov L, Svane I
    Cytotherapy, 2017-02-15;19(4):500-513.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  16. Human CAR T cells with cell-intrinsic PD-1 checkpoint blockade resist tumor-mediated inhibition
    J Clin Invest, 2016-07-25;126(8):3130-44.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  17. CD62L+ NKT cells have prolonged persistence and antitumor activity in vivo
    J Clin Invest, 2016-05-16;0(0):.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  18. CD3(bright)CD56(+) T cells associate with pegylated interferon-alpha treatment nonresponse in chronic hepatitis B patients
    Sci Rep, 2016-05-13;6(0):25567.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  19. Polyfunctional Melan-A-specific tumor-reactive CD8(+) T cells elicited by dacarbazine treatment before peptide-vaccination depends on AKT activation sustained by ICOS
    Authors: Ornella Franzese, Belinda Palermo, Cosmo Di Donna, Isabella Sperduti, Virginia Ferraresi, Helena Stabile et al.
    OncoImmunology
  20. GPR56 identifies primary human acute myeloid leukemia cells with high repopulating potential in vivo
    Authors: Caroline Pabst, Anne Bergeron, Vincent-Philippe Lavallée, Jonathan Yeh, Patrick Gendron, Gudmundur L. Norddahl et al.
    Blood
  21. Expression of the galectin-9-Tim-3 pathway in glioma tissues is associated with the clinical manifestations of glioma
    Authors: ZENGJIN LIU, HUAMIN HAN, XIN HE, SHOUWEI LI, CHENXING WU, CHUNJIANG YU et al.
    Oncology Letters
  22. Multidimensional Clusters of CD4+ T Cell Dysfunction Are Primarily Associated with the CD4/CD8 Ratio in Chronic HIV Infection.
    Authors: Frederiksen J, Buggert M, Noyan K, Nowak P, Sonnerborg A, Lund O, Karlsson A
    PLoS ONE, 2015-09-24;10(9):e0137635.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  23. CD127 expression, exhaustion status and antigen specific proliferation predict sustained virologic response to IFN in HCV/HIV co-infected individuals.
    Authors: Kared H, Saeed S, Klein M, Shoukry N
    PLoS ONE, 2014-07-09;9(7):e101441.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  24. Peripheral blood TIM-3 positive NK and CD8+ T cells throughout pregnancy: TIM-3/galectin-9 interaction and its possible role during pregnancy.
    Authors: Meggyes, Matyas, Miko, Eva, Polgar, Beata, Bogar, Barbara, Farkas, Balint, Illes, Zsolt, Szereday, Laszlo
    PLoS ONE, 2014-03-20;9(3):e92371.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  25. Increased frequency of Tim-3 expressing T cells is associated with symptomatic West Nile virus infection.
    Authors: Lanteri M, Diamond M, Law J, Chew G, Wu S, Inglis H, Wong D, Busch M, Norris P, Ndhlovu L
    PLoS ONE, 2014-03-18;9(3):e92134.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  26. Fusion of ubiquitin to HIV gag impairs human monocyte-derived dendritic cell maturation and reduces ability to induce gag T cell responses.
    Authors: Herath S, Benlahrech A, Papagatsias T, Athanasopoulos T, Bouzeboudjen Z, Hervouet C, Klavinskis L, Meiser A, Kelleher P, Dickson G, Patterson S
    PLoS ONE, 2014-02-05;9(2):e88327.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  27. T cell Ig and mucin domain-containing protein 3 is recruited to the immune synapse, disrupts stable synapse formation, and associates with receptor phosphatases.
    Authors: Clayton K, Haaland M, Douglas-Vail M, Mujib S, Chew G, Ndhlovu L, Ostrowski M
    J Immunol, 2013-12-13;192(2):782-91.
    Species: Human
    Sample Types: Whole Cells
    Applications: ICC
  28. Isolation and characterization of canine natural killer cells
    Authors: Helen T. Michael, Daisuke Ito, Valarie McCullar, Bin Zhang, Jeffrey S. Miller, Jaime F. Modiano
    Veterinary Immunology and Immunopathology
  29. The immunomodulatory effects of bevacizumab on systemic immunity in patients with metastatic melanoma.
    Authors: Mansfield A, Nevala W, Lieser E, Leontovich A, Markovic S
    Oncoimmunology, 2013-05-01;2(5):e24436.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  30. Upregulation of the tim-3/galectin-9 pathway of T cell exhaustion in chronic hepatitis B virus infection.
    Authors: Nebbia G, Peppa D, Schurich A, Khanna P, Singh H, Cheng Y, Rosenberg W, Dusheiko G, Gilson R, Chinaleong J, Kennedy P, Maini M
    PLoS ONE, 2012-10-24;7(10):e47648.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  31. Age-related expansion of Tim-3 expressing T cells in vertically HIV-1 infected children.
    Authors: Tandon, Ravi, Giret, Maria T, Sengupta, Devi, York, Vanessa, Wiznia, Andrew A, Rosenberg, Michael, Kallas, Esper G, Ndhlovu, Lishomwa, Nixon, Douglas
    PLoS ONE, 2012-09-24;7(9):e45733.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  32. Tim-3 Negatively Regulates Cytotoxicity in Exhausted CD8(+) T Cells in HIV Infection.
    Authors: Sakhdari A, Mujib S, Vali B
    PLoS ONE, 2012-07-05;7(7):e40146.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  33. Antigen-independent induction of Tim-3 expression on human T cells by the common gamma-chain cytokines IL-2, IL-7, IL-15, and IL-21 is associated with proliferation and is dependent on the phosphoinositide 3-kinase pathway.
    Authors: Mujib S, Jones RB, Lo C, Aidarus N, Clayton K, Sakhdari A, Benko E, Kovacs C, Ostrowski MA
    J. Immunol., 2012-03-14;188(8):3745-56.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  34. Extended co-expression of inhibitory receptors by human CD8 T-cells depending on differentiation, antigen-specificity and anatomical localization.
    Authors: Baitsch L, Legat A, Barba L, Fuertes Marraco SA, Rivals JP, Baumgaertner P, Christiansen-Jucht C, Bouzourene H, Rimoldi D, Pircher H, Rufer N, Matter M, Michielin O, Speiser DE
    PLoS ONE, 2012-02-08;7(2):e30852.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  35. Elevated frequencies of highly activated CD4+ T cells in HIV+ patients developing immune reconstitution inflammatory syndrome.
    Authors: Antonelli LR, Mahnke Y, Hodge JN, Porter BO, Barber DL, DerSimonian R, Greenwald JH, Roby G, Mican J, Sher A, Roederer M, Sereti I
    Blood, 2010-07-26;116(19):3818-27.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  36. Altered expression of T cell immunoglobulin-mucin (TIM) molecules in bronchoalveolar lavage CD4+ T cells in sarcoidosis.
    Authors: Idali F, Wahlstrom J, Dahlberg B, Khademi M, Olsson T, Eklund A, Grunewald J
    Respir Res, 2009-05-29;10(0):42.
    Species: Human
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  37. New insights into the phenotype of human dendritic cell populations.
    Authors: Clark GJ et al.
    Clin Transl Immunology

FAQs

No product specific FAQs exist for this product, however you may

View all Antibody FAQs
Loading...

Reviews for Human TIM-3 PE-conjugated Antibody

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Human TIM-3 PE-conjugated Antibody?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Human TIM-3 PE-conjugated Antibody
By Anonymous on 02/28/2023
Application: Flow Sample Tested: Peripheral blood T cells Species: Human
Flow Cytometry Human TIM-3 PE-conjugated Antibody FAB2365P
