Mouse GITR Ligand/TNFSF18 Antibody

Catalog #: MAB21773 Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
MAB21773-100
MAB21773-SP

Detection of GITR Ligand/TNFSF18 in NS0 Cell Line Transfected with Mouse GITR Ligand/TNFSF18 by Flow Cytometry.

2 Images

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Mouse GITR Ligand/TNFSF18 Antibody Summary

Species Reactivity

Mouse

Specificity

Detects mouse GITR Ligand/TNFSF18 in direct ELISAs.

Source

Monoclonal Rat IgG₁ Clone # 994529

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse GITR Ligand/TNFSF18
Thr47-Ser173
Accession # Q7TS55

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Endotoxin Level

<0.10 EU per 1 μg of the antibody by the LAL method.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Flow Cytometry

0.25 µg/10⁶ cells

See below

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Neutralization

Measured by its ability to neutralize GITR Ligand/TNFSF18-induced proliferation in mouse CD4+ T cells. The Neutralization Dose (ND₅₀) is typically 1.2-12 µg/mL in the presence of 2 µg/mL Recombinant Mouse GITR Ligand/TNFSF18, 0.5 µg/mL Mouse CD3 Monoclonal Antibody, and 10 µg/mL of a cross-linking antibody, Anti-His Tag Monoclonal Antibody.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry

View Larger

Detection of GITR Ligand/TNFSF18 in NS0 Cell Line Transfected with Mouse GITR Ligand/TNFSF18 by Flow Cytometry. NS0 cell line transfected with either mouse GITR Ligand/TNFRSF18 (filled histogram) or irrelevant protein (open histogram) was stained with Rat Anti-Mouse GITR Ligand/TNFRSF18 Monoclonal Antibody (Catalog # MAB21773) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

Neutralization

View Larger

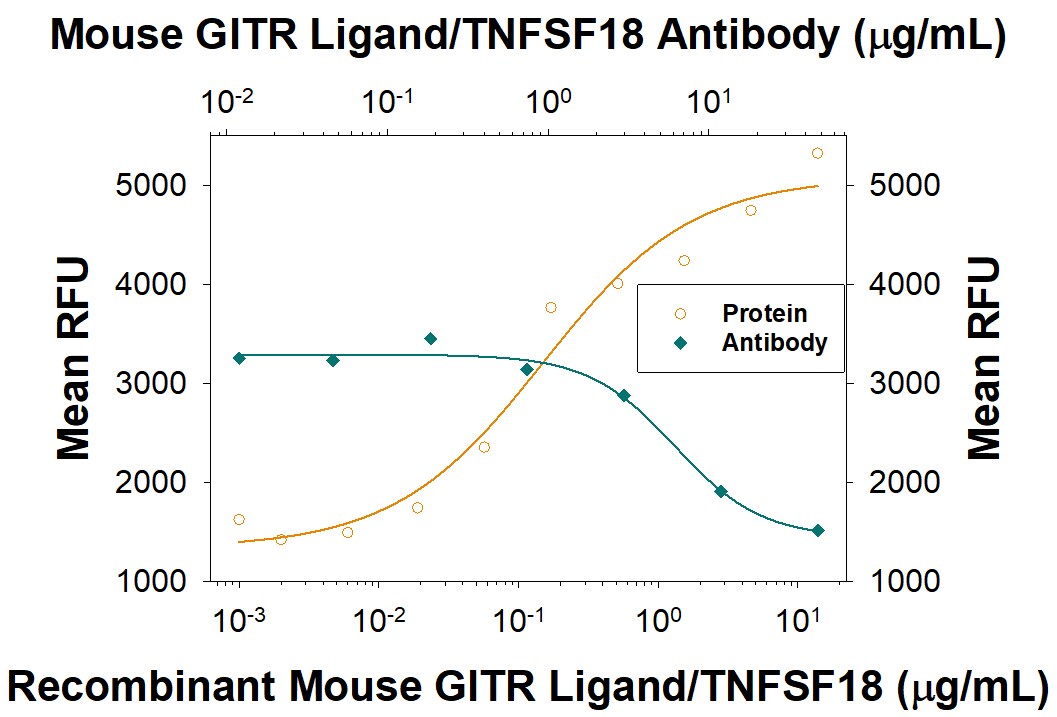

Cell Proliferation Induced by GITR Ligand/TNFSF18 and Neutralization by Mouse GITR Ligand/TNFSF18 Antibody. In the presence of Rat Anti-Mouse CD3 Monoclonal Anti-body (0.5 µg/mL, MAB4841) and a cross-linking antibody, Mouse Anti-His Tag Monoclonal Antibody (10 µg/mL, MAB050), Recombinant Mouse GITR Ligand/TNFSF18 (2177-GL) stimulates proliferation in mouse CD4+T cells in a dose-dependent manner (orange line), as measured by Resazurin (AR002). Under these conditions, proliferation elicited by Recombinant Mouse GITR Ligand/TNFSF18 (2 µg/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse GITR Ligand/ TNFSF18 Monoclonal Antibody (Catalog # MAB21773). The ND₅₀ is typically 1.2-12 µg/mL.

Reconstitution Calculator

Preparation and Storage

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: GITR Ligand/TNFSF18

Glucocorticoid-induced TNF receptor superfamily-related protein ligand (GITRL) is a member of the TNF superfamily (TNFSF) and has been designated TNFSF18. Mouse GITRL cDNA encodes a 173 amino acid (aa) type II membrane protein with a C-terminal extracellular domain of 131 aa, an N-terminal cytoplasmic domain of 23 aa and a transmembrane domain of 19 aa. It shares approximately 60% aa sequence identity with human GITRL (2). Mouse GITRL is expressed at high levels in macrophages, dendritic cells and B cells. The expression is transiently upregulated by LPS stimulation. GITRL binds to the type I transmembrane protein GITR/TNFRSF18, which is a member of the TNF receptor superfamily that is predominantly expressed on CD25⁺ regulatory CD4⁺ T cells (Treg). GITR is also expressed on naïve CD4⁺ CD25^-T cells, where its expression is upregulated after antigen-driven activation (1, 2). Ligation of GITR has been found to induce nuclear factor (NF)-kappa B activation via TNF receptor-associated factor 2. GITRL provides costimulatory signals for activated CD4⁺ CD25^-T cells to enhance cell proliferation and augment cytokine production. On CD4⁺ CD25⁺ Treg cells, GITRL also provides costimulatory signals to induce proliferation, setting Treg cells in an active/hyperproliferactive state that reverses the suppressive function of Treg cells. GITRL-GITR ligation provides important costimulatory signals that play important roles in modulating diverse T cell functions (1-4).

References

Tone, M. et al. (2003) Proc. Natl. Acad. Sci. USA 100:15059.
Ji, H. et al. (2004) J. Immunology 172:5823.
Kanamaru, F. et al. (2004) J. Immunology 172:7306.
Ronchetti, S. et al. (2004) Eur. J. Immunology 34:613.

Long Name

Glucocorticoid Induced TNF Receptor Family Related Gene Ligand

Entrez Gene IDs

8995 (Human); 240873 (Mouse); 364031 (Rat)

Alternate Names

Activation-inducible TNF-related ligand; AITRL; AITRLMGC138237; GITR Ligand; GITRL; GITRLglucocorticoid-induced TNFR-related protein ligand; Glucocorticoid-induced TNF-related ligand; hGITRLGITR ligand; TL6AITR ligand; TNFSF18; tumor necrosis factor (ligand) superfamily, member 18; tumor necrosis factor ligand superfamily member 18
