Mouse LAG-3 PE-conjugated Antibody

Catalog #: FAB33281P Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
FAB33281P-100UG

Detection of LAG-3 in Mouse Splenocytes by Flow Cytometry.

2 Images

All LAG-3 Antibodies

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Mouse LAG-3 PE-conjugated Antibody Summary

Species Reactivity

Mouse

Specificity

Detects mouse LAG-3 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human LAG-3 is observed.

Source

Monoclonal Rat IgG_2B Clone # 631501

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

NS0 mouse myeloma cell line transfected with mouse LAG-3
Ser23-Leu442
Accession # Q61790

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Label

Phycoerythrin (Excitation= 488 nm, Emission= 565-605 nm)

Applications

Recommended Concentration

Sample

Flow Cytometry

0.25-1 µg/10⁶ cells

See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry

View Larger

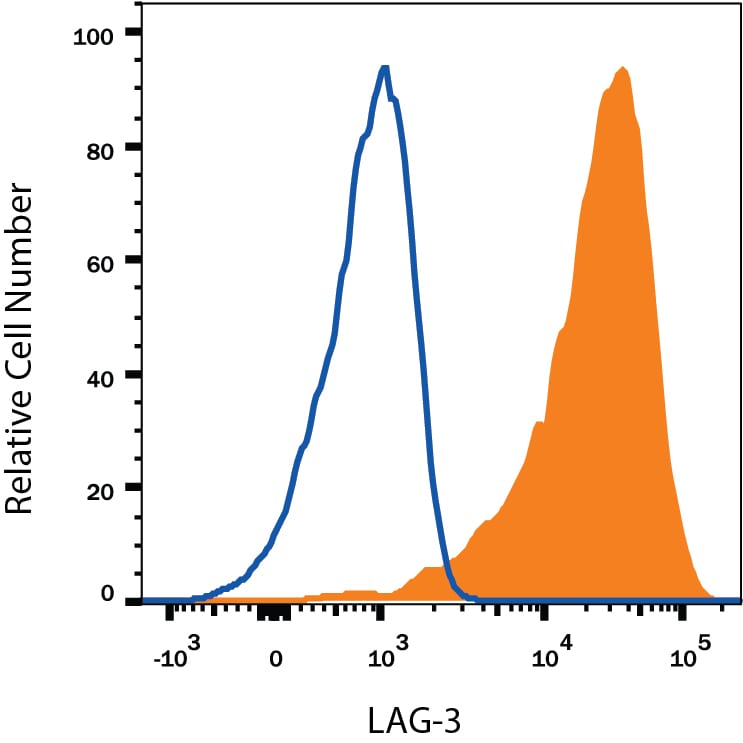

Detection of LAG-3 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes treated with PMA and Calcium Ionomycin for 3 days were stained with Rat Anti-Mouse LAG-3 PE-conjugated Monoclonal Antibody (Catalog # FAB33281P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry

View Larger

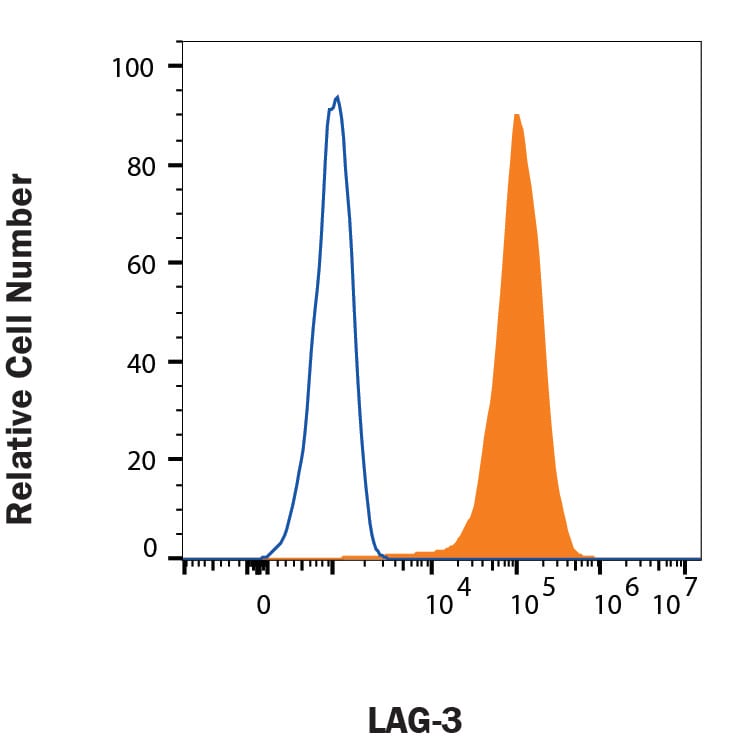

Detection of LAG‑3 in CTLL‑2 mouse cytotoxic T cell line by Flow Cytometry CTLL‑2 mouse cytotoxic T cell line were stained with Rat Anti-Mouse LAG‑3 PE‑conjugated Monoclonal Antibody (Catalog # FAB33281P, filled histogram) or isotype control antibody (Catalog # IC013P, open histogram). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.

12 months from date of receipt, 2 to 8 °C as supplied.

Background: LAG-3

LAG-3 (Lymphocyte activation gene-3; also known as CD223 in the human) is a member of the immunoglobulin superfamily (IgSF). The mature LAG-3 protein is a 496 amino acid (aa) membrane protein with a 421 aa extracellular region which contains four IgSF domains, a 21 aa transmembrane region and a 54 aa cytoplasmic region. LAG-3 shares < 20% amino acid sequence homology with CD4, but has similar structure and binds to MHC class II with higher affinity. The mouse LAG-3 extracellular region shares 69% aa sequence identity with human LAG-3.

Long Name

Lymphocyte-activation Gene 3

Entrez Gene IDs

3902 (Human); 16768 (Mouse); 297596 (Rat); 102122272 (Cynomolgus Monkey)

Alternate Names

CD223 antigen; CD223; LAG3; LAG-3; lymphocyte activating 3; lymphocyte activation gene 3 protein; lymphocyte-activation gene 3; Secreted lymphocyte activation gene 3 protein; sLAG-3
