Non-Human Primate Insulin Cartridge New

Catalog #: SPCKB-NP-011476 Datasheet / COA / SDS

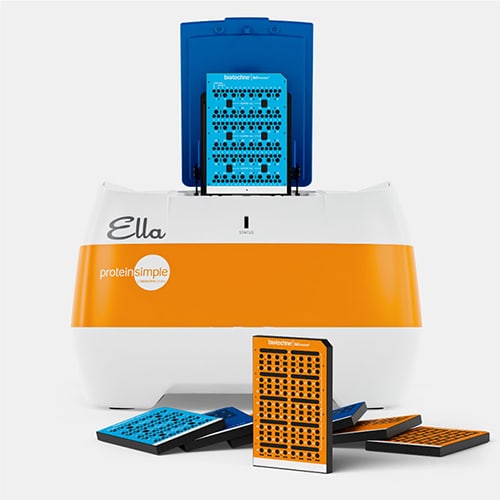

Simple Plex Non-Human Primate Insulin assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-NP-011476
SPCKA-NP-011476
SPCKC-NP-011476

Control Products Available

898424: Simple Plex Control for Human Insulin

Non-Human Primate Insulin Ella Assay Standard Curve

3 Images

Product Details

Supplemental Products

Reviews

Summary Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Non-Human Primate Insulin Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)

Sensitivity

0.006 pmol/L

Assay Range

0.0 - 400 pmol/L (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant Insulin.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of non-human primate Insulin in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin).

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Supernates (n=4)	107	103-110

Linearity

Samples containing and/or spiked with high concentrations of Insulin were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

View Larger

Non-Human Primate Insulin Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Insulin

Insulin and the IGFs are members of the insulin family of molecules. IGF-I and II are structurally homologous to proinsulin, and can be thought of as taking the shape of an exaggerated, inverted letter G. Intrachain disulfide bonds link sections of the G. The single chain insulin propeptide consists of a 30 amino acid B chain (aa 2554), a C-peptide (aa 5589), and a 21 aa A chain (aa 90110). Removal of the C-peptide by proteolysis enables the formation of mature Insulin, a disulfidelinked heterodimer of the A and B chains. Circulating C-peptide levels are elevated in hyperinsulinism, obesity, and type II diabetes.

Entrez Gene IDs:

3630 (Human); 16333 (Mouse); 397415 (Porcine); 280829 (Bovine); 483665 (Canine)

Alternate Names:

IDDM2; ILPR; INS; Insulin; IRDN; MODY10; proinsulin
