Recombinant Canine TIM-3 Fc Chimera Protein, CF

Catalog #: 10719-TM Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
10719-TM-050
Recombinant Canine TIM-3 Fc Chimera Protein Binding Activity.
2 Images
Product Details
FAQs
Reviews
Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Canine TIM-3 Fc Chimera Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human Galectin‑9 (Catalog # 2045-GA) is immobilized at 1 μg/mL (100 µL/well), the concentration of Recombinant Canine TIM‑3 Fc Chimera (Catalog # 10719-TM) that produces 50% of the optimal binding response is found to be approximately 0.15-0.90 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived canine TIM-3 protein
Canine TIM-3
(Ala24-Arg189)
Accession # NP_001241644.1		IEGRMD Human IgG1
(Pro100-Lys330)
N-terminusC-terminus
Accession #
NP_001241644.1
N-terminal Sequence
Analysis
Ala24
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
45 kDa
SDS-PAGE
58-69 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

10719-TM

Product Datasheet
COA
SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10719-TM

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 250 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

When Recombinant Human Galectin‑9 (2045-GA) is immobilized at 1 μg/mL (100 µL/well), the concentration of Recombinant Canine TIM‑3 Fc Chimera (Catalog # 10719-TM) that produces 50% of the optimal binding response is found to be approximately 0.15-0.90 μg/mL.

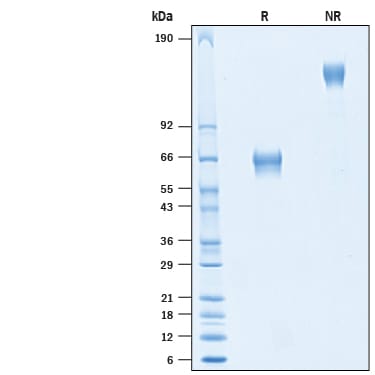

SDS-PAGE View Larger

2 μg/lane of Recombinant Canine TIM-3 Fc Chimera (Catalog # 10719-TM) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 58-69 kDa and 116-138 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: TIM-3

TIM-3 (T cell immunoglobulin and mucin domain-3), also known as HAVCR2, is a 60 kDa member of the TIM family of immune regulating molecules. TIMs are type I transmembrane glycoproteins with one Ig-like V-type domain and a Ser/Thr-rich mucin stalk region (1, 2). Mature canine TIM-3 consists of a 171 amino acid (aa) extracellular domain (ECD), a 21 aa transmembrane segment, and a 67 aa cytoplasmic tail. Within the ECD, canine TIM-3 shares 66% aa sequence identity with human TIM-3. TIM-3 is up‑regulated on several populations of activated myeloid cells (macrophage, monocyte, dendritic cell, microglia, mast cell) and T cells (Th1, CD8+, NK, Treg) (3-10). Its binding to Galectin-9 induces a range of immunosuppressive functions which enhance immune tolerance and inhibit anti-tumor immunity (11). TIM-3 ligation attenuates CD8+ and Th1 cell responses (11-13) and promotes the activity of Treg and myeloid derived suppressor cells (8, 11, 13, 14). In addition, dendritic cell-expressed TIM-3 dampens inflammation by enabling the phagocytosis of apoptotic cells and the cross-presentation of apoptotic cell antigens (4). It also binds the alarmin HMGB1, thereby preventing the activation of TLRs in response to released tumor cell DNA (7). TIM-3 interactions with Galectin-9 can alternatively trigger immune stimulatory effects, such as the coactivation of NK cell cytotoxicity.

References
  1. Sakuishi, K. et al. (2011) Trends Immunol. 32:345.
  2. Anderson, A.C. (2012) Curr. Opin. Immunol. 24:213.
  3. Monney, L. et al. (2002) Nature 415:536.
  4. Nakayama, M. et al. (2009) Blood 113:3821.
  5. Anderson, A.C. et al. (2007) Science 318:1141.
  6. Wiener, Z. et al. (2007) J. Invest. Dermatol. 127:906.
  7. Chiba, S. et al. (2012) Nat. Immunol. 13:832.
  8. Sanchez-Fueyo, A. et al. (2003) Nat. Immunol. 4:1093.
  9. Ndhlovu, L.C. et al. (2012) Blood 119:3734.
  10. Gleason, M.K. et al. (2012) Blood 119:3064.
  11. Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
  12. Sakhdari, A. et al. (2012) PLoS ONE 7:e40146.
  13. Sabatos, C.A. et al. (2003) Nat. Immunol. 4:1102.
  14. Dardalhon, V. et al. (2010) J. Immunol. 185:1383.
Long Name
T Cell Immunoglobulin Mucin-3
Entrez Gene IDs
84868 (Human); 171285 (Mouse); 363578 (Rat); 479318 (Canine); 102141722 (Cynomolgus Monkey)
Alternate Names
CD366; FLJ14428; HAVCR2; HAVcr-2; hepatitis A virus cellular receptor 2; kidney injury molecule-3; KIM-3; SPTCL; T cell immunoglobulin mucin 3; T cell immunoglobulin mucin-3; T-cell immunoglobulin and mucin domain-containing protein 3; TIM 3; TIM3 T-cell membrane protein 3; TIM3; TIM-3; TIMD3; TIMD-3; TIMD3KIM-3
