Recombinant Cynomolgus LAG-3 His-tag Protein, CF

Catalog #: 9992-L3
1 Citation Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
9992-L3-050
Recombinant Cynomolgus LAG-3 His-tag Protein Bioactivity
2 Images
Product Details
Citations (1)
FAQs
Reviews
Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Cynomolgus LAG-3 His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its ability to induce TNF-alpha secretion by JAWSII mouse immature dendritic cells. The ED50 for this effect is 0.15-0.9 μg/mL in the presence of a cross-linking antibody, Mouse Anti-polyHistidine Monoclonal Antibody (Catalog # MAB050R).
Source
Chinese Hamster Ovary cell line, CHO-derived cynomolgus monkey LAG-3 protein
Val20-Leu450 (Pro 74), with a C-terminal 6-His tag
Accession #
XP_005570011.1
N-terminal Sequence
Analysis
Val20
Predicted Molecular Mass
47 kDa
SDS-PAGE
47-61 kDa, reducing conditions

Product Datasheets

You must select a language.

x

9992-L3

Product Datasheet
COA
SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

9992-L3

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, ≤ -20 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity Recombinant Cynomolgus LAG-3 His-tag Protein Bioactivity View Larger

Recombinant Cynomolgus Monkey LAG-3 induces TNF-alpha secretion in JAWSII mouse immature dendritic cells. The ED50 for this effect is 0.15-0.9 µg/mL in the presence of a cross-linking antibody, Mouse Anti-His Tag Monoclonal Antibody (Catalog # MAB050R).

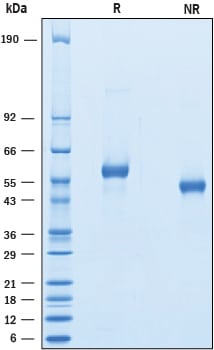

SDS-PAGE Recombinant Cynomolgus LAG-3 His-tag Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Cynomolgus Monkey LAG‑3 was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie Blue staining, showing bands at 45-61 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: LAG-3

LAG-3 (Lymphocyte activation gene-3), designated CD223, is a type I transmembrane protein that is a member of the immunoglobulin superfamily (IgSF) (1, 2). LAG ‑ 3 shares approximately 20% amino acid (aa) sequence homology with CD4, but has similar structure and binds to MHC class II with higher affinity, providing negative regulation of T cell receptor signaling (1, 2). The mature cynomolgus LAG-3 includes an extracellular domain (ECD) with four Ig-like domains, a transmembrane region and a highly charged cytoplasmic region. Within the ECD, cynomolgus LAG-3 shares 92%, 69% and 68% aa sequence identity with human, mouse and rat LAG-3, respectively. LAG-3 is expressed on activated CD4+ and CD8+ T cells, NK cells, and plasmacytoid dendritic cells (pDC), but not on resting T cells (1-3). LAG-3 on activated CD4+CD25+ Treg cells plays a role in their suppressive activity (4). LAG-3 limits the expansion of activated T cells and pDC in response to selected stimuli (3-5). A soluble 54 kDa form, sLAG-3, can be shed by metalloproteinases ADAM10 and TACE/ADAM17 (6, 7). While monomeric sLAG-3 itself may be inactive, shedding allows for normal T cell activation by removing negative regulation (7). Binding of sLAG-3 to MHC class II molecules induces maturation of immature DC, and secretion of cytokines such as IFN-gamma and TNF-alpha by type 1 cytotoxic CD8+ T cells and NK cells (8, 9). sLAG-3 has been used as a potential adjuvant to stimulate a cytotoxic anti-cancer immune response (9, 10). In mice, deletion of LAG-3 and another negative regulator, PD-1, facilitates anti-cancer response but also blocks self-tolerance and increases susceptibility to autoimmune diseases (11, 12). In humans, antibody-mediated down‑regulation of LAG-3 and PD-1 allows more effective control of chronic malaria, while in NOD (non‑obese diabetic) mice, deletion of LAG-3 alone accelerates diabetes (12-14). In addition, LAG-3 is an immune checkpoint protein that modulates T-cell activation and homeostasis and is a promising target for cancer immunotherapies (15, 16).

References
  1. Triebel, F. et al. (1990) J. Exp. Med. 171:1393.
  2. Baixeras, E. et al. (1992) J. Exp. Med 176:327.
  3. Workman, C.J. et al. (2004) J. Immunol. 172:5450.
  4. Huang, C.T. et al. (2004) Immunity 21:503.
  5. Workman, C.J. et al. (2009) J. Immunol. 182:1885.
  6. Li, N. et al. (2004) J. Immunol. 173:6806.
  7. Li, N. et al. (2007) EMBO J. 26:494.
  8. Andreae, S. et al. (2003) Blood 102:2130.
  9. Brignone, C. et al. (2007) J. Immunol. 179:4202.
  10. Brignone, C. et al. (2010) J. Transl. Med. 8:71.
  11. Woo, S.R. et al. (2011) Cancer Res. 72:917.
  12. Okazaki, T. et al. (2011) J. Exp. Med. 208:395.
  13. Bettini, M. et al. (2011) J. Immunol. 187:3493.
  14. Butler, N.S. et al. (2012) Nat. Immunol. 13:188.
  15. Durham N.M. et al. (2014) PLoS One. 9:e109080.
  16. Deng W.W. et al. (2016) Oncoimmunology. 5:e1239005
Long Name
Lymphocyte-activation Gene 3
Entrez Gene IDs
3902 (Human); 16768 (Mouse); 297596 (Rat); 102122272 (Cynomolgus Monkey)
Alternate Names
CD223 antigen; CD223; LAG3; LAG-3; lymphocyte activating 3; lymphocyte activation gene 3 protein; lymphocyte-activation gene 3; Secreted lymphocyte activation gene 3 protein; sLAG-3

Citation for Recombinant Cynomolgus LAG-3 His-tag Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. The multi-specific VH-based Humabody CB213 co-targets PD1 and LAG3 on T cells to promote anti-tumour activity
    Authors: CJ Edwards, A Sette, C Cox, B Di Fiore, C Wyre, D Sydoruk, D Yadin, P Hayes, S Stelter, PD Bartlett, M Zuazo, MJ Garcia-Gra, G Benedetti, S Fiaska, NR Birkett, Y Teng, C Enever, H Arasanz, A Bocanegra, L Chocarro, G Fernandez, R Vera, B Archer, I Osuch, M Lewandowsk, YM Surani, G Kochan, D Escors, J Legg, AJ Pierce
    British Journal of Cancer, 2021-12-30;0(0):.
    Species: Primate
    Sample Types: Protein
    Applications: Bioassay
