Recombinant Cynomolgus VISTA/B7-H5/PD-1H His-tag Protein, CF

Catalog # Availability Size / Price Qty
10473-B7-100
Recombinant Cynomolgus VISTA/B7-H5/PD-1H His-tag Protein Binding Activity
2 Images
Product Details
FAQs
Reviews

Recombinant Cynomolgus VISTA/B7-H5/PD-1H His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human VSIG3 Fc Chimera (Catalog # 9229-VS) is represent at 0.5 µg/mL (100 µL/well), the concentration of Recombinant Cynomolgus Monkey VISTA/B7-H5/PD-1H His-tag (Catalog # 10473-B7) that produces a 50% optimal binding response is found to be 75-375 ng/mL.
Source
Human embryonic kidney cell, HEK293-derived cynomolgus monkey VISTA/B7-H5/PD-1H protein
Phe33-Ala194, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Phe33
Predicted Molecular Mass
20 kDa
SDS-PAGE
35-45 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

10473-B7

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10473-B7

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 200 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity Recombinant Cynomolgus VISTA/B7-H5/PD-1H His-tag Protein Binding Activity View Larger

When Recombinant Human VSIG3 Fc Chimera (Catalog # 9229-VS) is present at 0.5 µg/mL (100 µL/well), the concentration of Recombinant Cynomolgus Monkey VISTA/B7-H5/PD1-H His-tag (Catalog # 10473-B7) that produces a 50% optimal binding response is found to be 75-375 ng/mL.

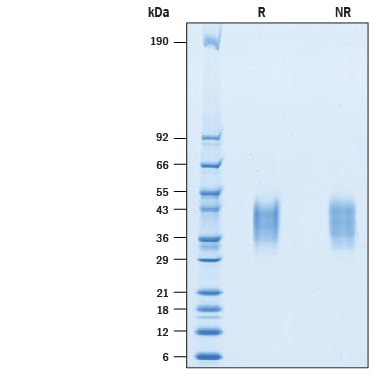

SDS-PAGE Recombinant Cynomolgus VISTA/B7-H5/PD-1H His-tag Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Cynomolgus Monkey VISTA/B7-H5/PD-1H His-tag Protein (Catalog # 10473-B7) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 35-45 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: VISTA/B7-H5/PD-1H

V-type immunoglobulin domain-containing suppressor of T-cell activation (VISTA), also known as B7-H5, Platelet receptor Gi24, and SISP1, is a transmembrane glycoprotein with homology to B7 family of immune co‑stimulatory molecules (1, 2). Mature cynomolgus VISTA consists of an extracellular domain (ECD) with one V‑type Ig‑like domain, a transmembrane segment, and a cytoplasmic domain containing a Src homology 2 (SH2)-binding motif and three C-terminal SH3-binding regions (3). Within the ECD, cynomolgus VISTA shares 96% and 69% amino acid sequence identity with human and mouse VISTA, respectively. In human, the ECD can be shed by MT1‑MMP, leaving behind a fragment in the membrane (4). VISTA promotes both MT1‑MMP expression and the MT1‑MMP mediated activation of MMP2 (4). VISTA supports the differentiation of embryonic stem cells (ESC) and enhances BMP4 induced signaling in ESC but is also down‑regulated following BMP4 exposure (5, 6). VISTA can bind to BMP4 directly and is also capable of associating with the type I BMP receptor Activin RIB/ALK4 (5, 6). VISTA is expressed on the surface of naïve CD4+ T cells and regulatory T cells and functions as an immune checkpoint protein involved in the regulation of T cell activity (3, 7, 8). VISTA is up‑regulated in vivo on activated monocytes and dendritic cells and its overexpression results in reduced CD4+ and CD8+ T cell activation and proliferation and decreased IL2 and IFN-gamma production (6, 7). VISTA expression on tumor cells attenuates the anti‑tumor immune response and enables more rapid tumor progression (7). In contrast, VISTA limits disease progression in the autoimmune disease model EAE (7). VISTA has recently shown to interact with VSIG3 and PSGL1 (9, 10).

References
  1. Flajnik, M.F. et al. (2012) Immunogenetics 64:571.
  2. Wilcox, R.A. et al. (2012) Eur. J. Haematol. 88:465.
  3. Nowak EC et al. (2017) Immunol Rev. 276:66.
  4. Sakr, M.A. et al. (2010) Cancer Sci. 101:2368.
  5. Aloia, L. et al. (2010) J. Biol. Chem. 285:7776.
  6. Parisi, S. et al. (2012) FASEB J. 26:3957.
  7. Wang, L. et al. (2011) J. Exp. Med. 208:577.
  8. Mehta N et al. (2019) Cell Rep. 28:2509
  9. Wang J. et al. (2019) Immunology, 156:74.
  10. Johnston R.J. et al. (2019) Nature 574:565.
Entrez Gene IDs
64115 (Human); 74048 (Mouse); 690899 (Rat); 102116468 (Cynomolgus Monkey)
Alternate Names
4632428N05Rik; B7H5; B7-H5; C10orf54; chromosome 10 open reading frame 54; Dies1; Gi24; PD1H; PD-1H; platelet receptor Gi24; PP2135; SISP1; stress induced secreted protein 1; VISTA; VSIR
