Recombinant Human 4-1BB Ligand/TNFSF9 Protein Summary

Product Specifications

Purity
>97%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human (rh) 4-1BB/TNFRSF9/CD137 Fc Chimera (Catalog # 838-4B) is Immobilized at 10 ng/mL (100 µL/well), the concentration of rh4-1BB Ligand that produces 50% optimal binding response is found to be approximately 0.5‑2.5 ng/mL.
Source
E. coli-derived human 4-1BB Ligand/TNFSF9 protein
Arg71-Glu254, with an N-terminal Met and a 6-His tag
Accession #
N-terminal Sequence
Analysis
Met
Predicted Molecular Mass
20.4 kDa

Product Datasheets

You must select a language.

x

2295-4L (with carrier)

You must select a language.

x

2295-4L/CF (carrier free)

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

2295-4L

Formulation Lyophilized from a 0.2 μm filtered solution in PBS, NaCl and PEG with BSA as a carrier protein.
Reconstitution Reconstitute at 100 μg/mL in sterile PBS containing at least 0.1% human or bovine serum albumin.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, 2 to 8 °C under sterile conditions after reconstitution.

2295-4L/CF

Formulation Lyophilized from a 0.2 μm filtered solution in PBS, NaCl and PEG and with Trehalose.
Reconstitution Reconstitute at 100 μg/mL in sterile PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 3 months, 2 to 8 °C under sterile conditions after reconstitution.
Reconstitution Calculator

Background: 4-1BB Ligand/TNFSF9

4-1BB Ligand (4-1BBL), also known as CD137L, is a type II transmembrane protein that belongs to the TNF superfamily of molecules and plays an important role in immune response activation (1). The 38 kDa human 4-1BB Ligand consists of an 25 aa cytoplasmic domain, a 23 aa transmembrane segment, and a 206 aa extracellular domain (ECD) (2). Within the ECD, human 4-1BB Ligand shares 34% aa sequence identity with mouse and rat 4-1BB Ligand. 4-1BB Ligand is expressed by activated B cells, monocytes, macrophages, dendritic cells (DC), T cells, lymphoma and multiple myeloma cells, hematopoietic stem cells, early myeloid progenitors, neurons, and astrocytes (3-9). A 26 kDa soluble form of 4-1BB Ligand can be released from the surface of activated cells and retains bioactivity (10).
4-1BB Ligand binds to 4-1BB/TNFRSF9/CD137 on activated CD4+ and CD8+ T cells, thymocytes, and NK cells as well as on monocytes, neutrophils, DC, and eosinophils. In response to 4-1BB Ligand binding, 4-1BB transduces a co-stimulatory signal that promotes the proliferation, activation, and survival of CD4+ and CD8+ T cells (4, 11, 12). T cell co-stimulation through CD28 is important for the initial T cell expansion, while 4-1BB acts later in the response (12, 13). 4-1BB Ligand function supports the survival and responsiveness of memory T cells during viral infection (13-15). Reverse signaling through 4-1BB Ligand on monocytes induces the production of inflammatory cytokines (5). On macrophages, 4-1BB Ligand associates in cis with TLR4 and enhances inflammatory cytokine production in response to TLR4 ligation (6). Its expression on early myeloid progenitor cells limits the development of dendritic cells, monocytes, and B cells (9).

References
  1. Wang, C. et al. (2009) Immunol. Rev. 229:192.
  2. Alderson, M.R. et al. (1994) Eur. J. Immunol. 24:2219.
  3. Reali, C. et al. (2003) J. Neurosci. Res. 74:67.
  4. DeBenedette, M.A. et al. (1997) J. Immunol. 158:551.
  5. Langstein, J. et al. (1998) J. Immunol. 160:2488.
  6. Kang, Y.J. et al. (2007) Nat. Immunol. 8:601.
  7. Baessler, T. et al. (2010) Blood 115:3058.
  8. Gullo, C. et al. (2010) PLoS One 5:e10845.
  9. Lee, S.-W. et al. (2008) Nat. Immunol. 9:917.
  10. Salih, H.R. et al. (2001) J. Immunol. 167:4059.
  11. Wen, T. et al. (2002) J. Immunol. 168:4897.
  12. Cannons, J.L. et al. (2001) J. Immunol. 167:1313.
  13. Bertram, E.M. et al. (2002) J. Immunol. 168:3777.
  14. Bukczynski, J. et al. (2004) Proc. Natl. Acad. Sci. USA 101:1291.
  15. Lin, G.H.Y. et al. (2009) J. Immunol. 182:934.
Entrez Gene IDs
8744 (Human); 21950 (Mouse); 353218 (Rat); 102129676 (Cynomolgus Monkey)
Alternate Names
41BB Ligand; 4-1BB Ligand; 4-1BBL; 4-1BB-L; CD137L; homolog of mouse 4-1BB-L; receptor 4-1BB ligand; TNFSF9; tumor necrosis factor (ligand) superfamily, member 9; tumor necrosis factor ligand superfamily member 9

Citations for Recombinant Human 4-1BB Ligand/TNFSF9 Protein

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

5 Citations: Showing 1 - 5
Filter your results:

Filter by:

  1. Structure of the 4-1BB/4-1BBL complex and distinct binding and functional properties of utomilumab and urelumab
    Authors: SM Chin, CR Kimberlin, Z Roe-Zurz, P Zhang, A Xu, S Liao-Chan, D Sen, AR Nager, NS Oakdale, C Brown, F Wang, Y Yang, K Lindquist, YA Yeung, S Salek-Arda, J Chaparro-R
    Nat Commun, 2018-11-08;9(1):4679.
    Species: Human
    Sample Types: Recombinant Protein
    Applications: Surface Plasmon Resonance
  2. An anti-TL1A antibody for the treatment of asthma and inflammatory bowel disease
    Authors: AW Clarke, L Poulton, D Shim, D Mabon, D Butt, M Pollard, V Pande, J Husten, J Lyons, C Tian, AG Doyle
    MAbs, 2018-03-05;0(0):1-43.
    Species: Human
    Sample Types: Recombinant Protein
    Applications: Surface Plasmon Resonance (SPR
  3. Galectin-9 controls the therapeutic activity of 4-1BB-targeting antibodies.
    Authors: Madireddi S, Eun S, Lee S, Nemcovicova I, Mehta A, Zajonc D, Nishi N, Niki T, Hirashima M, Croft M
    J Exp Med, 2014-06-23;211(7):1433-48.
    Species: Human
    Sample Types: Protein
    Applications: Bioassay
  4. Tumor necrosis factor receptor 1 associates with CD137 ligand and mediates its reverse signaling.
    Authors: Moh M, Lorenzini P, Gullo C, Schwarz H
    FASEB J, 2013-04-25;27(8):2957-66.
    Species: Human
    Sample Types: Protein
    Applications: Bioassay
  5. Murine insulin growth factor-like (IGFL) and human IGFL1 proteins are induced in inflammatory skin conditions and bind to a novel tumor necrosis factor receptor family member, IGFLR1.
    Authors: Lobito AA, Ramani SR, Tom I, Bazan JF, Luis E, Fairbrother WJ, Ouyang W, Gonzalez LC
    J. Biol. Chem., 2011-03-31;286(21):18969-81.
    Species: Human
    Sample Types:
    Applications: Surface Plasmon Resonance

FAQs

No product specific FAQs exist for this product, however you may

View all Proteins and Enzyme FAQs
Loading...

Reviews for Recombinant Human 4-1BB Ligand/TNFSF9 Protein

Average Rating: 4 (Based on 2 Reviews)

5 Star
0%
4 Star
100%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Recombinant Human 4-1BB Ligand/TNFSF9 Protein?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Recombinant Human 4-1BB Ligand/TNFSF9 Protein
By Anonymous on 05/19/2023

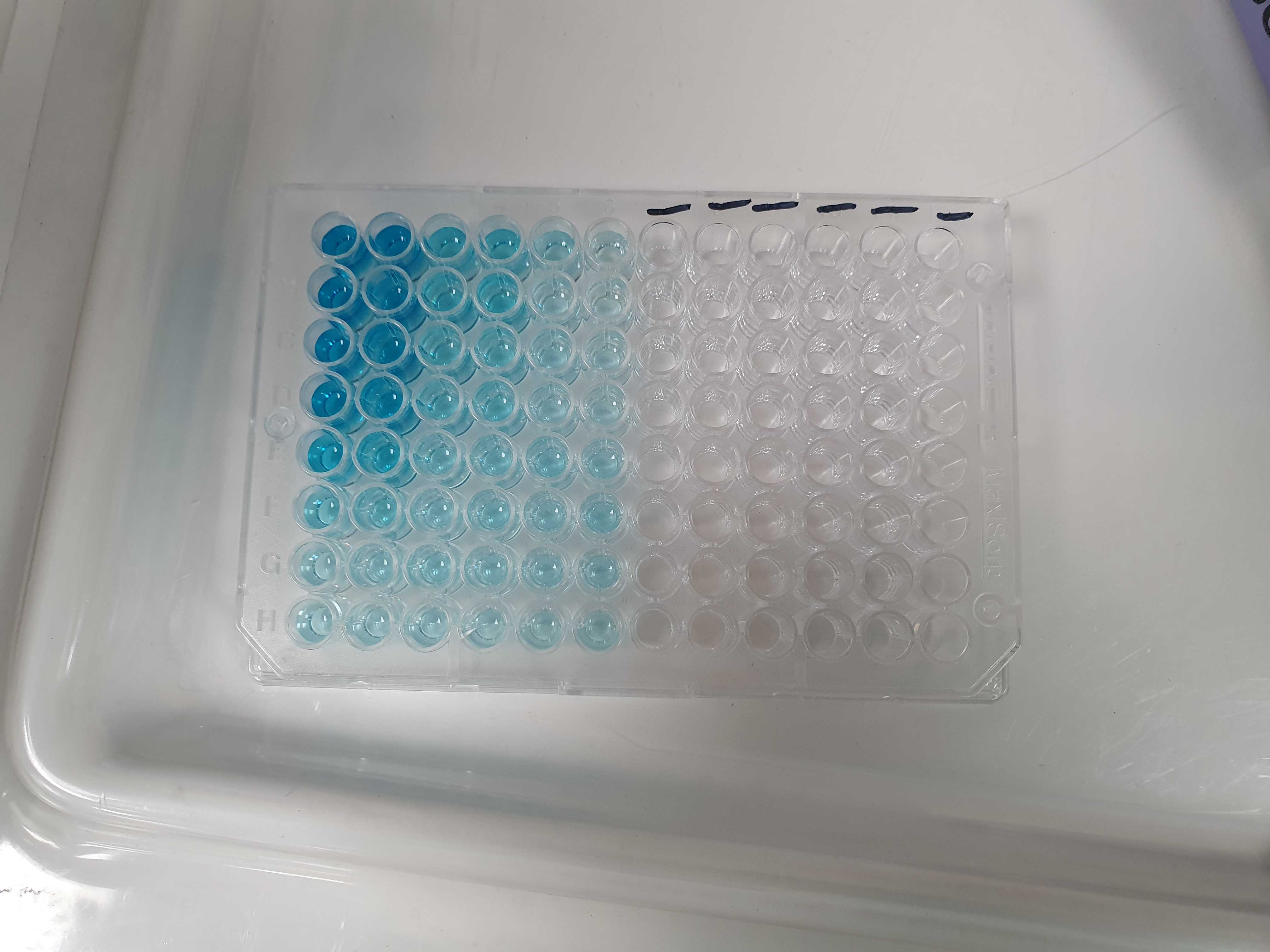

Application: Immunoassay Standard
Reason for Rating: Useful in the 50ng/mL and below range to form a standard curve.

Recombinant Human 4-1BB Ligand/TNFSF9 Protein
By Anonymous on 06/11/2019

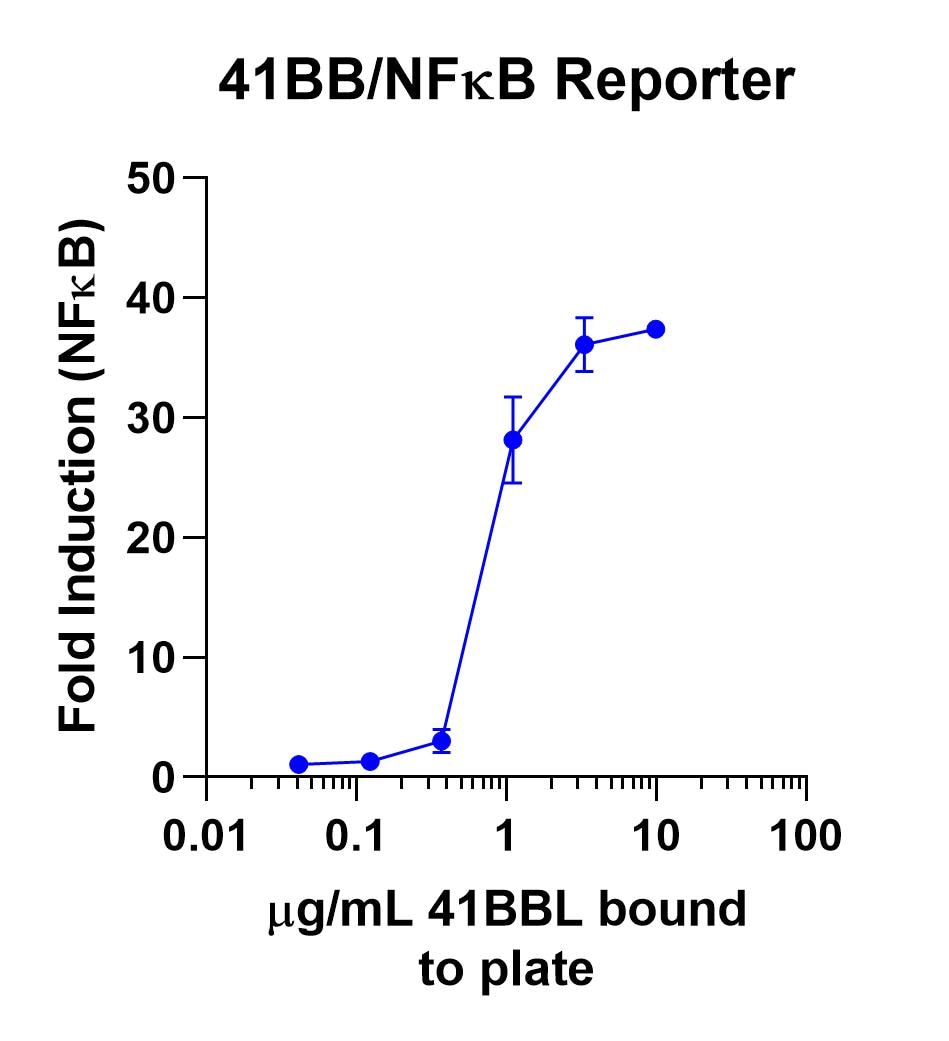

Application: In vitro bioactivity in cell culture
