Recombinant Human CD160 Fc Chimera Protein, CF

Catalog # Availability Size / Price Qty
11575-CD-050
Recombinant Human CD160 Fc Chimera Protein Binding Activity.
2 Images
Product Details
FAQs
Reviews

Recombinant Human CD160 Fc Chimera Protein, CF Summary

Product Specifications

N-terminal Sequence
Analysis
Ile25
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
41 kDa
SDS-PAGE
39-59 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

11575-CD

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

11575-CD

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 250 μg/mL in sterile water.
Stability & Storage: Store the unopened product at -20 to -70 °C. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. Do not use past expiration date.

Scientific Data

Binding Activity View Larger

Measured by its binding ability in a functional ELISA. Recombinant Human CD160 Fc Chimera Protein (Catalog # 11575-CD) binds to Recombinant Human HVEM/TNFRSF14 Fc Chimera Protein (11177-HV) with an ED50 of 30.0‑300 ng/mL.

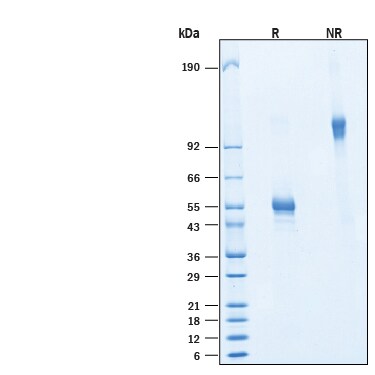

SDS-PAGE View Larger

2 μg/lane of Recombinant Human CD160 Fc Chimera Protein (Catalog # 11575-CD) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at SDS-PAGE 39-59 kDa and 80-120 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD160

CD160 (also Natural killer cell receptor BY55) is a 27 ‑ 30 kDa member of the Ig superfamily (1 ‑ 4). In human, it is expressed principally on nonmyeloid hematopoietic cells. These include CD56DIMCD16+ cytolytic NK cells, CD8+CD28- T cells, CD8+CD101+ IELs, NKT cells, gamma δ TCR T cells, activated CD4+ T cells, and vascular endothelial cells (1, 5 ‑ 7). CD160 was initially identified as a GPI‑linked glycoprotein (3). It is synthesized as a preproprotein that is 181 amino acids (aa) in length. The precursor contains a 26 aa signal sequence, a 133 aa mature molecule that shows one 96 aa V‑type Ig‑like domain (aa 27 ‑ 122), and a 22 aa prosegment that is cleaved to generate a GPI‑linkage at Ser159. GPI‑linked CD160 is known to be cleaved by phospholipases and these generate an 80 kDa (presumably trimeric) band in SDS‑PAGE (1, 8). Alternative splice forms for CD160 are reported to exist on activated NK cells. The principal variant is an extended type I transmembrane (TM) protein that shows a 55 aa substitution for the C‑terminal two amino acids. It contains a 23 aa TM segment (aa 160 ‑ 182) and a 52 aa cytoplasmic region. Two other variants show deletions of the Ig‑like domain in both the GPI‑linked and TM form (9). Mature human CD160 shares 62% aa identity with mouse CD160.

CD160 is known to bind to HLA-G1, HLA-C, and HVEM (6, 9, 10). And upon engagement, it is reported to associate with CD2 in cis under certain conditions (11, 12). The effects of CD160 ligation appear to be context dependent. When expressed on endothelial cells, CD160 binding to HLA-G1 initiates apoptosis, and thus impacts angiogenesis (6). When expressed on CD56DIM NK cells, CD160 signaling in response to HLA-C binding promotes IFN-gamma, TNF-alpha, and IL-6 secretion (10). And when up‑regulated on CD4+ T cells following activation, CD160 engagement by HVEM (expressed by APC) serves to block a simultaneous LIGHT stimulation of HVEM that promotes receptor expression and cytokine release (1, 2, 7, 13).

References
  1. Cai, G. & G.J. Freeman (2009) Immunol. Rev. 229:244.
  2. del Rio, M.L. et al. (2010) J. Leukoc. Biol. 87:223.
  3. Maiza, H. et al. (1993) J. Exp. Med. 178:1121.
  4. Anumanthan, A. et al. (1998) J. Immunol. 161:2780.
  5. Abecassis, S. et al. (2007) J. Invest. Dermatol. 127:1161.
  6. Fons, P. et al. (2006) Blood 108:2608.
  7. Kaye, J. et al. (2008) Nat. Immunol. 9:122.
  8. Giustiniani, J. et al. (2007) J. Immunol. 178:1293.
  9. Giustinani, J. et al. (2009) J. Immunol. 182:63.
  10. Barakonyi, A. et al. (2004) J. Immunol. 173:5349.
  11. Nikolova, M. et al. (2002) Int. Immunol. 14:445.
  12. Rabot, M. et al. (2006) Transpl. Immunol. 17:36.
  13. Cai, G. et al. (2008) Nat. Immunol. 9:176.
Entrez Gene IDs
11126 (Human); 54215 (Mouse); 502585 (Rat); 102117412 (Cynomolgus Monkey)
Alternate Names
BY55; BY55FLJ46513; CD160 antigenimmunoglobulin superfamily member; CD160 molecule; CD160; Natural killer cell receptor BY55; NK1; NK28
