Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 Protein

Catalog #: AFG9269 Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
AFG9269-020

Flow cytometry analysis for Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 staining on anti-Human CD19 Monoclonal Antibody conjugated beads.

2 Images

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 Protein Summary

Learn more about Fluorokines^TM Fluorescent-Labeled Proteins

Product Specifications

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

Activity

Measured by flow cytometry for its ability to bind anti-Human CD19 Monoclonal Antibody conjugated beads. The concentration of Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 (Catalog # AFG9269) that produces 50% of the binding is 0.10‑1.50 μg/mL.

Source

Chinese Hamster Ovary cell line, CHO-derived human CD19 protein

Human CD19 (Glu21-Lys291) Accession # P15391.6	IEGRMD	Human IgG₁ (Pro100-Lys330)
N-terminus		C-terminus

Accession #

P15391.6

N-terminal Sequence
Analysis

Glu21

Structure / Form

Disulfide-linked homodimer

Labeled with Alexa Fluor® 488 via amines

Excitation Wavelength: 488 nm

Emission Wavelength: 515-545 nm

Predicted Molecular Mass

57 kDa

SDS-PAGE

77-92 kDa, under reducing conditions.

Product Datasheets

AFG9269

Product Datasheet

COA

SDS

AFG9269

Formulation	Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping	The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 6 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after opening. 3 months, -20 to -70 °C under sterile conditions after opening.

Scientific Data

Flow Cytometry

View Larger

Streptavidin coated beads conjugated to biotinylated Human CD19 Monoclonal Antibody were stained with the indicated concentrations of Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 (Catalog # AFG9269).

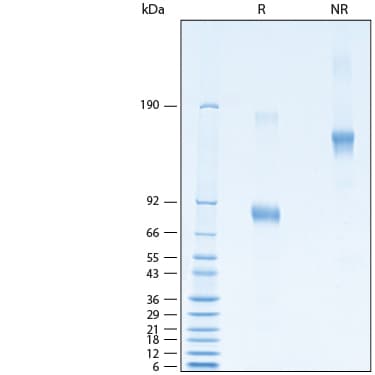

SDS-PAGE

View Larger

2 μg/lane of Recombinant Human CD19 Fc Chimera Alexa Fluor® 488 Protein (Catalog # AFG9269) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 77-92 kDa and 150-180 kDa, respectively.

Reconstitution Calculator

Background: CD19

CD19 protein is a 95 kDa transmembrane glycoprotein that plays a central role in B cell activation and humoral immune responses (1, 2). CD19 is expressed throughout B cell development from pre-B cells through mature B cells, and it is commonly used as a B cell lineage marker (1). It is required for the responsiveness of mature B cell to antigen stimulation, germinal center development, and antibody affinity maturation (4, 5). The CD19 protein associates with the B cell antigen receptor (BCR), CD81, CD38, CD21, CD22, and IFITM1/CD225/Leu13, (6-9). These associations enable CD19 to amplify B cell signaling (7, 9-12) and reduce the threshold for antigen stimulation through the BCR (13). CD19 polymorphisms and up-regulation can lead to the development of autoimmunity by promoting autoantibody production (2). CD19 has emerged as promising therapeutic target for hematologic cancers and solid tumors. Immunotherapy using a chimeric antigen receptor (CAR) targeting CD19 has proven effective in many different cancers. The first CD19 CAR T cell therapies have been granted FDA approval for the treatment of B cell malignancies with several more in clinical trials. Mature human CD19 protein consists of a 272 amino acid (aa) extracellular domain (ECD) with two Ig-like domains, a 22 aa transmembrane segment, and a 243 aa cytoplasmic domain (3). Within the ECD, human CD19 shares 57% amino acid sequence identity with mouse and rat CD19.

References

Wang, K. et al. (2012) Exp. Hematol. Oncol. 1:36.
Tedder, T.F. et al. (1997) Immunity 6:107.
Tedder, T.F. and C.M. Isaacs (1989) J. Immunol. 143:712.
Rickert, R.C. et al. (1995) Nature 376:352.
Engel, P. et al. (1995) Immunity 3:39.
Vences-Catalan, F. et al. (2012) J. Immunol. 137:48.
Deaglio, S. et al. (2007) Blood 109:5390.
Bradbury, L. et al. (1992) J. Immunol. 149:2841.
Krop, I. et al. (1996) J. Immunol. 157:48.
O'Rourke, L.M. et al. (1998) Immunity 8:635.
Buhl, A.M. et al. (1997) J. Exp. Med. 186:1897.
Sato, S. et al. (1995) Proc. Natl. Acad. Sci. USA 92:11558.
Carter, R.H. and D.T. Fearon (1992) Science 256:105.

Entrez Gene IDs

930 (Human); 12478 (Mouse); 365367 (Rat); 397669 (Porcine); 607898 (Canine); 102145514 (Cynomolgus Monkey); 100147468 (Equine)

Alternate Names

B4; B-lymphocyte antigen CD19; B-lymphocyte surface antigen B4; CD19 antigen; CD19 molecule; CD19; CVID3; Differentiation antigen CD19; Leu-12; MGC12802; T-cell surface antigen Leu-12
