Recombinant Human CD47 Fc Chimera Avi-tag Protein, CF

Catalog # Availability Size / Price Qty
AVI4670-050
Recombinant Human CD47 Fc Chimera Avi-tag Protein Bioactivity
3 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human CD47 Fc Chimera Avi-tag Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Why choose R&D Systems Avi-tag CD47 Protein?

  • Guaranteed Bioactivity and High Purity: Bioactivity tested by functional ELISA and purity determined by SDS-PAGE to be greater than 95%.
  • Lot-to-Lot Consistency: Stringent QC testing performed on each lot to ensure consistent activity and purity.
  • Bulk Quantities Available: Bulk up and save with large mass quantities to meet your research needs. Supply agreements available, partner with us. Please contact us.
  • Most Respected, Most Cited Brand in Proteins: With over 35 years of providing the best recombinant proteins to the scientific community, R&D Systems continues to lead the industry in quality, activity, and purity.



Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human SIRP alpha/CD172a Fc Chimera (Catalog # 4546-SA) is immobilized at 0.1 μg/mL (100 μL/well), the concentration of Recombinant Human CD47 Fc Chimera Avi-tag (Catalog # AVI4670) that produces 50% of the optimal binding response is 6‑48 ng/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human CD47 protein
Human CD47
(Gln19-Pro139)
Accession # Q08722
IEGRMDHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
No results obtained: Gln19 predicted
Structure / Form
Disulfide-linked homodimer, Biotinylated via Avi-tag
Predicted Molecular Mass
42 kDa
SDS-PAGE
60-70 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

AVI4670

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI4670

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 100 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity Recombinant Human CD47 Fc Chimera Avi-tag Protein Bioactivity View Larger

When Recombinant Human SIRP alpha/CD172a Fc Chimera (4546-SA) is immobilized at 0.1 µg/mL (100 µL/well), Recombinant Human CD47 Fc Chimera Avi-tag (Catalog # AVI4670) binds with an ED50 of 6-48 ng/mL.

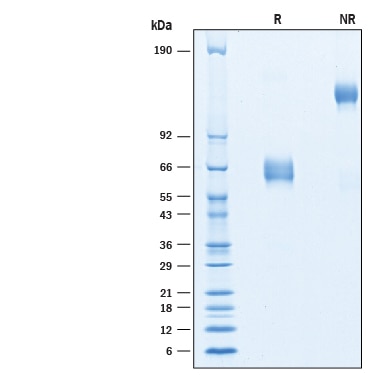

SDS-PAGE Recombinant Human CD47 Fc Chimera Avi-tag Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Human CD47 Fc Chimera Avi-tag (Catalog # AVI4670) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60-70 kDa and 120-140 kDa, respectively.

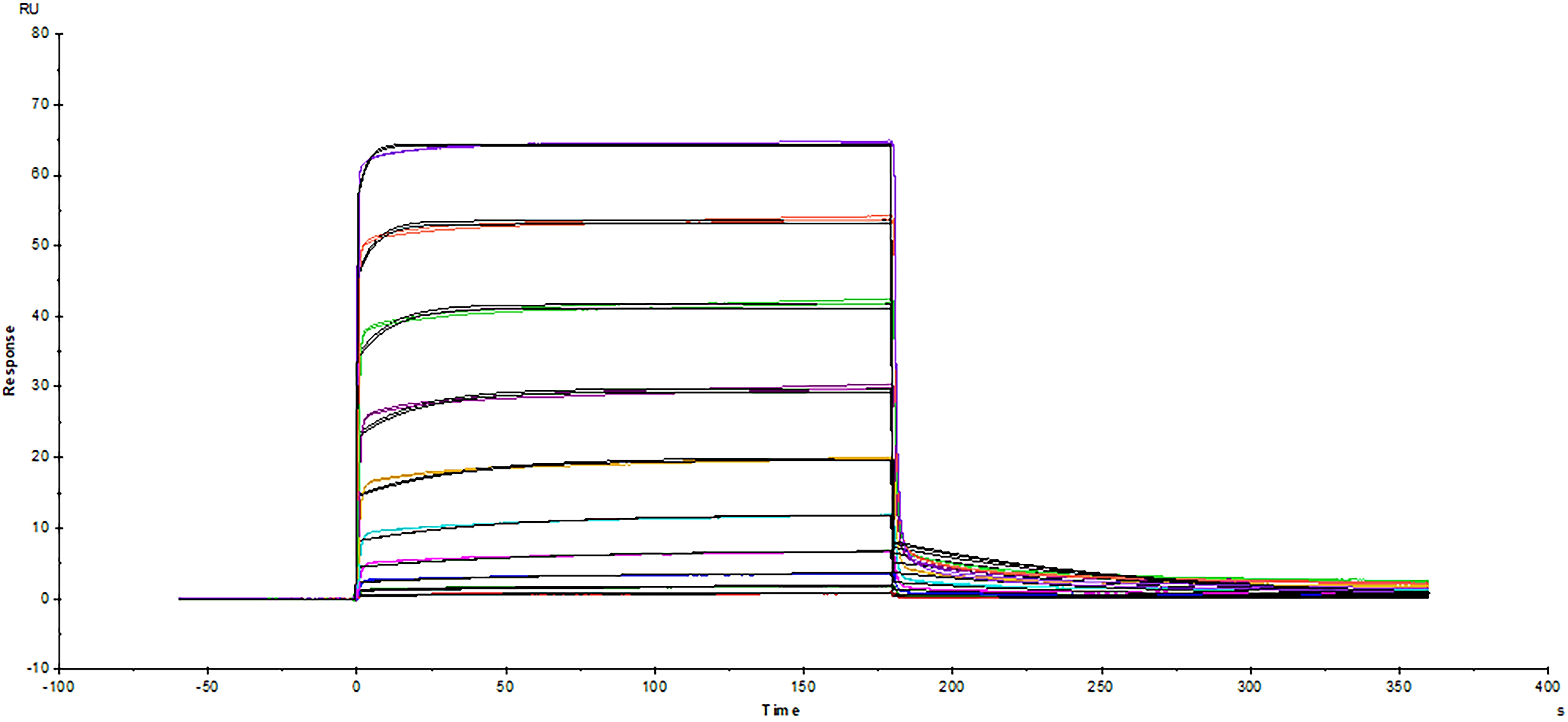

Surface Plasmon Resonance (SPR) Surface plasmon resonance sensorgram of Avi-tag biotinylated human CD47 protein binding to human SIRP alpha View Larger

Avi-tag Biotinylated Recombinant Human CD47 Fc protein (Catalog # AVI4670) was immobilized on a Biacore Sensor Chip CM5 via the Avi-tag biotin, and binding to Recombinant Human SIRP alpha His protein (9378-SA) was measured at a concentration range between 6.85 nM and 3.51 µM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of KD=0.134 µM.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD47

CD47, also known as Integrin-Associated Protein (IAP) and OA3, is a 40-60 kDa variably glycosylated atypical member of the immunoglobulin superfamily (1, 2). Human CD47 is an integral membrane protein that consists of a 123 amino acid (aa) extracellular domain (ECD) with a single Ig-like domain, five membrane-spanning regions with short intervening loops, and a 34 aa C-terminal cytoplasmic tail (3). Alternate splicing of human CD47 generates additional isoforms with deletions in the cytoplasmic tail (3). Within the N-terminal ECD, human CD47 shares 63% aa sequence identity with mouse and rat CD47. A portion of the N‑terminal ECD can by shed from smooth muscle cells by MMP-2-mediated proteolysis (4). The ubiquitously expressed CD47 binds to SIRP family members on macrophages, neutrophils, and T cells (5, 6). These interactions prevent macrophage-mediated clearance of healthy CD47-expressing cells and promote immune cell transmigration across the vascular endothelium (5-8). The CD47-SIRP alpha interaction is species specific, and this lack of cross-species interaction has been implicated in xenotransplantation rejection (16). CD47 associates in cis with Fas on T cells and enhances Fas‑mediated apoptosis; its ligation promotes T cell anergy and dampens Th1 immune responses (9-11). CD47 also associates in cis with Integrins  alpha 4 beta 1, alpha V beta 3, alpha 2b beta 3, and  alpha 2 beta 1 which can positively or negatively modulate Integrin‑mediated function (2, 12). In the vasculature, CD47 binding by Thrombospondin-1 inhibits the angiogenic and vasorelaxant effects of nitric oxide (2, 13, 14). On dendritic cells and myeloma cells, CD47 ligation by TSP-1 induces giant cell formation and osteoclast differentiation (15).

References
  1. Sarfati, M. et al. (2009) Curr. Drug Targ. 9:842.
  2. Isenberg, J.S. et al. (2008) Arterioscler. Thromb. Vasc. Biol. 28:615.
  3. Campbell, I.G. et al. (1992) Cancer Res. 52:5416.
  4. Maile, L.A. et al. (2008) Mol. Endocrinol. 22:1226.
  5. Oldenborg, P.-A. et al. (2000) Science 288:2051.
  6. Liu, Y. et al. (2002) J. Biol. Chem. 277:10028.
  7. Stefanidakis, M. et al. (2008) Blood 112:1280.
  8. de Vries, H.E. et al. (2002) J. Immunol. 168:5832.
  9. Manna, P.P. et al. (2005) J. Biol. Chem. 280:29637.
  10. Avice, M.-N. et al. (2001) J. Immunol. 167:2459.
  11. Bouguermouh, S. et al. (2008) J. Immunol. 180:8073.
  12. Barazi, H.O. et al. (2002) J. Biol. Chem. 277:42859.
  13. Isenberg, J.S. et al. (2009) Nitric Oxide 21:52.
  14. Isenberg, J.S. et al. (2009) Matrix Biol. 28:110.
  15. Kukreja, A. et al. (2009) Blood 114:3413.
  16. Wang H. et al. (2007) Blood 109:836.
Entrez Gene IDs
961 (Human); 16423 (Mouse); 397042 (Porcine); 478552 (Canine); 102139846 (Cynomolgus Monkey)
Alternate Names
antigen identified by monoclonal 1D8; Antigenic surface determinant protein OA3; CD47 antigen (Rh-related antigen, integrin-associated signal transducer); CD47 antigen; CD47 glycoprotein; CD47 molecule; CD47; IAP; IAPintegrin associated protein; Integrin-associated protein; leukocyte surface antigen CD47; MER6; MER6integrin-associated signal transducer; OA3; Protein MER6; Rh-related antigen
