Recombinant Human IL-21R Fc Chimera Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI991-050
Biotinylated Recombinant Human IL-21R Fc Chimera Avi-tag Protein Binding Activity.
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human IL-21R Fc Chimera Avi-tag Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human IL-21 Protein  (Catalog # 8879-IL) is immobilized at 2.0 µg/mL (100 µL/well), the concentration of Biotinylated Recombinant Human IL-21R Fc Chimera Avi-tag (Catalog # AVI991) that produces 50% of the optimal binding response is 0.400-2.40 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human IL-21R protein
Human IL-21R
(Cys20-Pro236)
Accession # Q9HBE5.1
DIEGRMDHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
N-terminal Sequence
Analysis
Cys20
Structure / Form
Disulfide-linked homodimer
Biotinylated via Avi-tag
Predicted Molecular Mass
53 kDa
SDS-PAGE
69-84 kDa, under reducing conditions.

Product Datasheets

You must select a language.

x

AVI991

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI991

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 250 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

When Recombinant Human IL-21 Protein (8879-IL) is immobilized at 2.0 µg/mL (100 µL/well), the concentration of Biotinylated Recombinant Human IL-21R Fc Chimera Avi-tag Protein (Catalog # AVI991) that produces 50% of the optimal binding response is 0.400 2.40 μg/mL.

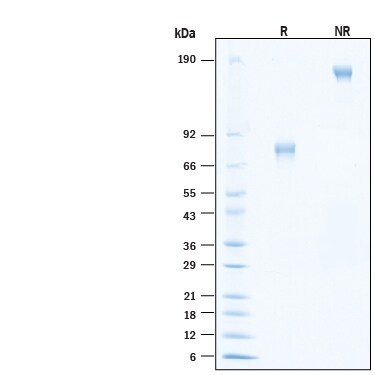

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human IL-21R Fc Chimera Avi-tag Protein (Catalog # AVI991) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 69-84 kDa and 140-170 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: IL-21R

Interleukin-21 Receptor (IL-21 R) is a type I transmembrane glycoprotein within the class I cytokine receptor family (1). IL-21 R associates with the common  gamma  chain ( gamma c) which is also a component of the receptors for IL-2, IL-4, IL-7, IL-9, IL-13, and IL-15 (2, 3). Mature human IL-21 R consists of a 213 amino acid (aa) extracellular domain (ECD) with 4 conserved cysteine residues, a fibronectin type III domain, and a WSxWS motif, followed by a 21 aa transmembrane domain and a 253 aa cytoplasmic domain with a Box 1 motif, a kinase domain, and several sites for tyrosine phosphorylation (4, 5). Within the ECD, human IL-21 R shares 69% aa identity with mouse and rat IL-21 R, respectively. IL-21 R is expressed mainly on B cells (highest on mature, activated, follicular and germinal center B cells), NK cells, and activated T cells, but is also found on dendritic cells, alternatively activated macrophages, intestinal lamina propria fibroblasts and epithelial cells, and keratinocytes (1, 4, 5). Both IL-21 and IL-4 are necessary for efficient B cell IgG1 production and normal germinal center architecture (6). B cell IL-21 R engagement induces Blimp-1 (which mediates plasma cell differentiation) and is important for memory responses (7, 8). IL-21 R engagement enhances NK cell mediated cytotoxic activity and IFN-gamma production (4, 9), control of viral infection and tumor growth by CD8+ T cells (10), development of regulatory T cells (11), IL-23 responsiveness of encephalitogenic Th17 cells (12), but suppresses the accumulation of IL-17 secreting gamma δ T cells in the airway (13). IL-21 R expression is often upregulated in allergic skin inflammation, systemic lupus erythematosus and diffuse large B cell lymphoma (DLBCL) (14, 15). Our Avi-tag Biotinylated human IL-21R Fc Chimera features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References
  1. Tangye, S.G. (2015) Curr. Opin. Immunol. 34:107.
  2. Asao, H. et al. (2001) J. Immunol. 167:1.
  3. Habib, T. et al. (2002) Biochemistry 41:8725.
  4. Parrish-Novak, et al. (2000) Nature 408:57.
  5. Ozaki, K. et al. (2000) Proc. Natl. Acad. Sci. USA 97:11439.
  6. Ozaki, K. et al. (2002) Science 298:1630.
  7. Rankin, A.L. et al. (2011) J. Immunol. 186:667.
  8. King, I.L. et al. (2010) J. Immunol. 185:6138.
  9. Kasaian, M.T. et al. (2002) Immunity 16:559.
  10. Frohlich, A. et al. (2009 Science 324:1576.
  11. Tortola, L. et al. (2010) Blood 116:5200.
  12. Lee, Y. et al. (2015) J. Clin. Invest. 125:4011.
  13. Moser, E.K. et al. (2015) PLoS One 10:e0120169.
  14. Jin, H. et al. (2009) J. Clin. Invest. 119:47.
  15. Sarosiek, K.A. et al. (2010) Blood 115:570.
Long Name
Interleukin 21 Receptor
Entrez Gene IDs
50615 (Human); 60504 (Mouse); 102135042 (Cynomolgus Monkey); 705759 (Rhesus Macaque)
Alternate Names
CD360 antigen; CD360; IL-21 R; IL-21 receptor; IL21R; IL-21R; interleukin 21 receptor; interleukin-21 receptor; MGC10967; NILR; Novel interleukin receptor
