Recombinant Human IL-27 Ra/WSX-1/TCCR Fc Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI1479-050
Biotinylated Recombinant Human IL‑27 R alpha /WSX‑1/TCCR Fc Chimera Avi-tag Protein Binding Activity.
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human IL-27 Ra/WSX-1/TCCR Fc Avi-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human IL-27 (Catalog # 2526-IL/CF) is immobilized at 2 µg/mL (100 µL/well), Biotinylated Recombinant Human IL-27 R alpha /WSX-1/TCCR Fc Chimera Avi-tag (Catalog # AVI1479) binds with an ED50 of 5.00-60.0 ng/mL.
Source
Human embryonic kidney cell, HEK293-derived human IL-27 R alpha/WSX-1/TCCR protein
Human IL-27 R alpha /WSX-1/TCCR
(Gln33-Lys516)
Accession # Q6UWB1.2
IEGRMDHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Gln33 inferred from enzymatic pyroglutamate treatment revealing Gly34
Structure / Form
Disulfide-linked homodimer
Biotinylated via Avi-tag
Predicted Molecular Mass
81 kDa
SDS-PAGE
99-112 kDa, under reducing conditions.

Product Datasheets

You must select a language.

x

AVI1479

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI1479

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

When Recombinant Human IL‑27 (2526-IL/CF) is immobilized at 2 µg/mL (100 µL/well), Biotinylated Recombinant Human IL‑27 R alpha /WSX‑1/TCCR Fc Chimera Avi-tag Protein (Catalog # AVI1479) binds with an ED50 of 5.00-60.0 ng/mL.

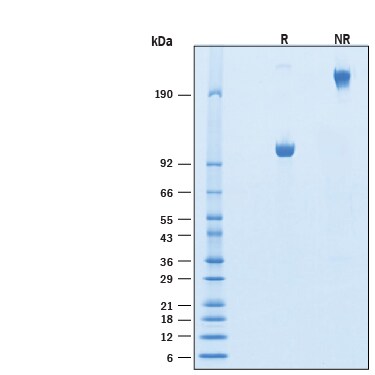

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human IL‑27 R alpha /WSX‑1/TCCR Fc Chimera Avi-tag Protein (Catalog # AVI1479) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 99-112 kDa and 200-220 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: IL-27 R alpha/WSX-1/TCCR

IL‑27 R alpha (also known as WSX‑1 and TCCR) is a 96 ‑ 100 kDa member of the type I, group 2 cytokine receptor family (1, 2, 3, 4, 5, 6). Mature IL‑27 R alpha  is a type I transmembrane glycoprotein that contains a 484 amino acid (aa) extracellular region, a 21 aa transmembrane segment and a 99 aa cytoplasmic domain. Consistent with type I cytokine receptors, the extracellular region contains four positionally conserved cysteine residues, a WSxWS motif (for receptor folding and ligand binding), and three fibronectin type III repeats. The intracellular domain contains a "box‑1" motif that may be involved with Janus kinases (3). One potential alternate splice form has been hypothesized that involves a 58 aa addition to the cytoplasmic domain and, based on mouse, a soluble 33 kDa splice form that shows a 20 aa substitution for aa 257 ‑ 636 may also occur in human (3, 7). The human IL‑27 R alpha extracellular region shares 63% amino acid identity with the mouse IL‑27 R alpha extracellular domain (2, 3). IL‑27 R alpha is expressed in mast cells, endothelial cells, NK cells, macrophages, monocytes, B cells, dendritic cells, and naïve T cells (1, 2, 4, 8). Typical of other class I cytokine receptor chains, the ligand binding IL‑27 R alpha molecule is known to heterodimerize with a signal‑transducing subunit (gp130) to form a functional IL‑27 receptor (9, 10). In addition, IL‑27 R alpha is reported to complex with CNTFR alpha and gp130 form a humanin receptor on neurons (7, 11), and to complex with gp130 and IL‑6 R to form a receptor for a p28:CLF heterodimeric cytokine on lymphocytes (12). Studies using IL‑27 R alpha /WSX‑1‑/‑ mice reveal that IL‑27 has the ability to suppress T cell activity during infection, and to mediate an inhibition of both type 1 and type 2 T cell immunity (4, 13, 14). In particular, IL‑27 is known to act on naïve T cells, blocking their differentiation into a Th17 phenotype. Notably, cells committed to a Th17 phenotype, although they express a functional IL‑27 receptor, are unresponsive to the effects of IL‑27 (15). Activated T cells that are CD4+ and CD8+, and which express the IL‑27 receptor, can be induced by IL‑27 to form a double‑positive CD25+ FoxP3 IFN‑ gamma plus IL‑10 secreting phenotype that both promotes and suppresses the inflammatory response (16). Our Avi-tag Biotinylated human IL-27 R alpha  features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References
  1. Villarino, A.V. et al. (2004) J. Immunol. 173:715.
  2. Chen, Q. et al. (2000) Nature 407:916.
  3. Sprecher, C.A. et al. (1998) Biochem. Biophys. Res. Commun. 246:82.
  4. Artis, D. et al. (2004) J. Immunol. 173:5626.
  5. Yoshida, H. & Y. Miyazaki (2008) Int. J. Biochem. Cell Biol. 40:2379.
  6. Yoshida, H. & M. Yoshiyuki (2008) Immunol. Rev. 226:234.
  7. Hashimoto, Y. et al. (2009) Biochem. Biophys. Res. Commun. 389:95.
  8. Holscher, C. et al. (2005) J. Immunol. 174:3534.
  9. Pflanz, S. et al. (2004) J. Immunol. 172:2225.
  10. Scheller, J. et al. (2005) Biochem. Biophys. Res. Commun. 326:724.
  11. Hashimoto, Y. et al. (2009) Mol. Biol. Cell 20:2864.
  12. Crabe, S. et al. (2009) J. Immunol. 183:7692.
  13. Villarino, A. et al. (2003) J. Immunol. 170:645.
  14. Hamano., S. et al. (2003) Immunity 19:657.
  15. El-behi, M. et al. (2009) J. Immunol. 183:4957.
  16. Fitzgerald, D.C. et al. (2007) Nat. Immunol. 8:1372.
Long Name
Interleukin-27 Receptor Subunit alpha
Entrez Gene IDs
9466 (Human); 50931 (Mouse)
Alternate Names
class I cytokine receptor; CRL1IL-27R; Cytokine receptor-like 1; IL-27 R alpha; IL27R alpha; IL27R; IL27RA; IL-27Ra; IL-27R-alpha; interleukin 27 receptor, alpha; interleukin-27 receptor subunit alpha; TCCR; TCCRIL-27 receptor subunit alpha; T-cell cytokine receptor type 1; Type I T-cell cytokine receptor; WSX-1; WSX1IL-27R subunit alpha; zcytor1
