Recombinant Human LAG-3 Fc Chimera Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI2319-050
Recombinant Human LAG-3 Fc Chimera Avi-tag Protein Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human LAG-3 Fc Chimera Avi-tag Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Purity
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human Hepassocin/FGL1 His-tag (Catalog # 10285-HE) is immobilized at 1 μg/mL (100 μL/well), the concentration of Recombinant Human LAG‑3 Fc Chimera Avi-tag that produces 50% of the optimal binding response is 0.1-0.6 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human LAG-3 protein
Human LAG-3
(Leu23-Leu450)
Accession # P18627.5
IEGRMDHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Leu23
Structure / Form
Disulfide-linked homodimer, biotinylated via Avi-tag
Predicted Molecular Mass
75 kDa
SDS-PAGE
81-92 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

AVI2319

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI2319

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity Recombinant Human LAG-3 Fc Chimera Avi-tag Protein Binding Activity View Larger

When Recombinant Human Hepassocin/FGL1 His-tag (Catalog # 10285-HE) is immobilized at 1 µg/mL (100 µL/well), the concentration of Recombinant Human LAG-3 Fc Chimera Avi-tag that produces 50% of the optimal binding response is 0.1-0.6 µg/mL.

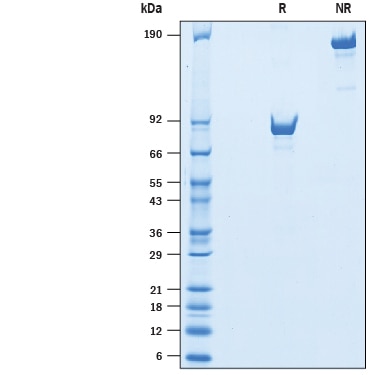

SDS-PAGE Recombinant Human LAG-3 Fc Chimera Avi-tag Protein SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human LAG-3 Fc Chimera Avi-tag (Catalog # AVI2319) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 81-92 kDa and 160-180 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: LAG-3

LAG-3 (Lymphocyte activation gene-3), designated CD223, is a 70 kDa type I transmembrane protein that is a member of the immunoglobulin superfamily (IgSF) (1, 2). LAG-3 shares approximately 20% amino acid sequence homology with CD4, but has similar structure and binds to MHC class II with higher affinity, providing negative regulation of T cell receptor signaling (1, 2). Human LAG-3 cDNA encodes 525 amino acids (aa) that include a 28 aa signal sequence, a 422 aa extracellular domain (ECD) with four Ig-like domains, a  transmembrane region and a highly charged cytoplasmic region. Within the ECD, human LAG-3 shares 70%, 67%, 76%, and 73% aa sequence identity with mouse, rat, porcine, and bovine LAG-3, respectively. LAG-3 is expressed on activated CD4+ and CD8+ T cells, NK cells, and plasmacytoid dendritic cells (pDC), but not on resting T cells (1-3). LAG-3 on activated CD4+CD25+ Treg cells plays a role in their suppressive activity (4). LAG-3 limits the expansion of activated T cells and pDC in response to selected stimuli (3-5). A soluble 54 kDa form, sLAG-3, can be shed by metalloproteinases ADAM10 and TACE/ADAM17 (6, 7). While monomeric sLAG-3 itself may be inactive, shedding allows for normal T cell activation by removing negative regulation (7). Binding of a homodimerized sLAG-3/Ig fusion protein to MHC class II molecules induces maturation of immature DC, and secretion of cytokines such as IFN-gamma and TNF-alpha by type 1 cytotoxic CD8+ T cells and NK cells (8, 9). sLAG-3/Ig has been used as a potential adjuvant to stimulate a cytotoxic anti-cancer immune response (9, 10). In mice, deletion of LAG-3 and another negative regulator, PD-1, facilitates anti-cancer response but also blocks self-tolerance and increases susceptibility to autoimmune diseases (11, 12). In humans, antibody-mediated down‑regulation of LAG-3 and PD-1 allows more effective control of chronic malaria, while in NOD (non‑obese diabetic) mice, deletion of LAG-3 alone accelerates diabetes (12-14).

References
  1. Triebel, F. et al. (1990) J. Exp. Med. 171:1393.
  2. Baixeras, E. et al. (1992) J. Exp. Med 176:327.
  3. Workman, C.J. et al. (2004) J. Immunol. 172:5450.
  4. Huang, C.T. et al. (2004) Immunity 21:503.
  5. Workman, C.J. et al. (2009) J. Immunol. 182:1885.
  6. Li, N. et al. (2004) J. Immunol. 173:6806.
  7. Li, N. et al. (2007) EMBO J. 26:494.
  8. Andreae, S. et al. (2003) Blood 102:2130.
  9. Brignone, C. et al. (2007) J. Immunol. 179:4202.
  10. Brignone, C. et al. (2010) J. Transl. Med. 8:71.
  11. Woo, S.R. et al. (2011) Cancer Res. 72:917.
  12. Okazaki, T. et al. (2011) J. Exp. Med. 208:395.
  13. Bettini, M. et al. (2011) J. Immunol. 187:3493.
  14. Butler, N.S. et al. (2012) Nat. Immunol. 13:188.
Long Name
Lymphocyte-activation Gene 3
Entrez Gene IDs
3902 (Human); 16768 (Mouse); 297596 (Rat); 102122272 (Cynomolgus Monkey)
Alternate Names
CD223 antigen; CD223; LAG3; LAG-3; lymphocyte activating 3; lymphocyte activation gene 3 protein; lymphocyte-activation gene 3; Secreted lymphocyte activation gene 3 protein; sLAG-3
