Recombinant Human OX40/TNFRSF4 His-tag Protein, CF

Catalog # Availability Size / Price Qty
9969-OX-050
Recombinant Human OX40/TNFRSF4 His-tag Protein Binding Activity
2 Images
Product Details
FAQs
Reviews (1)

Recombinant Human OX40/TNFRSF4 His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human OX40/TNFRSF4 is coated at 0.25 μg/mL (100 μL/well), the concentration of Recombinant Human OX40 Ligand/TNFSF4 (Catalog # 1054-OX) that produces 50% optimal binding response is 0.25-1.5 ng/mL.
Source
Mouse myeloma cell line, NS0-derived human OX40/TNFRSF4 protein
Leu29-Ala216, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Leu29
Structure / Form


Predicted Molecular Mass
21 kDa
SDS-PAGE
40-44 kDa, reducing conditions

Product Datasheets

You must select a language.

x

9969-OX

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

9969-OX

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:
  • 12 months from date of receipt, ≤ -20 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity Recombinant Human OX40/TNFRSF4 His-tag Protein Binding Activity View Larger

When Recombinant Human OX40/TNFRSF4 is coated at 0.25 ug/mL, Recombinant Human OX40 Ligand/TNFSF4 (Catalog # 1054-OX) binds with an ED50 of 0.25-1.5 ng/mL.

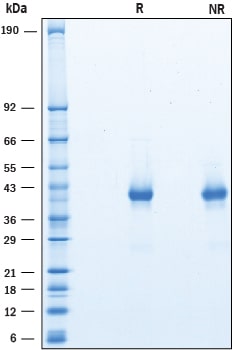

SDS-PAGE Recombinant Human OX40/TNFRSF4 His-tag Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Human OX40/TNFRSF4 was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 40 - 44 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: OX40

OX40 (CD134; TNFRSF4) is a T cell co-stimulatory molecule of the TNF receptor superfamily that coordinates with other co-stimulators (CD28, CD40, CD30, CD27 and 4-1BB) to manage the activation of the immune response (1-3). Human OX40 is a 48 kDa type I transmembrane glycoprotein with a 28 amino acid (aa) signal sequence, a 185 aa extracellular domain (ECD) that contains a cysteine-rich region, a 20 aa transmembrane segment, and a 41 aa cytoplasmic domain (4). The ECD of human OX40 shares 63% sequence identity with the ECD of mouse and rat OX40. OX40 is up-regulated on CD4+ and CD8+ T cells upon engagement of the TCR by antigen presenting cells along with co-stimulation by CD40-CD40 Ligand and CD28-B7 (5, 6). OX40 Ligand is primarily expressed on antigen presenting cells (5). OX40 Ligand engagement of OX40 on activated CD4+ T cells results in increased T cell survival, proliferation, and cytokine production. It also inhibits the conversion of effector T cells into immunosuppressive regulatory T cells (Tregs) and can promote the maintenance of and recall response in memory T cells (3, 7-10). OX40 is constitutively expressed on Tregs and enhances the sensitivity of Tregs to IL-2, thus promoting Treg proliferation. OX40 has also been shown to decrease the cells’ immunosuppressive activity on effector T cells (11-14). OX40-OX40 Ligand signaling is involved in allergic airway inflammation, graft-versus-host disease and autoimmune disease (6, 15, 16). Mutations in OX40 and OX40 Ligand are associated with cardiovascular disease (17, 18).

References
  1. Hori, T. (2006) Int. J. Hematol. 83:17.
  2. Latza, U. et al. (1994) Eur. J. Immunol. 24:677.
  3. Salek-Ardakani, S. et al. (2003) J. Exp. Med. 198:315.
  4. al-Shamkhani, A. et al. (1996) Eur. J. Immunol. 26:1695.
  5. Moran, A.E. et al. (2013) Curr. Opin. Immunol. 25:230.
  6. Gramaglia, I. et al. (1998) J. Immunol. 161:6510.
  7. Xiao, X. et al. (2008) J. Immunol. 181:3193.
  8. So, T. and M. Croft (2007) J. Immunol. 179:1427.
  9. Mousavi, S.F. et al. (2008) J. Immunol. 181:5990.
  10. Bansal-Pakala, P. et al. (2001) Nat. Med. 7:907.
  11. Piconese, S. et al. (2010) Eur. J. Immunol. 40:2902.
  12. Griseri, T. et al. (2010) J. Exp. Med. 207:699.
  13. Xiao, X. et al. (2012) J. Immunol. 188:892.
  14. Vu, M.D. et al. (2007) Blood 110:2501.
  15. Damayanti, T. et al. (2010) Am. J. Respir. Crit. Care Med. 181:688.
  16. Xiao, X. et al. (2012) Nat. Immunol. 13:981.
  17. Nakano, M. et al. (2010) Cardiovasc. Res. 88:539.
  18. Ishii, N. et al. (2010) Adv. Immunol. 105:63.
  19. Godfrey, W.R. et al. (1994) J. Exp. Med. 180:757
Entrez Gene IDs
7293 (Human); 22163 (Mouse); 25572 (Rat); 102145978 (Cynomolgus Monkey)
Alternate Names
ACT-135; ACT35 antigen; ACT35ATC35 antigen; CD134 antigen; CD134; Ly-70; OX40 cell surface antigen; OX40 homologue; OX40; OX40L receptor; OX40lymphoid activation antigene ACT35; TAX transcriptionally-activated glycoprotein 1 receptor; tax-transcriptionally activated glycoprotein 1 receptor; TNFRSF4; tumor necrosis factor receptor superfamily member 4; tumor necrosis factor receptor superfamily, member 4; Txgp1; TXGP1L; TXGP1LOX40 antigen
