Recombinant Human SIRP alpha/CD172a Alexa Fluor® 488 Protein

Catalog #: AFG4546 Datasheet / COA / SDS

Fc Chimera

Catalog #	Availability	Size / Price	Qty
AFG4546-020

2 Images

All SIRP alpha/CD172a Proteins and Enzymes

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human SIRP alpha/CD172a Alexa Fluor® 488 Protein Summary

Product Specifications

Purity

>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

Activity

Measured by flow cytometry for its ability to bind Human SIRP alpha /CD172a Antibody conjugated fluorescent beads at 0.313‑1.25 µg/mL (100 µL/well).
Please Note: Optimal dilutions should be determined by each laboratory for each application.

Source

Chinese Hamster Ovary cell line, CHO-derived human SIRP alpha/CD172a protein

Human SIRP alpha (Gly27-Arg370) & (Glu31-Arg370) Accession # NP_542970.1	IEGRMD	Human IgG₁ (Pro100-Lys330)
N-terminus		C-terminus

Accession #

NP_542970.1

N-terminal Sequence
Analysis

Gly27 & Glu31

Structure / Form

Disulfide-linked homodimer

Labeled with Alexa Fluor® 488 via amines

Excitation Wavelength: 488 nm

Emission Wavelength: 515-545 nm

Predicted Molecular Mass

64 kDa (monomer)

SDS-PAGE

70-105 kDa, under reducing conditions.

Product Datasheets

AFG4546

Product Datasheet

COA

SDS

AFG4546

Formulation	Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping	The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 6 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after opening. 3 months, -20 to -70 °C under sterile conditions after opening.

Scientific Data

Flow Cytometry

View Larger

Fluorescent beads conjugated to Human SIRP alpha /CD172a Antibody were stained with (A) Recombinant Human SIRP alpha /CD172aFc Chimera Alexa Fluor® 488 (Catalog # AFG4546, filled histogram) or (B) unstained (open histogram).

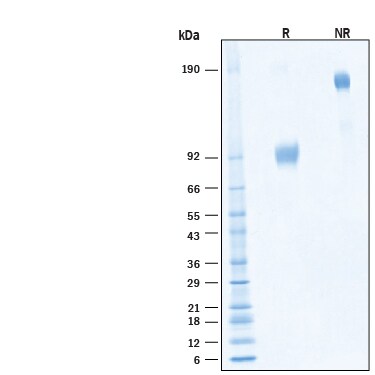

SDS-PAGE

View Larger

2 μg/lane of Recombinant Human SIRP alpha /CD172aFc Chimera Alexa Fluor® 488 Protein (Catalog # AFG4546) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 70-105 kDa and 140-210 kDa, respectively.

Reconstitution Calculator

Background: SIRP alpha/CD172a

Signal regulatory protein alpha (SIRP alpha, designated CD172a), also called SHPS-1 (SHP substrate 1) and previously, MyD-1 (Myeloid/Dendritic-1), is a monomeric ~90 kDa type I transmembrane glycoprotein that belongs to the SIRP/SHPS (CD172) family of the immunoglobulin superfamily (1 - 4). SIRPs are paired receptors, with similar extracellular domains but differing C-termini and functions (1, 2). The 503 amino acid (aa) human SIRP alpha contains a 342 aa extracellular domain (ECD), with one V-type, and two C1 type Ig domains, and three potential N glycosylation sites. It has a 110 aa cytoplasmic sequence with ITIM motifs that recruit tyrosine phosphatases SHP-1 and SHP-2 when phosphorylated (4). Human SIRP alpha has more than 40 described polymorphisms, including the prominent BIT (Brain Ig like molecule with Tyrosine-based activation motifs, also called SIRP alpha ₂ or PTPNS) (5). One reported isoform lacks aa 1 - 101, which eliminates most of the V type Ig domain. Human SIRP alpha ECD shares 61%, 60%, 71%, 72% and 73% aa identity with mouse, rat, porcine, bovine and equine SIRP alpha, respectively; it shares 84% and 76% aa identity with human SIRP beta 1 and SIRP gamma, respectively (2). SIRP alpha is expressed mainly on myeloid cells, including macrophages, neutrophils, dendritic and Langerhans cells (3 - 6). It is also found on neurons, smooth muscle and endothelial cells (7 - 9). SIRP alpha shows adhesion to the ubiquitous CD47/IAP (integrin associated protein), while SIRP gamma binds more weakly and SIRP alpha 1 does not bind at all (1, 2). Mouse and human SIRP alpha -CD47 binding only cross-reacts for specific polymorphisms and influences engraftment of xenotransplanted stem cells (6, 10). SIRP alpha engagement generally produces a negative regulatory signal (4). Low SIRP alpha recognition of CD47, which occurs on aged erythrocytes or platelets or xenogenic cells, promotes clearance of CD47^lowcells from circulation (11, 13). SIRP alpha recognition of surfactants SP-A and SP-D in the lung can inhibit alveolar macrophage cytokine production (14). The CD47 integrin-SIRP alpha interaction is reported to promote macrophage fusion during osteoclastogenesis (15).

References

Barclay, A.N. & M.H. Brown (2006) Nat. Rev. Immunol. 6:457.
vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
Liu, Y. et al. (2005) J. Biol. Chem. 280:36132.
Kharitonenkov, A. et al. (1997) Nature 386:181.
Swissprot Accession # P78324.
Miyashita, M. et al. (2004) Mol. Biol. Cell 15:3950.
Wang, X.X. & K.H. Pfenninger (2005) J. Cell Sci. 119:172.
Maile, L.A. et al. (2003) Mol. Biol. Cell 14:3519.
Johansen, M.L. & E.J. Brown (2007) J. Biol. Chem. 282:24219.
Takenaka, K. et al. (2007) Nat. Immunol. 8:1313.
Ishikawa-Sekigami, T. et al. (2006) Biochem. Biophys. Res. Commun. 343:1197.
Olsson, M. et al. (2005) Blood 105:3577.
Ide, K. et al. (2007) Proc. Natl. Acad. Sci. USA 104:5062.
Gardai, S.J. et al. (2003) Cell 115:13.
Lundberg, P. et al. (2007) Biochem. Biophys. Res. Commun. 352:444.

Long Name

Signal-regulatory Protein alpha

Entrez Gene IDs

140885 (Human); 19261 (Mouse); 25528 (Rat); 494566 (Porcine); 609452 (Canine); 101926317 (Cynomolgus Monkey)

Alternate Names

BIT; BITbrain-immunoglobulin-like molecule with tyrosine-based activation motifs; Brain Ig-like molecule with tyrosine-based activation motifs; CD172 antigen-like family member A; CD172a antigen; CD172a; Inhibitory receptor SHPS-1; Macrophage fusion receptor; MFR; MFRtyrosine phosphatase SHP substrate 1; MyD-1 antigen; MYD1; MYD-1; P84; protein tyrosine phosphatase, non-receptor type substrate 1; PTPNS1; SHP substrate 1; SHPS1; SHPS-1; SHPS1CD172A; signal-regulatory protein alpha; Signal-regulatory protein alpha-1; Signal-regulatory protein alpha-2; Signal-regulatory protein alpha-3; SIRP alpha; SIRPA; SIRPalpha; Sirp-alpha-1; SIRPalpha2; Sirp-alpha-2; Sirp-alpha-3; SIRPtyrosine-protein phosphatase non-receptor type substrate 1
