Recombinant Human SIRP alpha/CD172a His-tag Protein, CF

Catalog #: 9378-SA
2 Citations Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
9378-SA-050
Recombinant Human SIRP alpha/CD172a His-tag Protein Bioactivity
2 Images
Product Details
Citations (2)
FAQs
Supplemental Products
Reviews
Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human SIRP alpha/CD172a His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human SIRP alpha /CD172a His-tag is coated at 0.5 μg/mL, 100 μL/well, Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) binds with an ED50 of 0.04-0.24 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human SIRP alpha/CD172a protein
Gly27 & Glu31-Arg370, with a C-terminal 6-His tag
Accession #
NP_542970.1
N-terminal Sequence
Analysis
Gly27 & Glu31
Predicted Molecular Mass
38 kDa
SDS-PAGE
44-63 kDa, reducing conditions

Product Datasheets

You must select a language.

x

9378-SA

Product Datasheet
COA
SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

9378-SA

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity Recombinant Human SIRP alpha/CD172a His-tag Protein Bioactivity View Larger

When Recombinant Human SIRP alpha/CD172a (Catalog # 9378-SA) is immobilized at 0.5 µg/mL, 100 µL/well, Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) binds with an ED50 of 0.04-0.24 µg/mL.

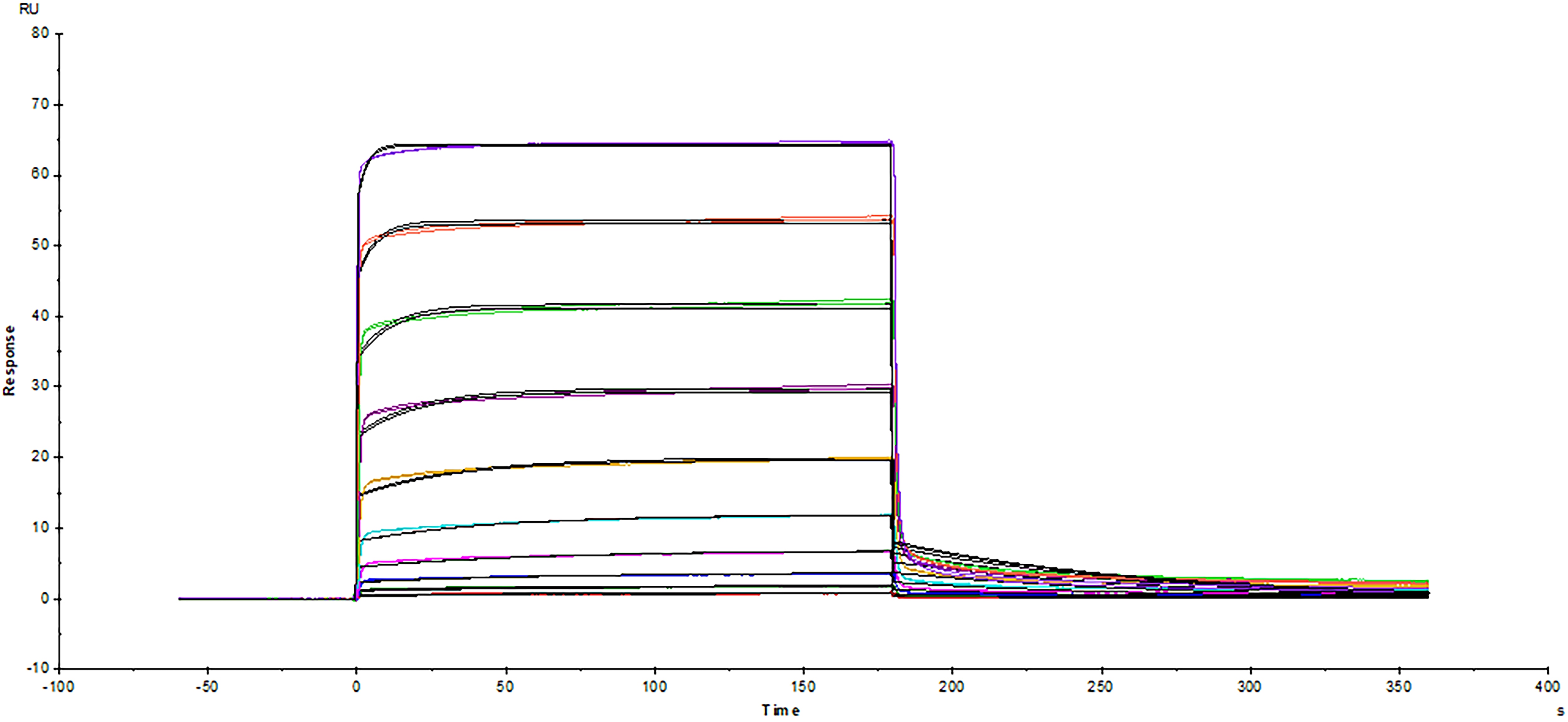

Surface Plasmon Resonance (SPR) Surface plasmon resonance sensorgram of Avi-tag biotinylated human CD47 protein binding to human SIRP alpha View Larger

Avi-tag Biotinylated Recombinant Human CD47 Fc protein (AVI4670) was immobilized on a Biacore Sensor Chip CM5 via the Avi-tag biotin, and binding to Recombinant Human SIRP alpha His protein (Catalog # 9378-SA) was measured at a concentration range between 6.85 nM and 3.51 µM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of KD=0.134 µM.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: SIRP alpha/CD172a

Signal regulatory protein alpha (SIRP alpha, designated CD172a), also called SHPS-1 (SHP substrate 1) and previously, MyD-1 (Myeloid/Dendritic-1), is a monomeric ~90 kDa type I transmembrane glycoprotein that belongs to the SIRP/SHPS (CD172) family of the immunoglobulin superfamily (1-4). SIRPs are paired receptors, with similar extracellular domains but differing C-termini and functions (1, 2). The 503 amino acid (aa) human SIRP alpha contains a 342 aa extracellular domain (ECD), with one V-type, and two C1 type Ig domains, and three potential N glycosylation sites. It has a 110 aa cytoplasmic sequence with ITIM motifs that recruit tyrosine phosphatases SHP-1 and SHP-2 when phosphorylated (4). Human SIRP alpha has more than 40 described polymorphisms, including the prominent BIT (Brain Ig like molecule with Tyrosine-based activation motifs, also called SIRP alpha 2 or PTPNS) (5). One reported isoform lacks aa 1-101, which eliminates most of the V type Ig domain. Human SIRP alpha ECD shares 61%, 60%, 71%, 72% and 73% aa identity with mouse, rat, porcine, bovine and equine SIRP alpha, respectively; it shares 84% and 76% aa identity with human SIRP beta 1 and SIRP gamma, respectively (2). SIRP alpha is expressed mainly on myeloid cells, including macrophages, neutrophils, dendritic and Langerhans cells (3-6). It is also found on neurons, smooth muscle and endothelial cells (7-9). SIRP alpha shows adhesion to the ubiquitous CD47/IAP (integrin associated protein), while SIRP gamma binds more weakly and SIRP alpha 1 does not bind at all (1, 2). Mouse and human SIRP alpha -CD47 binding only cross-reacts for specific polymorphisms and influences engraftment of xenotransplanted stem cells (6, 10). SIRP alpha engagement generally produces a negative regulatory signal (4). Low SIRP alpha recognition of CD47, which occurs on aged erythrocytes or platelets or xenogenic cells, promotes clearance of CD47low cells from circulation (11, 13). SIRP alpha recognition of surfactants SP-A and SP-D in the lung can inhibit alveolar macrophage cytokine production (14). The CD47 integrin-SIRP alpha interaction is reported to promote macrophage fusion during osteoclastogenesis (15).

References
  1. Barclay, A.N. & M.H. Brown (2006) Nat. Rev. Immunol. 6:457.
  2. vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
  3. Liu, Y. et al. (2005) J. Biol. Chem. 280:36132.
  4. Kharitonenkov, A. et al. (1997) Nature 386:181.
  5. Swissprot Accession # P7832.
  6. Miyashita, M. et al. (2004) Mol. Biol. Cell 15:3950.
  7. Wang, X.X. & K.H. Pfenninger (2005) J. Cell Sci. 119:172.
  8. Maile, L.A. et al. (2003) Mol. Biol. Cell 14:3519.
  9. Johansen, M.L. & E.J. Brown (2007) J. Biol. Chem. 282:24219.
  10. Takenaka, K. et al. (2007) Nat. Immunol. 8:1313.
  11. Ishikawa-Sekigami, T. et al. (2006) Biochem. Biophys. Res. Commun. 343:1197.
  12. Olsson, M. et al. (2005) Blood 105:3577.
  13. Ide, K. et al. (2007) Proc. Natl. Acad. Sci. USA 104:5062.
  14. Gardai, S.J. et al. (2003) Cell 115:13.
  15. Lundberg, P. et al. (2007) Biochem. Biophys. Res. Commun. 352:444.
Long Name
Signal-regulatory Protein alpha
Entrez Gene IDs
140885 (Human); 19261 (Mouse); 25528 (Rat); 494566 (Porcine); 609452 (Canine); 101926317 (Cynomolgus Monkey)
Alternate Names
BIT; BITbrain-immunoglobulin-like molecule with tyrosine-based activation motifs; Brain Ig-like molecule with tyrosine-based activation motifs; CD172 antigen-like family member A; CD172a antigen; CD172a; Inhibitory receptor SHPS-1; Macrophage fusion receptor; MFR; MFRtyrosine phosphatase SHP substrate 1; MyD-1 antigen; MYD1; MYD-1; P84; protein tyrosine phosphatase, non-receptor type substrate 1; PTPNS1; SHP substrate 1; SHPS1; SHPS-1; SHPS1CD172A; signal-regulatory protein alpha; Signal-regulatory protein alpha-1; Signal-regulatory protein alpha-2; Signal-regulatory protein alpha-3; SIRP alpha; SIRPA; SIRPalpha; Sirp-alpha-1; SIRPalpha2; Sirp-alpha-2; Sirp-alpha-3; SIRPtyrosine-protein phosphatase non-receptor type substrate 1

Citations for Recombinant Human SIRP alpha/CD172a His-tag Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Filter by:

  1. A New Serum Macrophage Checkpoint Biomarker for Innate Immunotherapy: Soluble Signal-Regulatory Protein Alpha (sSIRPalpha)
    Authors: YV Vladimirov, MK Mølmer, KW Antonsen, N Møller, N Rittig, MC Nielsen, HJ Møller
    Biomolecules, 2022-07-04;12(7):.
    Species: Human
    Sample Types: Recombinant Protein
    Applications: ELISA Standard
  2. CD20-selective inhibition of CD47-SIRP? don't eat me signaling with a bispecific antibody-derivative enhances the anticancer activity of daratumumab, alemtuzumab and obinutuzumab
    Authors: PE van Bommel, Y He, I Schepel, MAJM Hendriks, VR Wiersma, RJ van Ginkel, T van Meerte, E Ammatuna, G Huls, DF Samplonius, W Helfrich, E Bremer
    Oncoimmunology, 2017-10-31;7(2):e1386361.
    Species: Human
    Sample Types: Whole Cells
    Applications: Bioassay
