Recombinant Human SIRP alpha His Alexa Fluor® 647 Protein

Catalog #: AFR9378 Datasheet / COA / SDS

His-tag

Catalog #	Availability	Size / Price	Qty
AFR9378-020

2 Images

All SIRP alpha/CD172a Proteins and Enzymes

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human SIRP alpha His Alexa Fluor® 647 Protein Summary

Product Specifications

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

Activity

Measured by flow cytometry for its ability to bind Human SIRP alpha /CD172a Antibody conjugated fluorescent beads at 0.625-2.50 µg/mL (100 µL/well).
Please Note: Optimal dilutions should be determined by each laboratory for each application.

Source

Chinese Hamster Ovary cell line, CHO-derived human SIRP alpha/CD172a protein
Gly27 & Glu31-Arg370, with a C-terminal 6-His tag

Accession #

NP_542970.1

N-terminal Sequence
Analysis

Gly27 & Glu31

Structure / Form

Labeled with Alexa Fluor® 647

Excitation Wavelength: 650 nm

Emission Wavelength: 668 nm

Predicted Molecular Mass

38 kDa

SDS-PAGE

44-63 kDa, under reducing conditions.

Product Datasheets

AFR9378

Product Datasheet

COA

SDS

AFR9378

Formulation	Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping	The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 6 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after opening. 3 months, -20 to -70 °C under sterile conditions after opening.

Scientific Data

Flow Cytometry

View Larger

Antibody were stained with (A) Recombinant Human SIRP alpha /CD172a His-tag Alexa Fluor® 647 (Catalog # AFR9378, filled histogram) or (B) unstained (open histogram).

SDS-PAGE

View Larger

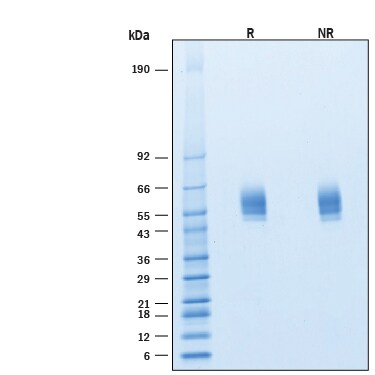

2 μg/lane of Recombinant Human SIRP alpha /CD172a His-tag Alexa Fluor® 647 Protein (Catalog # AFR9378) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 44-63 kDa.

Reconstitution Calculator

Background: SIRP alpha/CD172a

Signal regulatory protein alpha (SIRP alpha, designated CD172a), also called SHPS-1 (SHP substrate 1) and previously, MyD-1 (Myeloid/Dendritic-1), is a monomeric ~90 kDa type I transmembrane glycoprotein that belongs to the SIRP/SHPS (CD172) family of the immunoglobulin superfamily (1-4). SIRPs are paired receptors, with similar extracellular domains but differing C-termini and functions (1, 2). The 503 amino acid (aa) human SIRP alpha contains a 342 aa extracellular domain (ECD), with one V-type, and two C1 type Ig domains, and three potential N glycosylation sites. It has a 110 aa cytoplasmic sequence with ITIM motifs that recruit tyrosine phosphatases SHP-1 and SHP-2 when phosphorylated (4). Human SIRP alpha has more than 40 described polymorphisms, including the prominent BIT (Brain Ig like molecule with Tyrosine-based activation motifs, also called SIRP alpha 2 or PTPNS) (5). One reported isoform lacks aa 1-101, which eliminates most of the V type Ig domain. Human SIRP alpha ECD shares 61%, 60%, 71%, 72% and 73% aa identity with mouse, rat, porcine, bovine and equine SIRP alpha, respectively; it shares 84% and 76% aa identity with human SIRP beta 1 and SIRP gamma, respectively (2). SIRP alpha is expressed mainly on myeloid cells, including macrophages, neutrophils, dendritic and Langerhans cells (3-6). It is also found on neurons, smooth muscle and endothelial cells (7-9). SIRP alpha shows adhesion to the ubiquitous CD47/IAP (integrin associated protein), while SIRP gamma binds more weakly and SIRP alpha 1 does not bind at all (1, 2). Mouse and human SIRP alpha -CD47 binding only cross-reacts for specific polymorphisms and influences engraftment of xenotransplanted stem cells (6, 10). SIRP alpha engagement generally produces a negative regulatory signal (4). Low SIRP alpha recognition of CD47, which occurs on aged erythrocytes or platelets or xenogenic cells, promotes clearance of CD47low cells from circulation (11, 13). SIRP alpha recognition of surfactants SP-A and SP-D in the lung can inhibit alveolar macrophage cytokine production (14). The CD47 integrin-SIRP alpha interaction is reported to promote macrophage fusion during osteoclastogenesis (15).

References

Barclay, A.N. & M.H. Brown (2006) Nat. Rev. Immunol. 6:457.
vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
Liu, Y. et al. (2005) J. Biol. Chem. 280:36132.
Kharitonenkov, A. et al. (1997) Nature 386:181.
Swissprot Accession # P7832.
Miyashita, M. et al. (2004) Mol. Biol. Cell 15:3950.
Wang, X.X. & K.H. Pfenninger (2005) J. Cell Sci. 119:172.
Maile, L.A. et al. (2003) Mol. Biol. Cell 14:3519.
Johansen, M.L. & E.J. Brown (2007) J. Biol. Chem. 282:24219.
Takenaka, K. et al. (2007) Nat. Immunol. 8:1313.
Ishikawa-Sekigami, T. et al. (2006) Biochem. Biophys. Res. Commun. 343:1197.
Olsson, M. et al. (2005) Blood 105:3577.
Ide, K. et al. (2007) Proc. Natl. Acad. Sci. USA 104:5062.
Gardai, S.J. et al. (2003) Cell 115:13.
Lundberg, P. et al. (2007) Biochem. Biophys. Res. Commun. 352:444.

Long Name

Signal-regulatory Protein alpha

Entrez Gene IDs

140885 (Human); 19261 (Mouse); 25528 (Rat); 494566 (Porcine); 609452 (Canine); 101926317 (Cynomolgus Monkey)

Alternate Names

BIT; BITbrain-immunoglobulin-like molecule with tyrosine-based activation motifs; Brain Ig-like molecule with tyrosine-based activation motifs; CD172 antigen-like family member A; CD172a antigen; CD172a; Inhibitory receptor SHPS-1; Macrophage fusion receptor; MFR; MFRtyrosine phosphatase SHP substrate 1; MyD-1 antigen; MYD1; MYD-1; P84; protein tyrosine phosphatase, non-receptor type substrate 1; PTPNS1; SHP substrate 1; SHPS1; SHPS-1; SHPS1CD172A; signal-regulatory protein alpha; Signal-regulatory protein alpha-1; Signal-regulatory protein alpha-2; Signal-regulatory protein alpha-3; SIRP alpha; SIRPA; SIRPalpha; Sirp-alpha-1; SIRPalpha2; Sirp-alpha-2; Sirp-alpha-3; SIRPtyrosine-protein phosphatase non-receptor type substrate 1

Product Specific Notices

This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
