Recombinant Human SIRP gamma/CD172g His-tag Protein, CF

Catalog # Availability Size / Price Qty
9999-SB-050
Recombinant Human SIRP gamma/CD172g His-tag Protein Binding Activity
2 Images
Product Details
Citations (1)
FAQs
Reviews

Recombinant Human SIRP gamma/CD172g His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) is immobilized at 0.5 µg/mL (100 µL/well), Recombinant Human SIRP gamma /CD172g binds with an ED50 of 0.6-3.6 μg/mL.
Source
Human embryonic kidney cell, HEK293-derived human SIRP gamma/CD172g protein
Glu29-Pro360, with a C-terminal 6-His tag
Accession #
N-terminal Sequence
Analysis
Glu29
Predicted Molecular Mass
38 kDa
SDS-PAGE
38-48 kDa, reducing conditions

Product Datasheets

You must select a language.

x

9999-SB

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

9999-SB

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, ≤ -20 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity Recombinant Human SIRP gamma/CD172g His-tag Protein Binding Activity View Larger

When Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) is immobilized at 0.5 µg/mL, Recombinant Human SIRP gamma/CD172g (Catalog # 9999-SB) binds with an ED50 of 0.6-3.6 µg/mL.

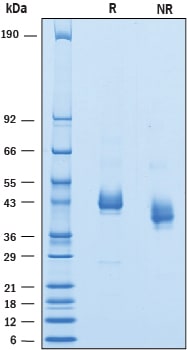

SDS-PAGE Recombinant Human SIRP gamma/CD172g His-tag Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Human SIRP gamma /CD172g was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 38-48 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: SIRP gamma/CD172g

Signal regulatory protein gamma (SIRP gamma, designated CD172g), also called SIRP beta 2, is a monomeric 45-47 kDa type I transmembrane protein belonging to the SIRP/SHPS (CD172) family of the Ig superfamily (1-5). SIRP members are "paired receptors" with homology in the extracellular domain but variability in the C‑terminus and signaling function (1, 2). The 387 amino acid (aa) SIRP gamma  sequence contains a 28 aa potential signal sequence, a 332 aa extracellular domain (ECD) with four potential N‑glycosylation sites, a 23 aa transmembrane domain and a 4 aa cytoplasmic sequence. SIRP gamma contains one V-type Ig‑like domain that contains a J‑like sequence and two C1-type Ig‑like domains within its ECD (1, 2). Isoforms that lack one (isoform 2, 276 aa) or two (isoform 3, 170 aa) membrane-proximal C‑type Ig-like domains have been described (5). Within the ECD, human SIRP gamma isoform 1 shares 78% aa identity with human SIRP beta 1, and appears to have structurally similar orthologs only in rhesus monkey and chimpanzee (100% and 91% aa identity, respectively) (2). SIRP gamma is the only SIRP known to be expressed on T cells, CD56 bright NK cells and activated NK cells; it is not expressed on myeloid cells (5, 6). It shows adhesion to CD47, but at lower affinity than SIRP alpha (6). Expression of SIRP gamma on T cells suggests a role as an accessory protein interacting with CD47‑expressing antigen presenting cells (5, 6). Unlike SIRP alpha that has cytoplasmic ITIM domains, and SIRP beta 1 that interacts with DAP-12, SIRP gamma does not contain any obvious signaling mechanism (1, 2, 6). However, SIRP gamma -mediated adhesion appears to promote antigen-specific T cell proliferation and co-stimulate T cell activation (5). Engagement of CD47 by SIRP gamma was shown to induce apoptosis on T-cell and monocyte cell lines (6).

References
  1. Barclay, A.N. & M.H. Brown (2006) Nat. Rev. Immunol. 6:457.
  2. vanBeek, E.M. et al. (2005) J. Immunol. 175:7781.
  3. van den Berg, T.K. et al. (2005) J. Immunol. 175:7788.
  4. Ichigotani, Y. et al. (2000) J. Hum. Genet. 45:378.
  5. Piccio, L. et al. (2005) Blood 105:2421.
  6. Brooke, G. et al. (2004) J. Immunol. 173:2562.
Long Name
Signal-regulatory Protein gamma
Entrez Gene IDs
55423 (Human); 102138723 (Cynomolgus Monkey)
Alternate Names
bA77C3.1; CD172g antigen; CD172g; FLJ42230; signal-regulatory protein beta 2; Signal-regulatory protein beta-2; signal-regulatory protein gamma; SIRP beta 2; SIRP gamma; SIRP-B2; SIRPB2CD172 antigen-like family member B; SIRP-beta-2; SIRPG; SIRPgamma; SIRP-gamma

Citation for Recombinant Human SIRP gamma/CD172g His-tag Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. A New Serum Macrophage Checkpoint Biomarker for Innate Immunotherapy: Soluble Signal-Regulatory Protein Alpha (sSIRPalpha)
    Authors: YV Vladimirov, MK Mølmer, KW Antonsen, N Møller, N Rittig, MC Nielsen, HJ Møller
    Biomolecules, 2022-07-04;12(7):.
    Species: Human
    Sample Types: Recombinant Protein
    Applications: ELISA Standard
