Recombinant Human Sonic Hedgehog/Shh, N-Terminus GMP, CF

Catalog #: 1314-GMP Datasheet / COA / SDS

Animal-Free

Catalog #	Availability	Size / Price	Qty
1314-GMP-025
1314-GMP-01M

Recombinant Human Sonic Hedgehog/Shh, N-Terminus GMP Bioactivity

2 Images

All Sonic Hedgehog/Shh Proteins and Enzymes

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human Sonic Hedgehog/Shh, N-Terminus GMP, CF Summary

Product Specifications

Purity

>97%, by SDS-PAGE with silver staining, under reducing conditions. Intact mass analysis of recombinant human sonic hedgehog confirms the predicted molecular mass of 20425 Da

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

Activity

Measured by its ability to induce alkaline phosphatase production by C3H10T1/2 mouse embryonic fibroblast cells. Nakamura, T. et al. (1997) Biochem. Biophys. Res. Commun. 237:465. The ED₅₀ for this effect is <5 μg/mL.

Source

E. coli-derived human Sonic Hedgehog/Shh protein
Cys24-Gly197, with a C-terminal 6-His tag
Produced using non-animal reagents in an animal-free laboratory.
Manufactured and tested under cGMP guidelines.

Accession #

Q15465.1

N-terminal Sequence
Analysis

(Cys₂₄)-Gly-Pro-Gly-Arg-Gly-Phe-Gly-Lys-Arg

Predicted Molecular Mass

20 kDa

SDS-PAGE

22 kDa, reducing conditions

Product Datasheets

1314-GMP

Product Datasheet

COA

SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

1314-GMP

Formulation	Lyophilized from a 0.2 μm filtered solution in NaH₂PO₄, NaCl and DTT.
Reconstitution	Reconstitute at 250 μg/mL in sterile deionized water.
Shipping	The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. A minimum of 12 months when stored at ≤ -20 °C as supplied. Refer to lot specific COA for the Use by Date. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, ≤ -20 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity

View Larger

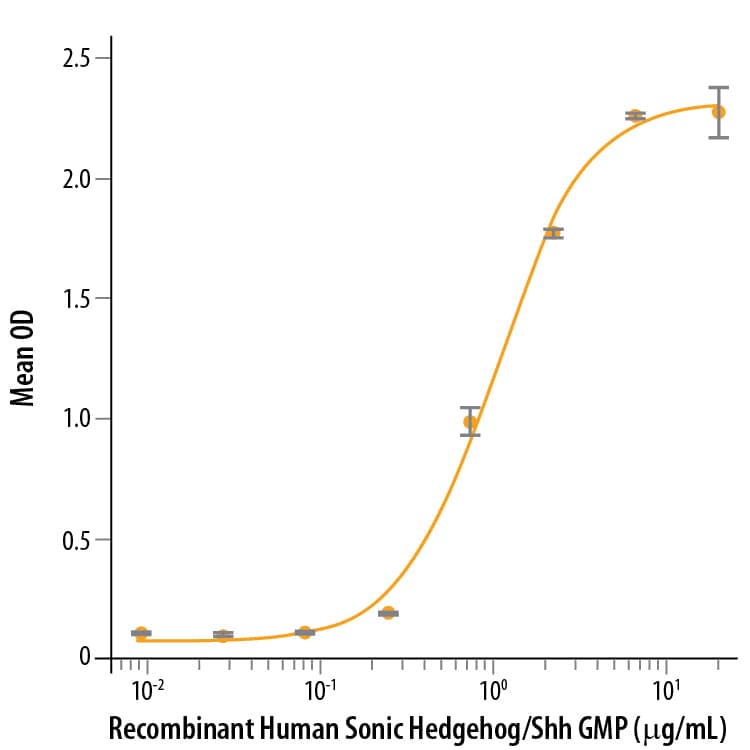

GMP-grade Recombinant Human Sonic Hedgehog/Shh, N-Terminus (Catalog # 1314-GMP) induces alkaline phosphatase production by the C3H10T1/2 mouse embryonic fibroblast cell line. The ED₅₀ for this effect is <5 ug/mL.

SDS-PAGE

View Larger

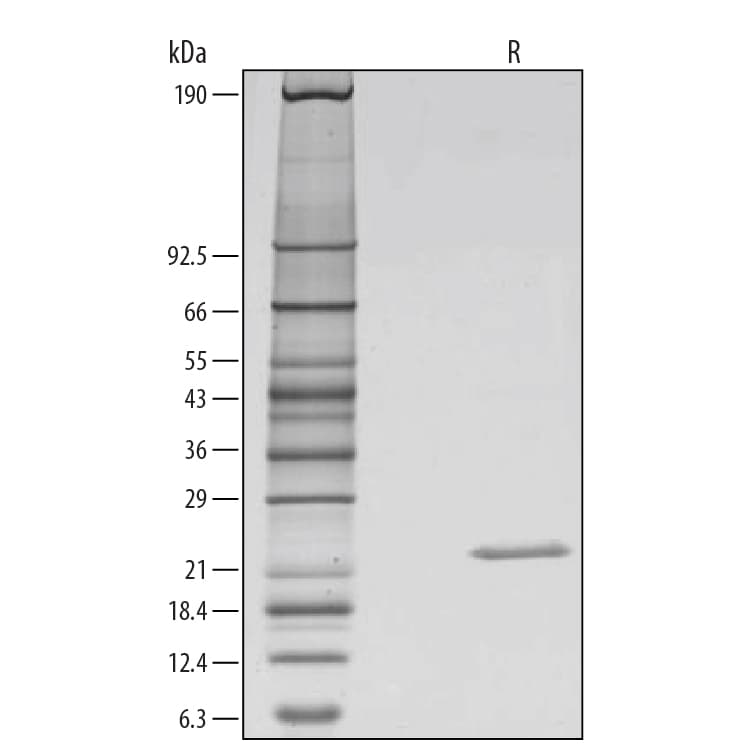

1 μg/lane of GMP-grade Recombinant Human Sonic Hedgehog/Shh, N-Terminus (Catalog # 1314-GMP) was resolved with SDS-PAGE under reducing (R) conditions and visualized by silver staining, showing a single band at 22 kDa.

Reconstitution Calculator

Background: Sonic Hedgehog/Shh

Sonic Hedgehog (Shh) is expressed in embryonic tissues that are critical for the patterning of the developing central nervous system, somite, and limb. It is also involved in whisker, hair, foregut, tooth, and bone development. Shh regulates neural and hematopoietic stem cell fate and is important for thymocyte differentiation and proliferation as well as T cell determination. In adult tissue Shh is associated with cancer development and tissue remodeling following injury (1-3). Human Shh encodes a 462 amino acid (aa) precursor protein that is autocatalytically processed to yield a non-glycosylated 19 kDa N-terminal fragment (Shh-N) and a glycosylated 25 kDa C-terminal protein (Shh-C) (4). Shh-C, which is responsible for the intramolecular processing of Shh, is rapidly degraded following Shh proteolysis (5). Shh-N is highly conserved, sharing >98% aa identity between mouse, human, rat, canine, porcine, and chicken Shh-N. Shh-N can be palmitoylated at its
N-terminal cysteine and modified by cholesterol addition at its C-terminus (6). These modifications contribute to the membrane tethering of Shh as well as its assembly into various sized multimers (6-9). Lipid modification and multimerization greatly increase Shh-N receptor binding affinity and signaling potency (5, 6, 8, 9). Monomeric and multimeric Shh can be released from the plasma membrane by the cooperative action of DISP1, SCUBE2, and TACE/ADAM17 (10-12). Modifications also extend the effective range of Shh functionality and are required for the development of protein gradients important in tissue morphogenesis (9, 13). Canonical signaling of Shh is mediated by a multicomponent receptor complex that includes Patched (PTCH1, PTCH2) and Smoothened (SMO) (14). The binding of Shh to PTCH releases the basal repression of SMO by PTCH. Shh activity can also be regulated through interactions with heparin, glypicans, and membrane-associated Hip (hedgehog interacting protein) (13, 15, 16).

References

Briscoe, J. and P.P. Therond (2013) Mol. Cell. Biol. 14:416.
Aviles, E.C. et al. (2013) Front. Cell. Neurosci. 7:86.
Xie, J. et al. (2013) OncoTargets Ther. 6:1425.
Marigo, V. et al. (1995) Genomics 28:44.
Zeng, X. et al. (2001) Nature 411:716.
Feng, J. et al. (2004) Development 131:4357.
Goetz, J.A. et al. (2006) J. Biol. Chem. 281:4087.
Pepinsky, R.B. et al. (1998) J. Biol. Chem. 273:14037.
Chen, M.-H. et al. (2004) Genes Dev. 18:641.
Etheridge, L.A. et al. (2010) Development 137:133.
Jakobs, P. et al. (2014) J. Cell Sci. 127:1726.
Dierker, T. et al. (2009) J. Biol. Chem. 284:8013.
Lewis, P.M. et al. (2001) Cell 105:599.
Carpenter, D. et al. (1998) Proc. Natl. Acad. Sci. USA 95:13630.
Filmus, J. and M. Capurro (2014) Matrix Biol. 35:248.
Chuang, P.-T. and A.P. McMahon (1999) Nature 397:617.

Entrez Gene IDs

6469 (Human); 20423 (Mouse)

Alternate Names

HHG1; HHG-1; HLP3; HPE3; MCOPCB5; MCOPCB5sonic hedgehog (Drosophila) homolog; Shh; ShhNC; SMMCI; SMMCIsonic hedgehog homolog (Drosophila); sonic hedgehog homolog; sonic hedgehog protein; Sonic Hedgehog; TPT; TPTPS

Manufacturing Specifications

GMP Proteins
R&D Systems, a Bio-Techne Brand's GMP proteins are produced according to relevant sections of the following documents: USP Chapter 1043, Ancillary Materials for Cell, Gene and Tissue-Engineered Products and Eu. Ph. 5.2.12, Raw Materials of Biological Origin for the Production of Cell-based and Gene Therapy Medicinal Products.

R&D Systems' quality focus includes:

Manufactured and tested under an ISO 9001:2015 and ISO 13485:2016 certified quality system
Documented processes and QA control of documentation and process changes
Personnel training programs
Raw material testing and vendor qualification/monitoring
Fully validated equipment, processes and test methods
Equipment calibration schedules using a computerized calibration program
Facility maintenance, safety programs and pest control
Material review process for variances
Monitoring of stability over product shelf-life

R&D Systems strives to provide our customers with the analytical characteristics of each product so that customers may determine whether our products are appropriate for their research. The Certificate of Analysis provided contains the following lot specific information:

N-terminal amino acid analysis, SDS-PAGE analysis, and endotoxin level (as determined by LAL assay) performed on each bulk QC lot, not on individual bottlings of each QC lot
Post-bottling lot-specific bioassay results (compliance with an established range) and results of microbial testing according to USP
Host Cell Protein testing performed by ELISA
Mycoplasma testing by ribosomal RNA hybridization assay

Additional testing and documentation requested by the customer can be arranged at an additional cost.

Production records and facilities are available for examination by appropriate personnel on-site at R&D Systems in Minneapolis, Minnesota USA.

R&D Systems sells GMP grade products for preclinical or clinical ex vivo use. They are not for in vivo use. Please read the following End User Terms prior to using this product.

Animal-Free Manufacturing Conditions
Our dedicated controlled-access animal-free laboratories ensure that at no point in production are the products exposed to potential contamination by animal components or byproducts. Every stage of manufacturing is conducted in compliance with R&D Systems' stringent Standard Operating Procedures (SOPs). Production and purification procedures use equipment and media that are confirmed animal-free.

Production

All molecular biology procedures use animal-free media and dedicated labware.
Dedicated fermentors are utilized in committed animal-free areas.

Purification

Protein purification columns are animal-free.
Bulk proteins are filtered using animal-free filters.
Purified proteins are stored in animal-free containers in a dedicated cold storage room.

Quality Assurance

Low Endotoxin Level.
No impairment of biological activity.
High quality product obtained under stringent conditions.

Please read our complete Animal-Free Statement.
