Recombinant Mouse B7-H2 Fc Chimera Protein, CF

Catalog # Availability Size / Price Qty
158-B7-100
R&D Systems Recombinant Proteins and Enzymes
1 Image
Product Details
Citations (1)
FAQs
Supplemental Products
Reviews (1)

Recombinant Mouse B7-H2 Fc Chimera Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE under reducing conditions and visualized by silver stain
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured in a competitive binding assay. When rmICOS/Fc Chimera (Catalog # 168-CS) is immobilized at 1 µg/mL (100 µL/well), rmB7-H2 inhibits 50% binding of biotinylated rhB7-H2/Fc Chimera (2.5 ng/mL) at the concentration range of 80‑120 ng/mL.
Source
Mouse myeloma cell line, NS0-derived mouse B7-H2 protein
Mouse B7-H2
(Glu47 - Lys279)
Accession # Q9JHJ8
DIEGRMD Human IgG1
(Pro100 - Lys330)
N-terminus C-terminus
Accession #
N-terminal Sequence
Analysis
Glu47
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
53 kDa (monomer)
SDS-PAGE
80-90 kDa, reducing conditions

Product Datasheets

You must select a language.

x

158-B7

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

158-B7

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 100 μg/mL in sterile PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: B7-H2

Mouse B7-H2, also called B7RP-1, B7h, LICOS, and GL50, is a member of the growing B7 family of immune co‑stimulatory proteins. Other family members include B7-1, B7-2, B7-H1 (PD-L1), PD-L2, and B7-H3. B7 proteins are members of the immunoglobulin (Ig) superfamily. The extracellular domains contain 2 Ig-like domains and all members have short cytoplasmic domains. Among the family members, they share about 20 - 25% amino acid identity. Mouse and human B7-H2 share approximately 49% amino acid identity. B7-H2 has been identified as the ligand for ICOS, a member of the CD28 family of co‑stimulatory receptors. Mouse B7-H2 is a 322 amino acid (aa) protein with a putative 46 aa signal peptide, a 233 aa extracellular domain, a 19 aa transmembrane region, and a 24 aa cytoplasmic domain. Mouse B7-H2 is expressed constitutively on resting B cells and at low levels on monocytes. The B7-H2/ICOS interaction appears to play roles in T cell dependent B cell activation and Tdifferentiation.

References
  1. Coyle, A.J. and J.C. Gutierrez-Ramos (2001) Nat. Immunol. 2:203.
  2. Ling, V. et al. (2000) J. Immunol. 164:1653.
  3. Wang, S. et al. (2000) Blood 96:2808.
  4. Brodie, D. et al. (2000) Curr. Biol. 10:333.
  5. Mages, H.W. et al. (2000) Eur. J. Immunol. 30:1040.
  6. Swallow, M.M. et al. (1999) Immunity 11:423.
  7. Yoshinaga, S.K. et al. (1999) Nature 402:827.
Long Name
B7 Homolog 2
Entrez Gene IDs
23308 (Human); 50723 (Mouse); 499415 (Rat); 102132485 (Cynomolgus Monkey)
Alternate Names
B7H2; B7-H2; B7H2B7 homolog 2; B7-H2B7-related protein 1; B7RP-1; B7RP1B7-like protein Gl50; B7RP-1LICOS; CD275 antigen; CD275; GL50; GL50transmembrane protein B7-H2 ICOS ligand; ICOSL; ICOS-L; ICOSLG; inducible T-cell co-stimulator ligand; KIAA0653ICOS ligand

Citation for Recombinant Mouse B7-H2 Fc Chimera Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. ICOS deficiency hampers the homeostasis, development and function of NK cells
    Authors: M Montes-Cas, G Ojeda, L Aragoneses, D López, B de Andrés, ML Gaspar, U Dianzani, JM Rojo, P Portolés
    PLoS ONE, 2019-07-08;14(7):e0219449.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Cell Culture

FAQs

No product specific FAQs exist for this product, however you may

View all Proteins and Enzyme FAQs
Loading...

Reviews for Recombinant Mouse B7-H2 Fc Chimera Protein, CF

Average Rating: 5 (Based on 1 Review)

5 Star
100%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%

Have you used Recombinant Mouse B7-H2 Fc Chimera Protein, CF?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:


Recombinant Mouse B7-H2 Fc Chimera Protein, CF
By Anonymous on 12/13/2017

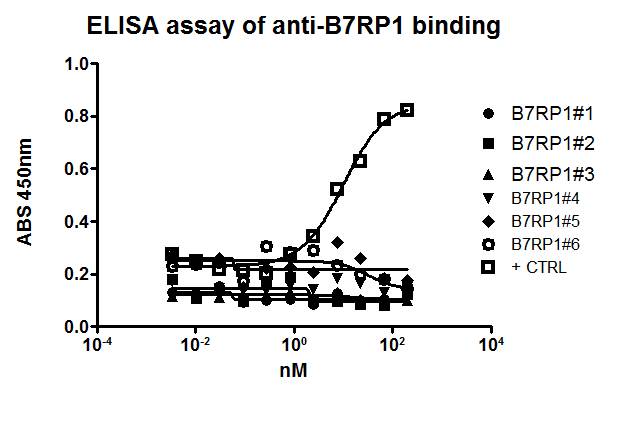

Application: Binding assay/Protein-protein interaction
