Recombinant SARS-CoV-2 B.1.1.529 S1 His-tag Protein, CF

Omicron Variant
Catalog # Availability Size / Price Qty
11070-CV-100
Recombinant SARS-CoV-2 B.1.1.529 Spike S1 Subunit His-tag Protein Binding Activity.
3 Images
Product Details
FAQs
Reviews

Recombinant SARS-CoV-2 B.1.1.529 S1 His-tag Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA with Recombinant Human ACE-2 His-tag (Catalog # 933-ZN).
Source
Human embryonic kidney cell, HEK293-derived sars-cov-2 Spike S1 Subunit protein
SARS-CoV-2 B.1.1.529 Spike S1
(Val16-Pro681)
(Ala67Val, His69del, Val70del, Thr95Ile, Gly142Asp, Val143del, Tyr144del, Tyr145del, Asn211del, Leu212Ile, ins214Glu-Pro-Glu, Gly339Asp, Ser371Leu, Ser373Pro, Ser375Phe, Lys417Asn, Asn440Lys, Gly446Ser, Ser477Asn, Thr478Lys, Glu484Ala, Gln493Arg, Gly496Ser, Gln498Arg, Asn501Tyr, Tyr505His, Thr547Lys, Asp614Gly, His655Tyr, Asn679Lys, Pro681His)
Accession # YP_009724390.1
6-His tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Val16
Predicted Molecular Mass
75 kDa
SDS-PAGE
104-116 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

11070-CV

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

11070-CV

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

Recombinant SARS-CoV-2 B.1.1.529 Spike S1 Subunit His-tag (Catalog # 11070-CV) binds Recombinant Human ACE-2 His-tag (933-ZN) in a functional ELISA.

SDS-PAGE View Larger

2 μg/lane of Recombinant SARS-CoV-2 B.1.1.529 Spike S1 Subunit His-tag Protein (Catalog # 11070-CV) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 104-116 kDa.

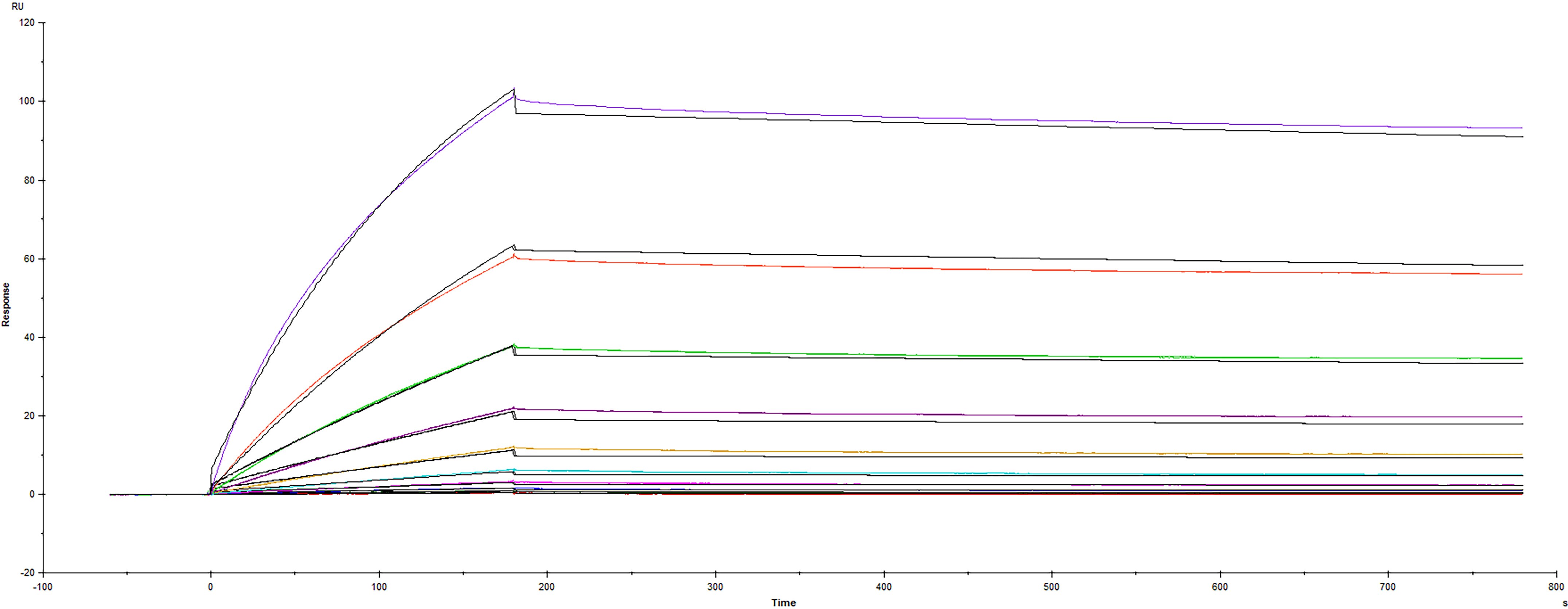

Surface Plasmon Resonance (SPR) View Larger

Recombinant SARS-CoV-2 B.1.1.529 Spike S1 His-tag (Catalog #11070-CV) was immobilized on a Biacore Sensor Chip CM5, and binding to recombinant human ACE-2 (933-ZN) was measured at a concentration range between 0.184 nM and 94.3 nM. The double-referenced sensorgram was fit to a 1:1 binding model to determine the binding kinetics and affinity, with an affinity constant of Kd=1.57 nM.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Spike S1 Subunit

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein(S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1). SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into two distinct peptides, S1 and S2 subunits, is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor, while the S2 subunit is involved with cell fusion (3-5). A metallopeptidase, angiotensin‑converting enzyme 2 (ACE-2), has been identified as a functional receptor for SARS-CoV-2 through interaction with a receptor binding domain (RBD) located at the C-terminus of S1 subunit (6,7). The S1 subunit of SARS-CoV-2 shares 65% amino acid (aa) sequence identity with the S1 subunit of SARS-CoV-1, but only 22% aa sequence identity with the S1 subunit of MERS-CoV. The difference in aa sequence identity is consistent with the finding that SARS and MERS bind different cellular receptors (8). The S Protein of the SARS-CoV-2 virus binds ACE-2 with higher affinity and faster binding kinetics than its SARS-CoV-1 counterpart (9). Before binding to the ACE-2 receptor, structural analysis of the S1 trimer shows that only one of the three RBD domains in the trimeric structure is in the "up" conformation. This is an unstable and transient state that passes between trimeric subunits but is nevertheless an exposed state to be targeted for neutralizing antibody therapy (10). Polyclonal antibodies to the RBD of the SARS-CoV-2 S1 subunit have been shown to inhibit interaction with the ACE-2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (11). There is also promising work showing that the RBD may be used to detect presence of neutralizing antibodies present in a patient's bloodstream, consistent with developed immunity after exposure to the SARS-CoV-2 virus (12). Lastly, it has been demonstrated the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (13). Several emerging SARS-CoV-2 genomes have been identified including the Omicron, or B.1.1.529, variant. First identified in November 2021 in South Africa, the Omicron variant quickly became the predominant SARS-CoV-2 variant and is considered a variant of concern (VOC). The Omicron variant contains 29 mutations in the S1 subunit of SARS-Cov-2, of which 15 are located in the RBD domain (14-16). The majority of the RBD mutations are involved in ACE-2 binding and they allow the Omicron variant to bind ACE-2 with greater affinity and, potentially, increased transmissibility (14-18). Additionally, several of these mutations have been identified in facilitating immune escape and reducing neutralization activity to several monoclonal antibodies (14-16). The Omicron variant also contains four mutations within the N terminal domain of the S1 subunit, which may enhance immune evasion (16). Several unique mutations are present in the S1 subunit which have unknown impacts on receptor binding or antibody neutralization. The study of the Omicron variant's impact on immune escape and reduced neutralization activity to monoclonal antibodies along with an increased risk of reinfection, even among vaccinated individuals, remains ongoing (19).

References
  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019) Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G.R. Whittaker (2015) Virus Res. 202:120.
  6. Li, W. et al. (2003) Nature 426:450.
  7. Wong, S.K. et al. (2004) J. Biol. Chem. 279:3197.
  8. Jiang, S. et al. (2020) Trends. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  9. Ortega, J.T. et al. (2020) EXCLI J. 19:410.
  10. Wrapp, D. et al. (2020) Science 367:1260.
  11. Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  12. Okba, N.M.A. et al. (2020) Emerg. Infect. Dis. https://doi.org/10.3201/eid2607.200841.
  13. Wang, K. et al. (2020) bioRxiv https://www.biorxiv.org/content/10.1101/2020.03.14.988345v1.
  14. Shah, M. and Woo, H.G. (2021) bioRxiv https://doi.org/10.1101/2021.12.04.471200.
  15. Lupala, C.S. et al. (2021) bioRxiv https://doi.org/10.1101/2021.12.10.472102.
  16. Sarkar, R. et al. (2021) medRxiv https://doi.org/10.1101/2021.12.04.21267284.
  17. Zhang, L. et al. (2020) Nat Commun. 11:6013.
  18. Lasek-Nesselquist, E. et al. (2021) medRxiv https://doi.org/10.1101/2021.03.10.21253285.
  19. Callaway, E. and Ledford, H. (2021) Nature 600:197.
Long Name
Spike Protein, S1 Subunit
Alternate Names
SARS-CoV-2; Spike S1 Subunit
