Simple Plex Human CCL3/MIP-1 alpha Cartridge

Catalog #: SPCKB-PS-000476 Datasheet / COA / SDS

Simple Plex Human CCL3/MIP-1 alpha assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-PS-000476
SPCKA-PS-000476
SPCKC-PS-000476

Control Products Available

898059: Simple Plex Control for Human CCL3/MIP-1 alpha

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human CCL3/MIP-1 alpha Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)

Sensitivity

0.5 pg/mL

Assay Range

1.1 - 4,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant human MIP-1 alpha.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human MIP-1 alpha in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin)

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	15	15
Mean (pg/mL)	22.5	1222	21.8	1179
Standard Deviation	1.05	58.7	0.91	46.1
CV%	4.7	4.8	4.2	3.9

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	94	89-99
Heparin Plasma (n=4)	93	90-99
Serum (n=4)	97	93-100

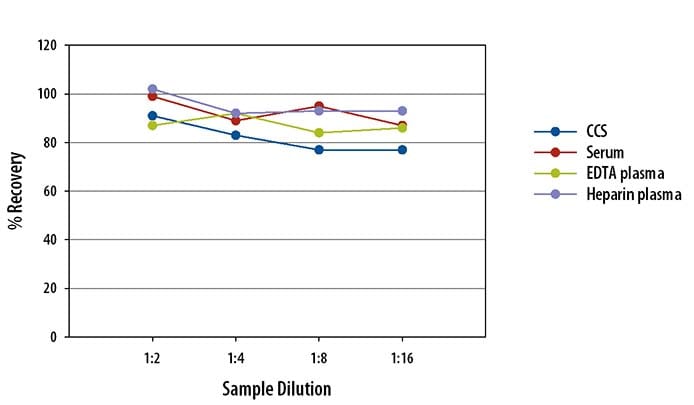

Linearity

Samples containing and/or spiked with high concentrations of human MIP-1 alpha were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data

N/A

View Larger

Human MIP-1 alpha Simple Plex Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CCL3/MIP-1 alpha

MIP-1 alpha (macrophage inflammatory protein 1 alpha) is a member of the CC or beta chemokine subfamily that was originally purified from the conditioned media of an LPS-stimulated murine macrophage cell line. MIP-1 alpha acts as a chemoattractant to a variety of cells including monocytes, T cells, B cells and eosinophils.

The two human MIP-1 alpha genes arise by duplication/mutation. They code for MIP-1 alpha isoforms CCL3/LD78a and CCL3L1/LD78b, which share 94% amino acid sequence homology. Whereas the human CCL3/LD78a is a single-copy gene, the human CCL3L1/LD78b gene copy number varies within the population. Human CCL3L1/LD78b binds and signals through chemokine receptors CCR1, CCR5. When compared to CCL3/LD78a, CCL3L1/LD78b has higher binding affinity to CCR5, which also functions as a coreceptor for HIV-1 entry. The copy number of CCL3L1 is one of several genetic determinants of HIV-1 susceptibility.

Entrez Gene IDs:

6348 (Human); 20302 (Mouse); 25542 (Rat); 448787 (Canine); 102136134 (Cynomolgus Monkey)

Alternate Names:

C-C motif chemokine 3; MIP1-(a); AI323804; CCL3; chemokine (C-C motif) ligand 3; G0S19-1; LD78a; LD78alpha; MIP1 alpha; MIP-1 alpha; MIP1A; MIP-1alpha; MIP1-alpha; PAT 464.1; SCYA3; SIS-beta
