Simple Plex Human IL-10 2nd Gen Assay Cartridge

Catalog #: SPCKB-PS-009385 Datasheet / COA / SDS

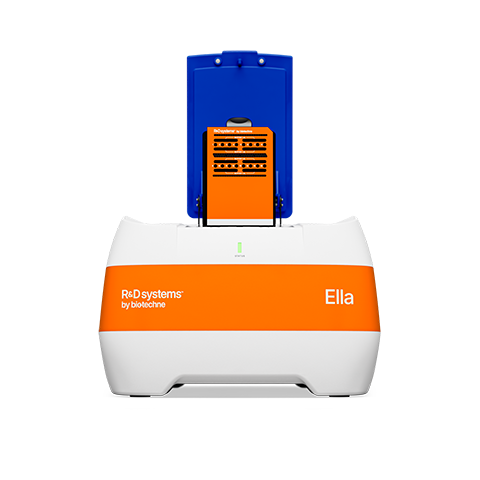

Simple Plex Human IL-10 2nd Gen assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer. Part # starting with ST01 ships in 3-5 days.Sample type indicated with PS (Plasma/Serum)

Catalog #	Availability	Size / Price	Qty
SPCKB-PS-009385
SPCKC-PS-009385
SPCKA-PS-009385
ST01B-PS-009385

Control Products Available

897001-SP: Simple Plex Control for Human IL-10 2nd Gen

3 Images

Product Details

Supplemental Products

Reviews

Summary Recovery Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human IL-10 2nd Gen Assay Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)

Sensitivity

0.17 pg/mL

Assay Range

0.4 - 1,446 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant human IL-10.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human Interleukin 10 (IL-10) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin).

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=2)	101	100-103
EDTA Plasma (n=4)	91	84-93
Heparin Plasma (n=4)	91	79-95
Serum (n=4)	95	93-97

Scientific Data

N/A

View Larger

Human IL-10 (2nd Generation) Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-10

Interleukin-10 functions as an anti-inflammatory cytokine by inhibiting the expansion and activation of Th1 cells and Th17 cells and by promoting the development of M2 macrophages and regulatory T cells (Treg). Within a tumor microrenvironment, however, IL-10 can inhibit the expansion of both Treg and myeloid-derived suppressor cells (MDSC). IL-10 exerts protective effects including limiting tissue damage in arthritic inflammation and promoting muscle regeneration after injury, but it also contributes to the persistence of viral infections. IL-10 signals through a receptor complex composed of IL-10 R alpha and IL-10 R beta. IL-10 R beta additionally associates with IL-20 R alpha, IL-22 R alpha 1, or IL-28 R alpha to form the receptor complexes for IL-22, IL-26, IL-28, and IL-29.

Long Name:

Interleukin 10

Entrez Gene IDs:

3586 (Human); 16153 (Mouse); 25325 (Rat); 397106 (Porcine); 403628 (Canine); 102133450 (Cynomolgus Monkey); 493683 (Feline); 100715618 (Guinea Pig); 2949786 (Viral)

Alternate Names:

CSIF; CSIFMGC126450; Cytokine synthesis inhibitory factor; GVHDS; IL10; IL-10; IL10A; IL-10MGC126451; interleukin 10; interleukin-10; TGIF
