Simple Plex Human Nectin-2 Cartridge

Catalog #: SPCKB-PS-006536 Datasheet / COA / SDS

Simple Plex Human Nectin-2/CD112 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKC-PS-006536
SPCKA-PS-006536
SPCKB-PS-006536

Control Products Available

897016: Simple Plex Control for Human Nectin-2/CD112

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human Nectin-2 Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL)

Sensitivity

0.51 pg/mL

Assay Range

6.6 - 4,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant human Nectin-2.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human Nectin-2 in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin)

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	38	38
Mean (pg/mL)	29.7	1618	29.2	1417
Standard Deviation	2.47	131.9	2.79	105
CV%	8.3	8.2	9.6	7.4

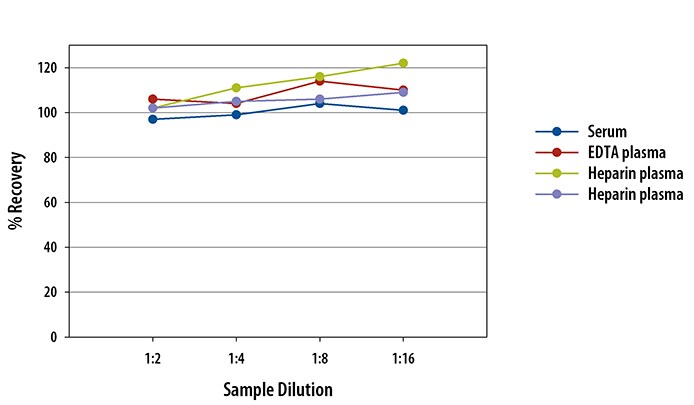

Linearity

Samples containing and/or spiked with high concentrations of human Nectin-2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

View Larger

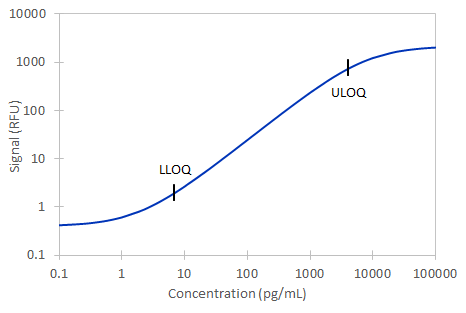

Human Nectin-2 Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Nectin-2/CD112

Nectins are type I transmembrane glycoproteins that are calcium-independent immunoglobulin (Ig)-like cell adhesion molecules (CAMs). Homology has led to their designation as poliovirus receptor-related (PRR) proteins, but nectins do not bind poliovirus. The extracellular domains of the nectin family form cis-homodimers (same cell), followed by homophilic or heterophilic trans-dimers (across cells) that organize intercellular junctions. Nectin-1, also known as CD111, PRR1 and herpes virus entry mediator C (HVEC) has a secreted splice variant. Nectin-1, Nectin-2 (CD112, PRR2, HVEB) and Nectin-3 (PRR3) are concentrated in adherens junctions and exist on neurons, endothelial cells, epithelial cells and fibroblasts. Nectin-4 is mainly expressed in the placenta; a soluble form is generated via the action of TACE/ADAM17.

Long Name:

Poliovirus Receptor Related 2

Entrez Gene IDs:

5819 (Human); 19294 (Mouse); 102137456 (Cynomolgus Monkey)

Alternate Names:

CD112 antigen; CD112; Herpes virus entry mediator B; Herpesvirus entry mediator B; herpesvirus entry protein B; HVEB; HVEBpoliovirus receptor-like 2; MPH; nectin 2; Nectin2; Nectin-2; poliovirus receptor-related 2 (herpesvirus entry mediator B); poliovirus receptor-related protein 2; PRR2; PRR2nectin-2; PVRL2; PVRR2poliovirus receptor related 2
