Simple Plex Mouse CCL4/MIP-1 beta Cartridge

Catalog #: SPCKB-MP-003557 Datasheet / COA / SDS

Simple Plex Mouse CCL4/MIP-1 beta assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-MP-003557
SPCKA-MP-003557
SPCKC-MP-003557

Control Products Available

896177: Simple Plex Control for Mouse CCL4/MIP-1 beta

Simple Plex Cartridge Kit for 72 samples, containing CCL4/MIP-1b

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Mouse CCL4/MIP-1 beta Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)

Sensitivity

0.2 pg/mL

Assay Range

1.3 - 1,920 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant mouse MIP-1 beta.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of mouse MIP-1 beta in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin).

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	102	99
Mean (pg/mL)	13.2	614	14.4	684
Standard Deviation	0.832	60.4	1.18	79.3
CV%	6.3	9.8	8.2	11.6

Recovery

Recovery was not necessary as MIP-1 beta shows five points of natural linearity.

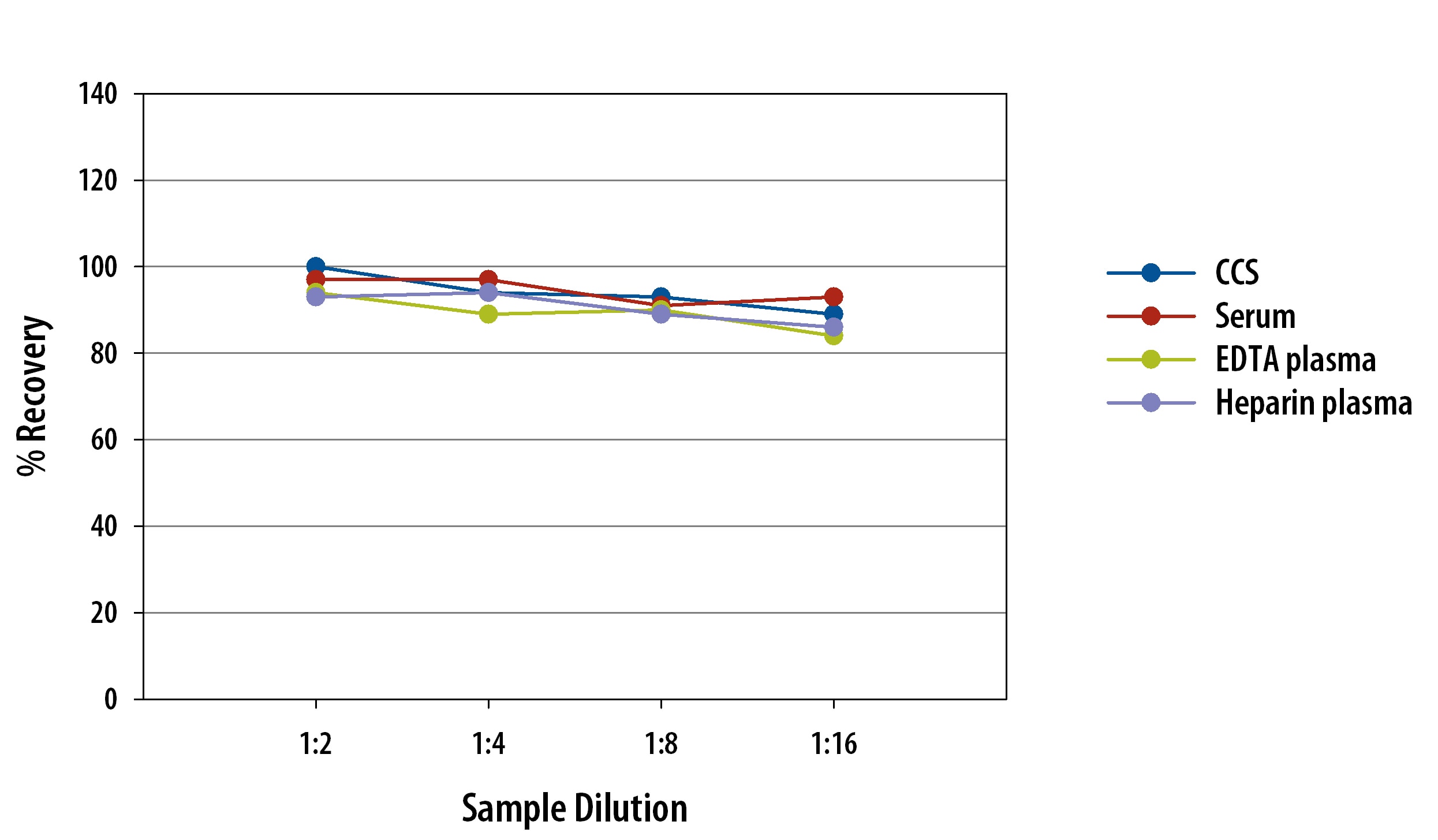

Linearity

Samples containing and/or spiked with high concentrations of mouse MIP-1 beta were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

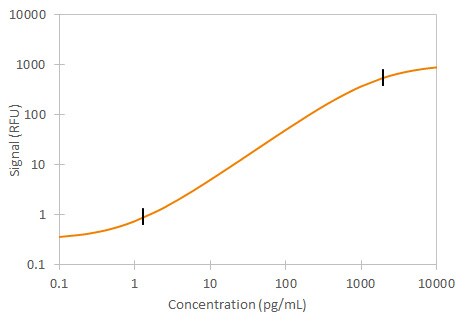

Mouse CCL4/MIP-1b Simple Plex Assay Standard Curve

View Larger

Mouse CCL4/MIP-1 beta Simple Plex Assay Standard Curve

Product Datasheets

Product Datasheet

COA

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CCL4/MIP-1 beta

CCL4/MIP-1 beta is a beta chemokine that is secreted at sites of inflammation by activated leukocytes, lymphocytes, vascular endothelial cells, and pulmonary smooth muscle cells. It attracts a variety of immune cells to sites of microbial infection as well as to other pathologic inflammation such as allergic asthma and ischemic myocardium. CCL4 is secreted from activated monocytes as a heterodimer with CCL3/MIP-1 alpha. It signals through CCR5, and an N-terminally trimmed form additionally interacts with CCR1 and CCR2. In humans, the ability of CCL4 to bind CCR5 inhibits the cellular entry of M-tropic HIV-1 which utilizes CCR5 as a coreceptor.

Entrez Gene IDs:

6351 (Human); 20303 (Mouse); 116637 (Rat); 448786 (Canine); 102117861 (Cynomolgus Monkey)

Alternate Names:

ACT2; ACT-2; AT744.1; C-C motif chemokine 4; CCL4; chemokine (C-C motif) ligand 4; Exodus-3; G-26 T-lymphocyte-secreted protein; G-26; HC21; LAG1; LAG-1; Lymphocyte activation gene 1 protein; Macrophage inflammatory protein 1-beta; MIP1 beta; MIP-1 beta; MIP1B; MIP1B1; MIP-1-beta; MIP-1-beta(1-69); PAT 744; Protein H400; SCYA2; SCYA4; secreted protein G-26; SIS-gamma; small inducible cytokine A4 (homologous to mouse Mip-1b); Small-inducible cytokine A4; T-cell activation protein 2
