Simple Plex Mouse/Rat TREM-2 Cartridge

Catalog #: SPCKB-MP-008555 Datasheet / COA / SDS

Simple Plex Mouse/Rat TREM-2 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-MP-008555
SPCKA-MP-008555
SPCKC-MP-008555

Control Products Available

897080: Simple Plex Control for Mouse/Rat TREM-2

Mouse/Rat TREM-2 Ella Assay Product Shot

4 Images

Product Details

Supplemental Products

Reviews

Summary Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Mouse/Rat TREM-2 Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Cerebrospinal Fluid (10 uL)

Sensitivity

0.036 pg/mL

Assay Range

5.2 - 8,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of mouse and rat Triggering Receptor Expressed on Myeloid cells 2 (TREM-2) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=2)	102	97-107

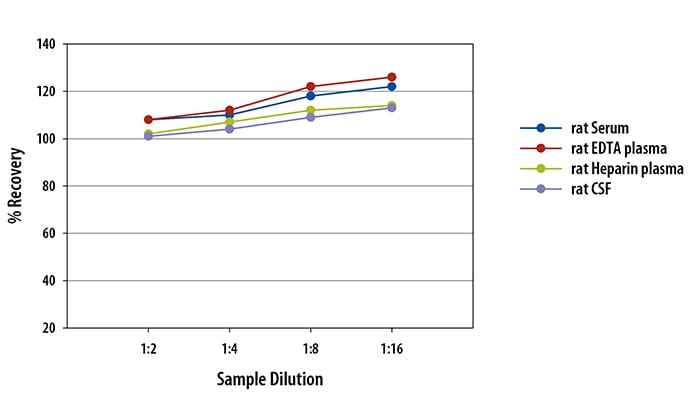

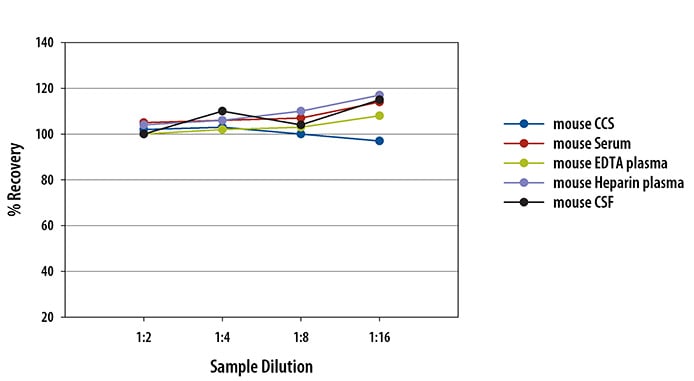

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat TREM-2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

View Larger

Mouse/Rat TREM-2 Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TREM2

The TREM family of receptors regulates the activity of various cell types of the immune system including neutrophils, monocyte/macrophages, microglia, and dendritic cells. The receptors are members of the immunoglobulin superfamily, characterized structurally by a single V-set immunoglobulin (Ig) domain and a short cytoplasmic tail. TREMs associate with the DAP12 signal adapter, an immunoreceptor tyrosine-based activation motif- (ITAM)-containing protein that is phosphorylated and transduces signals when activated.

Long Name:

Triggering Receptor Expressed on Myeloid Cells 2

Entrez Gene IDs:

54209 (Human); 102133279 (Cynomolgus Monkey)

Alternate Names:

PLOSL2; TREM2; TREM-2; Trem2a; Trem2b; Trem2c; TREM-2triggering receptor expressed on myeloid cells 2a; Triggering receptor expressed on monocytes 2; triggering receptor expressed on myeloid cells 2
