Human CXCR4 Antibody

Catalog #: MAB170R Datasheet / COA / SDS

Recombinant Monoclonal Antibody

Catalog #	Availability	Size / Price	Qty
MAB170R-100
MAB170R-SP
MAB170R-500
MAB170R-01M

Detection of CXCR4 in Human Blood Lymphocytes by Flow Cytometry.

2 Images

All CXCR4 Antibodies

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human CXCR4 Antibody Summary

Species Reactivity

Human

Specificity

Detects human CXCR4.

Source

Recombinant Monoclonal Mouse IgG_2A Clone # 12G5R

Purification

Protein A or G purified from cell culture supernatant

Immunogen

CP-MAC-infected SUP-T1 human T cell lymphoblastic lymphoma line
Accession # P61073

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Endotoxin Level

<0.10 EU per 1 μg of the antibody by the LAL method.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Flow Cytometry

0.25 µg/10⁶ cells

See below

Neutralization

Measured by its ability to neutralize CXCL12/SDF‑1 alpha -induced chemotaxis in the BaF3 mouse pro‑B cell line transfected with human CXCR4. The Neutralization Dose (ND₅₀) is typically 0.3-1.2 µg/mL in the presence of 1 ng/mL Recombinant Human/Feline/Rhesus Macaque CXCL12/SDF‑1 alpha.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry

View Larger

Detection of CXCR4 in Human Blood Lymphocytes by Flow Cytometry. Human peripheral blood lymphocytes were stained with Mouse Anti-Human CD19 APC-conjugated Monoclonal Antibody (Catalog # FAB4867A) and either (A) Mouse Anti-Human CXCR4 Monoclonal Antibody (Catalog # MAB170R) or (B) Mouse IgG_2AIsotype Control (Catalog # MAB003) followed by Phycoerythrin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0102B). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry

View Larger

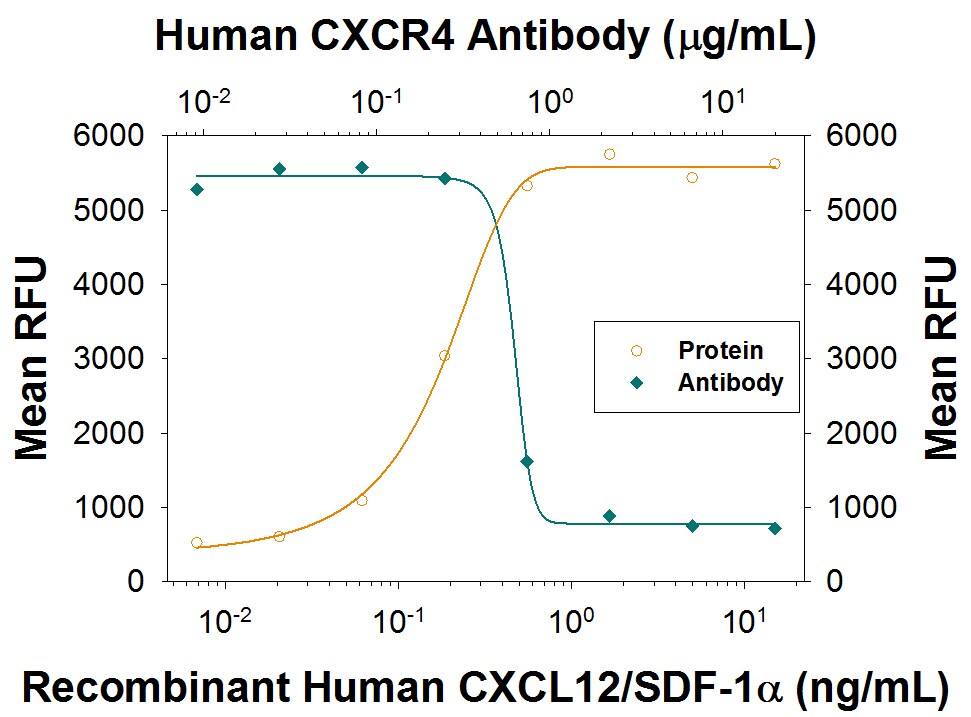

Chemotaxis Induced by CXCL12/SDF-1 alpha and Neutrali-zation by Human CXCR4 Antibody. Recombinant Human/ Feline/Rhesus Macaque CXCL12/SDF-1a (Catalog # 350-NS) chemoattracts the BaF3 mouse pro-B cell line transfected with human CXCR4 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Human/Feline/ Rhesus Macaque CXCL12/ SDF-1a (1 ng/mL) is neutralized (green line) by increasing concentrations of Mouse Anti-Human CXCR4 Monoclonal Antibody (Catalog # MAB170R). The ND₅₀ is typically 0.3-1.2 µg/mL.

Reconstitution Calculator

Preparation and Storage

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CXCR4

CXCR4, also known as CD184, is a G-protein-linked seven transmembrane spanning receptor that binds stromal cell-derived factor-1 (SDF-1). CXCR4 acts as a co-factor for T-cell tropic HIV-1 and -2 viral entry into cells. While primarily a membrane protein, CXCR4 undergoes trafficking and internalization in response to stimulation with phorbol esters and ligand (1). Cytoplasmic and nuclear localization of CXCR4 has been observed in colorectal and renal carcinomas (2,3) and it has been used as the basis of prognosis and metastatic state (3,4,5).

References

Orsini, M.J. et al. (1999) J. Biol. Chem. 274:31076.
Zagzag, D. et al. (2005) Cancer Res. 65:6178.
Speetjens, F.M. et al. (2009) Cancer Microenvironment 2:1.
Wang, L. et al. (2009) Oncology Reports 22:1333.
Amara, S. et al. (2015) Cancer Biomark. 15:869.

Long Name

C-X-C Motif Chemokine Receptor 4

Entrez Gene IDs

7852 (Human); 12767 (Mouse); 60628 (Rat); 483900 (Canine); 493676 (Feline)

Alternate Names

CD184; chemokine (C-X-C motif) receptor 4; chemokine (C-X-C motif), receptor 4 (fusin); C-X-C chemokine receptor type 4; CXCR4; CXC-R4; CXCR-4; D2S201E; D2S201ESDF-1 receptor; FB22; Fusin; HM89; HM89NPYRL; HSY3RR; LAP3; LAP-3; LCR1; LESTR; LESTRCD184 antigen; Leukocyte-derived seven transmembrane domain receptor; leukocyte-derived seven-transmembrane-domain receptor; lipopolysaccharide-associated protein 3; neuropeptide Y receptor Y3; NPY3R; NPY3RWHIM; NPYR; NPYRL; NPYY3R; pCXCR4; seven transmembrane helix receptor; seven-transmembrane-segment receptor, spleen; Stromal cell-derived factor 1 receptor; WHIMS
