Human Galectin-3 DuoSet ELISA

Name: Human Galectin-3 DuoSet ELISA
Brand: R&D Systems
SKU: DY1154
Rating: 4.3 (3 reviews)

Catalog #: DY1154
15 Citations 3 Reviews Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
DY1154

Ancillary Products Available

DY008B: DuoSet ELISA Ancillary Reagent Kit 2

DY999B: Substrate Reagent Pack

DY999: Substrate Reagent Pack

1 Image

All Galectin-3 ELISAs

Product Details

Procedure

Citations (15)

FAQs

Supplemental Products

Reviews (3)

Summary Product Features Kit Content Other Reagents Required Data Examples Product Datasheets Preparation and Storage Background

Human Galectin-3 DuoSet ELISA Summary

Assay Type

Solid Phase Sandwich ELISA

Format

96-well strip plate

Sample Volume Required

100 µL

Assay Range

62.5 - 4,000 pg/mL

Sufficient Materials

For fifteen 96-well plates*

Specificity

Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human Galectin-3. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet ELISA.

Product Features

Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
Development protocols are provided to guide further assay optimization
Assay can be customized to your specific needs
Economical alternative to complete kits

Kit Content

Capture Antibody
Detection Antibody
Recombinant Standard
Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na₂HPO₄, 1.5 mM KH₂PO₄, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent: 1% BSA in PBS, pH 7.2-7.4, 0.2 m filtered (R&D Systems Catalog # DY995). Quality of BSA is critical (see Technical Hints).

Blocking Buffer: 1% BSA in PBS, pH 7.2-7.4, 0.2 m filtered (R&D Systems Catalog # DY995). Quality of BSA is critical (see Technical Hints).

Substrate Solution: 1:1 mixture of Color Reagent A (H₂O₂) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H₂SO₄ (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990), or equivalent

Plate Sealers: ELISA Plate Sealers (Catalog # DY992), or equivalent

Scientific Data

N/A

View Larger

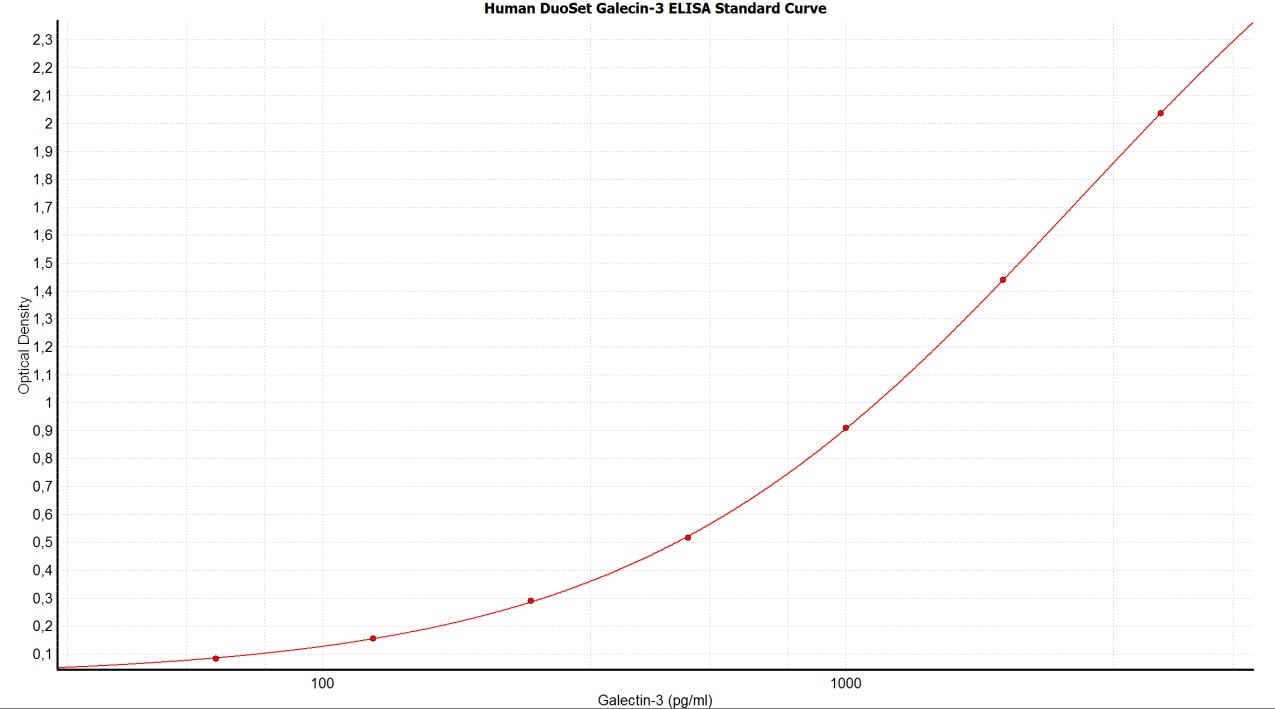

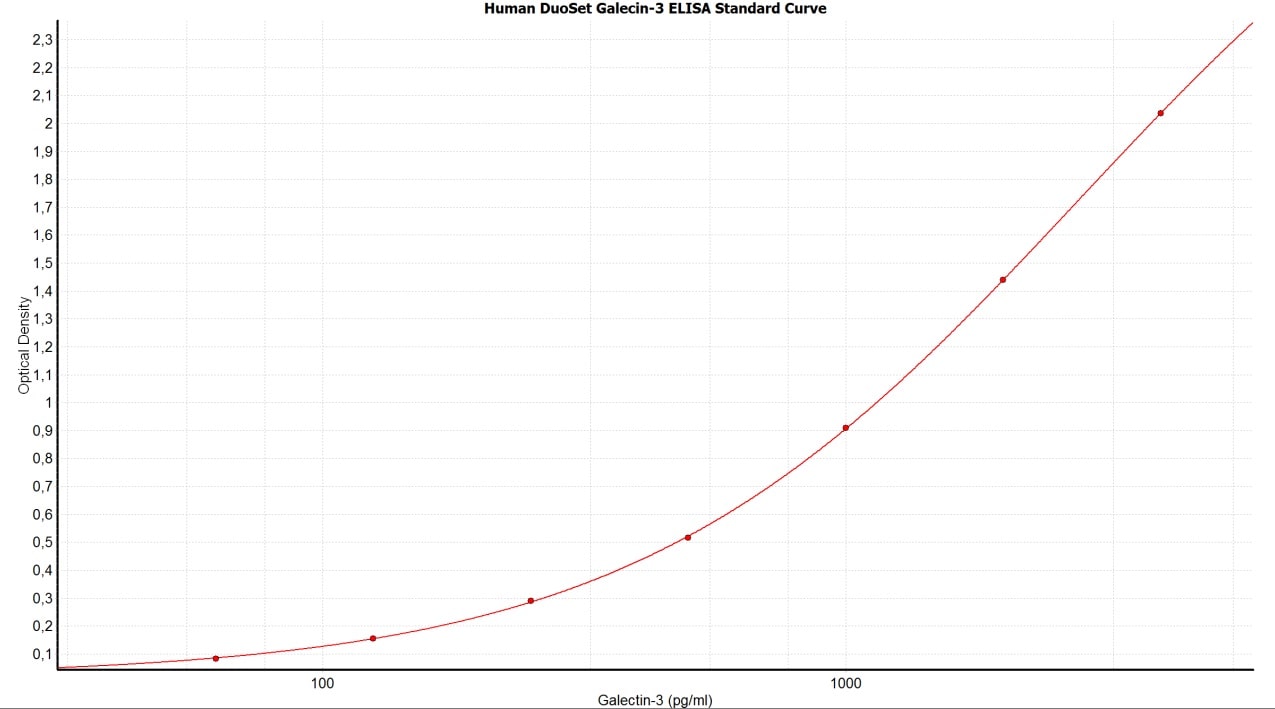

Human Galectin-3 ELISA Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Galectin-3

The galectins constitute a large family of carbohydrate-binding proteins that function in many systems both intracellularly and following secretion. Galectins contain either one or two carbohydrate recognition domains (CRR) which mediate recognition of N-acetyl-lactosamine-containing glycoproteins. Some galectins exist in multiple isoforms due to alternative splicing. Individual galectins differ in their tissue distribution and in their carbohydrate-binding specificities.

Entrez Gene IDs:

3958 (Human); 16854 (Mouse)

Alternate Names:

AGE-R3; Carbohydrate-binding protein 35; CBP 35,35 kDa lectin; CBP35; GAL3; Gal-3; galactin-3; Galactose-specific lectin 3; Galactoside-binding protein; GALBPCBP35; Galectin3; Galectin-3; GALIG; IgE-binding protein; L29; L31; L-31; Laminin-binding protein; Lectin L-29; lectin, galactoside-binding, soluble, 3; LGALS2; LGALS3; Mac-2 antigen; Mac-2; MAC2GAL3

Assay Procedure

GENERAL ELISA PROTOCOL

Plate Preparation

Dilute the Capture Antibody (to the working concentration stated in the product datasheet ) in PBS without carrier protein. Immediately coat a 96-well microplate with 100 µL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 µL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
Block each well of the microplate as recommended in the product datasheet. Incubate at room temperature for a minimum of 1 hour.

Note: The recommended Reagent Diluent typically contains 1% BSA. Some DuoSet Development Kits require alternative blocking agents, or for plates to be blocked overnight with a higher percentage of BSA, please see the product datasheet for details.
Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

PRECAUTION
The Stop Solution suggested for use with this kit is an acid solution. Wear eye, hand, face and clothing protection when using this material.

Assay Procedure

Add 100 µL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
Repeat the aspiration/wash as in step 2 of Plate Preparation.
Add 100 µL of the Detection Antibody, diluted in Reagent Diluent (as recommended in the product datasheet), to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
Repeat the aspiration/wash as in step 2 of Plate Preparation.
Add 100 µL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
Repeat the aspiration/wash as in step 2.
Add 100 µL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
Add 50 µL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Human Galectin-3 DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

15 Citations: Showing 1 - 10
Filter your results:

Filter by:

Myocardial transcriptomic analysis of diabetic patients with aortic stenosis: key role for mitochondrial calcium signaling
Authors: Cherpaz, M;Meugnier, E;Seillier, G;Pozzi, M;Pierrard, R;Leboube, S;Farhat, F;Vola, M;Obadia, JF;Amaz, C;Chalabreysse, L;May, C;Chanon, S;Brun, C;Givre, L;Bidaux, G;Mewton, N;Derumeaux, G;Bergerot, C;Paillard, M;Thibault, H;
Cardiovascular diabetology
Species: Human
Sample Types: Serum
Neutrophils and galectin-3 defend mice from lethal bacterial infection and humans from acute respiratory failure
Authors: Das, S;Kaminski, TW;Schlegel, BT;Bain, W;Hu, S;Patel, A;Kale, SL;Chen, K;Lee, JS;Mallampalli, RK;Kagan, VE;Rajasundaram, D;McVerry, BJ;Sundd, P;Kitsios, GD;Ray, A;Ray, P;
Nature communications
Species: Human
Sample Types: Endotracheal Tube Aspirates
Predictors of HIV rebound differ by timing of antiretroviral therapy initiation
Authors: Li, JZ;Melberg, M;Kittilson, A;Abdel-Mohsen, M;Li, Y;Aga, E;Bosch, RJ;Wonderlich, ER;Kinslow, J;Giron, LB;Di Germanio, C;Pilkinton, M;MacLaren, L;Keefer, M;Fox, L;Barr, L;Acosta, E;Ananworanich, J;Coombs, R;Mellors, J;Deeks, S;Gandhi, RT;Busch, M;Landay, A;Macatangay, B;Smith, DM;AIDS Clinical Trials Group A5345 Study Team, ;
JCI insight
Species: Human
Sample Types: Plasma
Vacuole Membrane Protein 1 (VMP1) Restricts NLRP3 Inflammasome Activation by Modulating SERCA Activity and Autophagy
Authors: SR Zack, R Nikolaienk, B Cook, R Melki, AV Zima, EM Campbell
Research square, 2023-01-27;0(0):.
Species: Human
Sample Types: Cell Culture Supernates
Biomarkers of Pulmonary Hypertension Are Altered in Children With Down Syndrome and Pulmonary Hypertension
Authors: M Griffiths, J Yang, D Vaidya, M Nies, S Brandal, DD Ivy, F Hickey, K Wolter-War, ED Austin, M Mullen, MW Pauciulo, KA Lutz, EB Rosenzweig, R Hirsch, D Yung, WC Nichols, AD Everett
The Journal of pediatrics, 2021-10-21;0(0):.
Species: Human
Sample Types: Plasma
Beneficial Effects of Mineralocorticoid Receptor Pathway Blockade against Endothelial Inflammation Induced by SARS-CoV-2 Spike Protein
Authors: E Jover, L Matilla, M Garaikoetx, A Fernández-, P Muntendam, F Jaisser, P Rossignol, N López-Andr
Biomedicines, 2021-06-03;9(6):.
Species: Human
Sample Types: Cell Culture Supernates
Exploring the potential effect of paricalcitol on markers of inflammation in de novo renal transplant recipients
Authors: HK Pihlstrøm, T Ueland, AE Michelsen, P Aukrust, F Gatti, C Hammarströ, M Kasprzycka, J Wang, G Haraldsen, G Mjøen, DO Dahle, K Midtvedt, IA Eide, A Hartmann, H Holdaas
PLoS ONE, 2020-12-16;15(12):e0243759.
Species: Human
Sample Types: Plasma
Network analysis of the progranulin-deficient mouse brain proteome reveals pathogenic mechanisms shared in human frontotemporal dementia caused by GRN mutations
Authors: M Huang, E Modeste, E Dammer, P Merino, G Taylor, DM Duong, Q Deng, CJ Holler, M Gearing, D Dickson, NT Seyfried, T Kukar
Acta Neuropathol Commun, 2020-10-07;8(1):163.
Species: Human
Sample Types: Tissue Homogenates
The Phenotype and Secretory Activity of Adipose-Derived Mesenchymal Stem Cells (ASCs) of Patients with Rheumatic Diseases
Authors: E Kuca-Warna, U Skalska, I Janicka, U Musia?owic, K Bonek, P G?uszko, P Szcz?sny, M Olesi?ska, E Kontny
Cells, 2019-12-17;8(12):.
Species: Human
Sample Types: Cell Culture Supernates
Fecal Galectin-3: A New Promising Biomarker for Severity and Progression of Colorectal Carcinoma
Authors: M Jovanovic, N Gajovic, N Zdravkovic, M Jovanovic, M Jurisevic, D Vojvodic, V Maric, A Arsenijevi, I Jovanovic
Mediators Inflamm., 2018-04-04;2018(0):8031328.
Species: Human
Sample Types: Feces

Galectin-3 acts as an angiogenic switch to induce tumor angiogenesis via Jagged-1/Notch activation
Authors: SN Dos Santos, H Sheldon, JX Pereira, C Paluch, EM Bridges, MC El-Cheikh, AL Harris, ES Bernardes
Oncotarget, 2017-07-25;0(0):.
Species: Human
Sample Types: Cell Culture Supernates

Increased expression of colonic Wnt9A through Sp1-mediated transcriptional effects involving arylsulfatase B, chondroitin 4-sulfate, and galectin-3.
Authors: Bhattacharyya S, Feferman L, Tobacman J
J Biol Chem, 2014-04-28;289(25):17564-75.
Species: Human
Sample Types: Cell Lysates

Hypoxia reduces arylsulfatase B activity and silencing arylsulfatase B replicates and mediates the effects of hypoxia.
Authors: Bhattacharyya S, Tobacman JK
PLoS ONE, 2012-03-13;7(3):e33250.
Species: Human
Sample Types: Cell Lysates

Human breast cancer cells enhance self tolerance by promoting evasion from NK cell antitumor immunity.
Authors: Mamessier E, Sylvain A, Thibult ML, Houvenaeghel G, Jacquemier J, Castellano R, Goncalves A, Andre P, Romagne F, Thibault G, Viens P, Birnbaum D, Bertucci F, Moretta A, Olive D
J. Clin. Invest., 2011-08-15;121(9):3609-22.
Species: Human
Sample Types: Cell Culture Supernates

Novel INTeraction of MUC4 and galectin: potential pathobiological implications for metastasis in lethal pancreatic cancer.
Authors: Senapati S, Chaturvedi P, Chaney WG, Chakraborty S, Gnanapragassam VS, Sasson AR, Batra SK
Clin. Cancer Res., 2010-11-08;17(2):267-74.
Species: Human
Sample Types: Serum
