Human/Mouse/Rat Jagged 1 Fluorescein-conjugated Antibody

Catalog #: FAB1277F
1 Citation Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
FAB1277F

Detection of Jagged 1 in bEnd.3 Mouse Cell Line by Flow Cytometry.

2 Images

All Jagged 1 Antibodies

Product Details

Citations (1)

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human/Mouse/Rat Jagged 1 Fluorescein-conjugated Antibody Summary

Species Reactivity

Human, Mouse, Rat

Specificity

Detects human, mouse, and rat Jagged 1. In direct ELISAs, no cross‑reactivity with recombinant human Jagged 2 is observed. Stains human Jagged 1 transfectants but not the parental cell line or human Jagged 2 transfectants in flow cytometry.

Source

Monoclonal Mouse IgG_2B Clone # 188331

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

NS0-derived recombinant human Jagged 1
Ser32-Asp296
Accession # P78504

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Label

Fluorescein (Excitation= 488 nm, Emission= 515-545 nm)

Applications

Recommended Concentration

Sample

Flow Cytometry

10 µL/10⁶ cells

See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry

View Larger

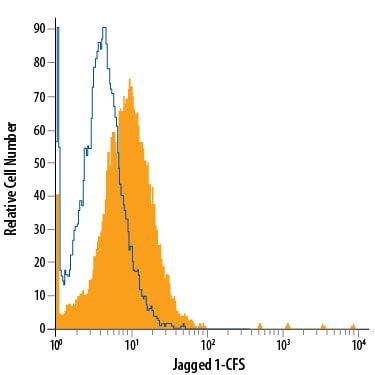

Detection of Jagged 1 in bEnd.3 Mouse Cell Line by Flow Cytometry. bEnd.3 mouse endothelioma cell line was stained with Mouse Anti-Human/Mouse/Rat Jagged 1 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB1277F, filled histogram) or isotype control antibody (Catalog # IC0041F, open histogram). View our protocol for Staining Membrane-associated Proteins.

Flow Cytometry

View Larger

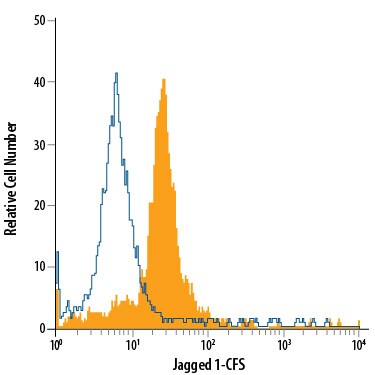

Detection of Jagged 1 in Rat Cortical Stem Cells by Flow Cytometry. Rat cortical stem cells were stained with Mouse Anti-Human/Mouse/Rat Jagged 1 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB1277F, filled histogram) or isotype control antibody (Catalog # IC0041F, open histogram). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.

12 months from date of receipt, 2 to 8 °C as supplied.

Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185‑229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. Mature human Jagged 1 shares 97% and 96% aa identity with mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1-8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

References

Sainson, R.C. and A.L. Harris (2008) Angiogenesis 11:41.
Cordle, J. et al. (2008) Nat. Struct. Mol. Biol. 15:849.
Artavamis-Tsokanas, S. et al. (1999) Science 284:770.
Lai, E.C. (2004) Development 131:965.
Milner, L.A. et al. (1994) Blood 83:2057.
Nyfeler, Y. et al. (2005) EMBO J. 24:3504
Linheng, L. et al. (1998) Immunity 8:43.
Iso, T. et al. (2003) Arterioscler. Thromb. Vasc. Biol. 23:543.
Oda, T. et al. (1997) Nat. Genet. 16:235.
Oda, T. et al. (1997) Genomics 43:376.

Entrez Gene IDs

182 (Human); 16449 (Mouse); 29146 (Rat)

Alternate Names

AGS; AHDMGC104644; Alagille syndrome; AWS; CD339 antigen; CD339; HJ1; JAG1; Jagged 1; Jagged1; JAGL1; protein jagged-1
