Human NCAM-1/CD56 Antibody

Catalog #: MAB24082 Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
MAB24082-100
MAB24082-SP

Detection of NCAM‑1/CD56 in Human Peripheral Blood by Flow Cytometry.

2 Images

All NCAM-1/CD56 Antibodies

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

Human NCAM-1/CD56 Antibody Summary

Species Reactivity

Human

Specificity

Detects human NCAM-1/CD56 in direct ELISAs.

Source

Monoclonal Mouse IgG₁ Clone # 1006429

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

Mouse myeloma cell line, NS0-derived human NCAM -1/CD56
Leu20-Pro603 and Glu636-Asn741
Accession # NP_001070150

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Simple Western

20 µg/mL

Human Brain (Motor Cortex)

Flow Cytometry

0.25 µg/10⁶ cells

See below

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Flow Cytometry

View Larger

Detection of NCAM‑1/CD56 in Human Peripheral Blood by Flow Cytometry. Human peripheral blood was stained with either (A) Mouse Anti-Human NCAM-1/CD56 Monoclonal Antibody (Catalog # MAB24082) or (B) Mouse IgG1 Isotype Control (MAB002) followed by anti-Mouse IgG APC-conjugated secondary antibody (F0101B) and Mouse Anti-Human NKp46 PE-conjugated Monoclonal Antibody (FAB1850P). View our protocol for Staining Membrane-associated Proteins.

Simple Western

View Larger

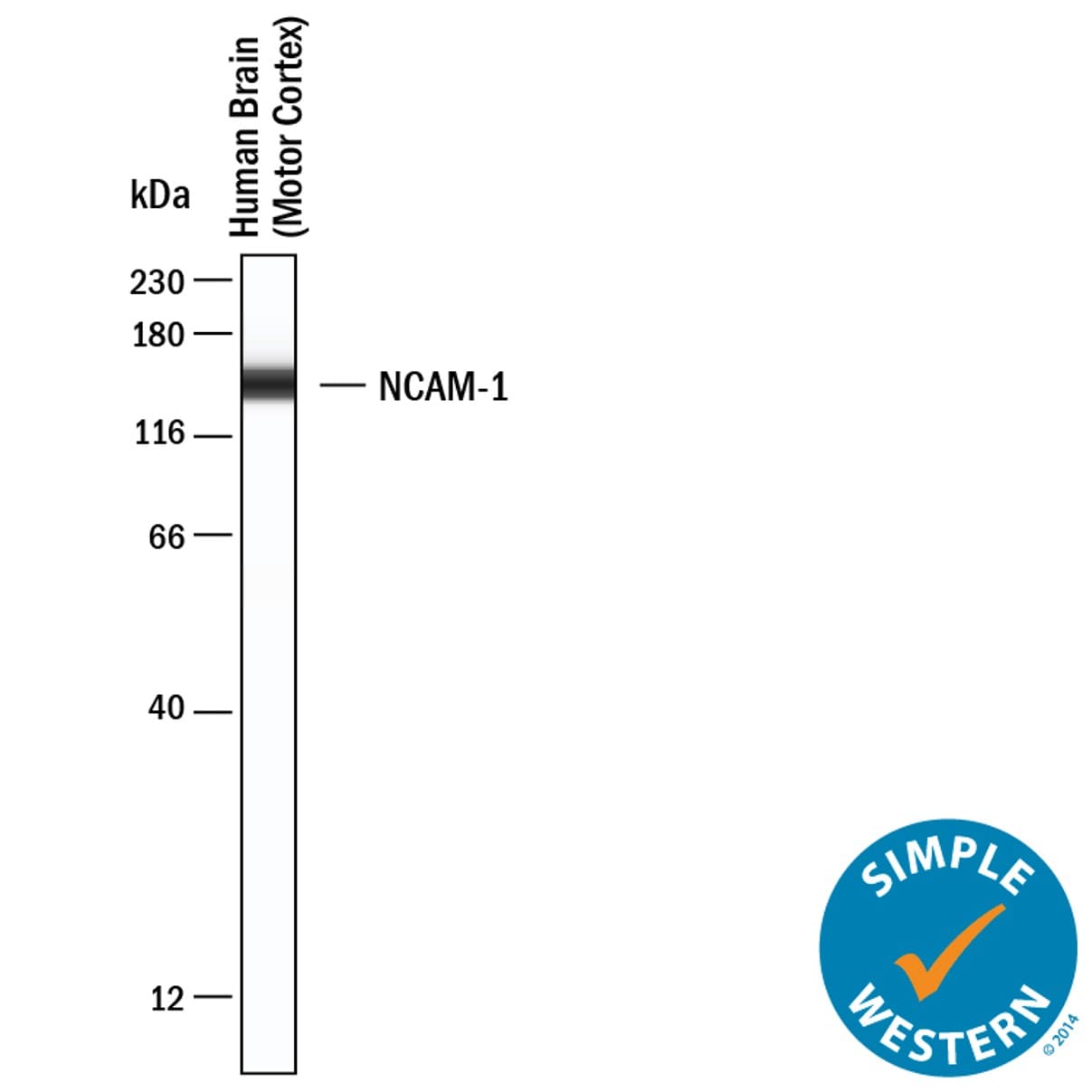

Detection of Human NCAM‑1/CD56 by Simple Western^TM. Simple Western lane view shows lysates of Human Brain (Motor Cortex), loaded at 0.2 mg/mL. A specific band was detected for NCAM‑1/CD56 at approximately 145 kDa (as indicated) using 20 µg/mL of Mouse Anti-Human NCAM‑1/CD56 Monoclonal Antibody (Catalog # MAB24082). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Reconstitution Calculator

Preparation and Storage

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: NCAM-1/CD56

Neural cell adhesion molecule 1 (NCAM-1) is a multifunctional member of the Ig superfamily. It belongs to a family of membrane-bound glycoproteins that are involved in Ca⁺⁺ independent cell matrix and homophilic or heterophilic cell-cell interactions. NCAM-1 specifically binds to heparan sulfate proteoglycans (1), the extracellular matrix protein agrin (2), and several chondroitin sulfate proteoglycans that include neurocan and phosphocan (3). There are three main forms of human NCAM-1 that arise by alternate splicing. These are designated NCAM-120/NCAM-1 (761 amino acids [aa]), NCAM‑140 (848 aa), and NCAM-180 (1120 aa). NCAM-120 is GPI-linked, while NCAM‑140 and NCAM-180 are type I transmembrane glycoproteins (4 - 6). Additional alternate splicing adds considerable diversity to all three forms, and extracellular proteolytic processing is possible for NCAM-180 (7 ‑ 8). NCAM-1 is synthesized as a 761 aa preproprecursor that contains a 19 aa signal sequence, a 722 aa GPI-linked mature region, and a 20 aa C-terminal prosegment (4). The molecule contains five C-2 type Ig-like domains and two fibronectin type-III domains. Human to mouse, NCAM-1 is 93% aa identical. NCAM-1 appears to be highly sialylated. The polysialyation of NCAM-1 reduces its adhesive property and increases its neurite outgrowth promoting features (9). NCAM-1 in the adult brain shows a decline of sialylation relative to earlier developmental periods. In regions that retain a high degree of neuronal plasticity, however, the adult brain continues to express polysialylation-NCAM-1, suggesting sialylation of NCAM-1 is involved in regenerative processes and synaptic plasticity (10 - 13).

References

Burg, M.A. et al. (1995) J. Neurosci. Res. 41:49.
Storms, S.D. and U. Rutishauser (1998) J Biol. Chem. 273:27124.
Margolis, R.K. et al. (1996) Perspect. Dev. Neurobiol. 3:273.
Dickson, G. et al. (1987) Cell 50:1119.
Lanier, L.L. et al. (1991) J. Immunol. 146:4421.
Hemperly, J.J. et al. (1990) J. Mol. Neurosci. 2:71.
Rutishauser, U.and C. Goridis (1986) Trends Genet. 2:72.
Vawter, M.P. et al. (2001) Exp. Neurol. 172:29.
Rutihauser, U. (1990) Adv. Exp. Med. Biol. 265:179.
Becker, C.G. et al. (1996) J. Neurosci. Res. 45:143.
Doherty, P. et al. (1995) J. Neurobiol. 26:437.
Eckardt, M. et al. (2000) J. Neurosci. 20:5234.
Muller, D. et al. (1996) Neuron 17:413.

Long Name

Neural Cell Adhesion Molecule

Entrez Gene IDs

4684 (Human); 17967 (Mouse); 24586 (Rat)

Alternate Names

CD56 / NCAM-1; CD56 antigen; CD56; MSK39; NCAM1; N-CAM-1; NCAM-1; NCAMantigen recognized by monoclonal 5.1H11; neural cell adhesion molecule 1; neural cell adhesion molecule, NCAM
