Human Osteoactivin/GPNMB DuoSet ELISA Summary
* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.
This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human Osteoactivin/GPNMB. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.
Product Features
- Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
- Development protocols are provided to guide further assay optimization
- Assay can be customized to your specific needs
- Economical alternative to complete kits
Kit Content
- Capture Antibody
- Detection Antibody
- Recombinant Standard
- Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)
Other Reagents Required
DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.
The components listed above may be purchased separately:
PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered
Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4
Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered
Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)
Stop Solution: 2 N H2SO4 (Catalog # DY994)
Microplates: R&D Systems (Catalog # DY990)
Plate Sealers: ELISA Plate Sealers (Catalog # DY992)
Scientific Data
Product Datasheets
Preparation and Storage
Background: Osteoactivin/GPNMB
Osteoactivin, also known as transmembrane glycoprotein NMB (GPNMB) and dendritic cell-associated transmembrane protein (DC-HIL), is a type I transmembrane glycoprotein that is found either on the plasma membrane or on membranes of the endosome/lysosome compartment. The extracellular region of Osteoactivin contains a heparin-binding motif and an integrin recognition RGD domain, while the cytocylasmic region contains an immunoreceptor tyrosine-based activation motif (ITAM) and lysosomal targeting motif.
Assay Procedure
GENERAL ELISA PROTOCOL
Plate Preparation
- Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
- Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
- Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
- Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.
Assay Procedure
- Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
- Repeat the aspiration/wash as in step 2 of Plate Preparation.
- Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
- Repeat the aspiration/wash as in step 2 of Plate Preparation.
- Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
- Repeat the aspiration/wash as in step 2.
- Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
- Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
- Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.
Citations for Human Osteoactivin/GPNMB DuoSet ELISA
R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.
9
Citations: Showing 1 - 9
Filter your results:
Filter by:
-
Incremental biomarker and clinical outcomes after switch from enzyme therapy to eliglustat substrate reduction therapy in Gaucher disease
Authors: N Kleytman, J Ruan, A Ruan, B Zhang, V Murugesan, H Lin, L Guo, K Klinger, PK Mistry
Molecular genetics and metabolism reports, 2021-08-28;29(0):100798.
Species: Human
Sample Types: Serum
-
Glycoprotein NMB: a novel Alzheimer's disease associated marker expressed in a subset of activated microglia
Authors: M Hüttenrauc, I Ogorek, H Klafki, M Otto, C Stadelmann, S Weggen, J Wiltfang, O Wirths
Acta Neuropathol Commun, 2018-10-19;6(1):108.
Species: Human
Sample Types: Serum
-
Increased GPNMB, phospho-ERK1/2, and MMP-9 in cystic fibrosis in association with reduced arylsulfatase B
Authors: S Bhattachar, L Feferman, G Sharma, JK Tobacman
Mol. Genet. Metab., 2018-02-20;0(0):.
Species: Human
Sample Types: Serum
-
Exploratory study on the effect of osteoactivin on muscle regeneration in a rat volumetric muscle loss model
Authors: J Ma, AR Baker, A Calabro, KA Derwin
PLoS ONE, 2017-04-20;12(4):e0175853.
-
Validating glycoprotein non-metastatic melanoma B (gpNMB, osteoactivin), a new biomarker of Gaucher disease
Authors: Vagishwari Murugesan
Blood Cells Mol. Dis, 2016-12-13;0(0):.
Species: Human
Sample Types: Serum
-
Gpnmb Is a Potential Marker for the Visceral Pathology in Niemann-Pick Type C Disease.
Authors: Marques A, Gabriel T, Aten J, van Roomen C, Ottenhoff R, Claessen N, Alfonso P, Irun P, Giraldo P, Aerts J, van Eijk M
PLoS ONE, 2016-01-15;11(1):e0147208.
Species: Human
Sample Types: Plasma
-
Identification of a biomarker in cerebrospinal fluid for neuronopathic forms of Gaucher disease.
Authors: Zigdon, Hila, Savidor, Alon, Levin, Yishai, Meshcheriakova, Anna, Schiffmann, Raphael, Futerman, Anthony
PLoS ONE, 2015-03-16;10(3):e0120194.
Species: Human
Sample Types: CSF
-
Measuring urinary tubular biomarkers in type 2 diabetes does not add prognostic value beyond established risk factors.
Kidney Int, 2012-06-20;82(7):812-8.
Species: Human
Sample Types: Urine
-
Hematopoietic growth factor inducible neurokinin-1 (Gpnmb/Osteoactivin) is a biomarker of progressive renal injury across species.
Authors: Patel-Chamberlin M, Wang Y, Satirapoj B
Kidney Int., 2011-03-09;79(10):1138-48.
Species: Human
Sample Types: Urine
FAQs
No product specific FAQs exist for this product, however you may
View all ELISA FAQsReviews for Human Osteoactivin/GPNMB DuoSet ELISA
Average Rating: 5 (Based on 2 Reviews)
Have you used Human Osteoactivin/GPNMB DuoSet ELISA?
Submit a review and receive an Amazon gift card.
$25/€18/£15/$25CAN/¥75 Yuan/¥2500 Yen for a review with an image
$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image
Filter by:

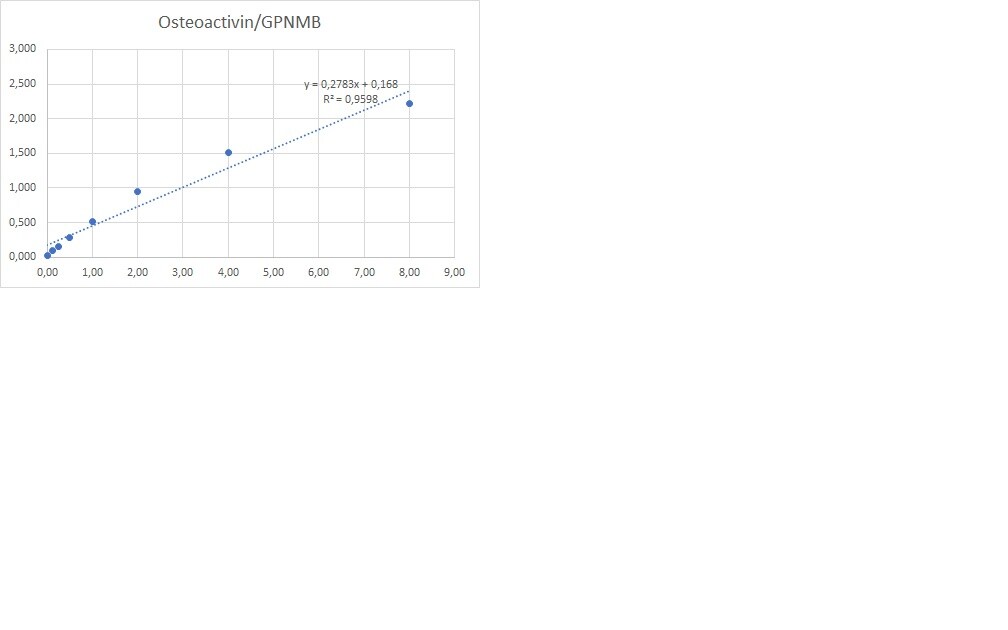

We used this kit to quantifyOsteoactivin/GPNMB in human serum and plasma, works very well at higher dilution.
