Home / CRACC/SLAMF7 / Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein, CF

Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein, CF

Catalog #: AVI1906 Datasheet / COA / SDS
Biotinylated
Catalog # Availability Size / Price Qty
AVI1906-050
Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews
Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
The biotin to protein ratio is greater than 0.7 as determined by the HABA assay. Measured by its binding ability in a functional ELISA. When Human CRACC/SLAMF7 Antibody (Catalog # MAB1906) is Immobilized at 1.0 μg/mL (100 μL/well), the concentration of Biotinylated Recombinant Human CRACC/SLAMF7 Fc Chimera Avi-tag (Catalog # AVI1906) that produces 50% optimal binding response is found to be approximately 1.00-10.0 ng/mL. Measured by its ability to inhibit anti-CD3 antibody induced IL-2 or IFN-gamma secretion by human T cells. The ED50 for this effect is 1-6 μg/mL.
Source
Human embryonic kidney cell, HEK293-derived human CRACC/SLAMF7 protein
Human CRACC/SLAMF7
(Ser23-Met226)
Accession # Q9NQ25.1		IEGRMDHuman IgG1
(Pro100-Lys330)		Avi-tag
N-terminusC-terminus
Accession #
Q9NQ25.1
N-terminal Sequence
Analysis
Ser23
Structure / Form
Disulfide-linked homodimer, biotinylated via Avi-tag
Predicted Molecular Mass
51 kDa
SDS-PAGE
65-85 kDa, under reducing conditions

Product Datasheets

You must select a language.

x

AVI1906

Product Datasheet
COA
SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI1906

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 200 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein Binding Activity View Larger

When Human CRACC/SLAMF7 Antibody (MAB1906) is immobilized at 1.00 µg/mL (100 µL/well), the concentration of Biotinylated Recombinant Human CRACC/SLAMF7 Fc Chimera Avi-tag (Catalog # AVI1906) that produces 50% optimal binding response is 1.00-10.0 ng/mL.

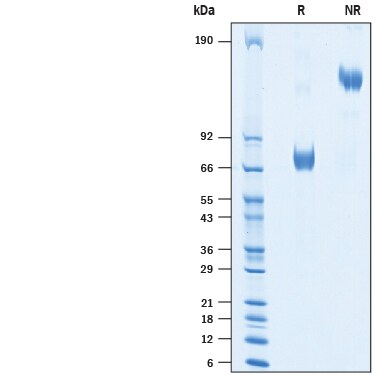

SDS-PAGE Recombinant Human CRACC/SLAMF7 Fc Avi-tag Protein SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human CRACC/SLAMF7 Fc Chimera Avi-tag (Catalog # AVI1906) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 65-85 kDa and 130-170 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CRACC/SLAMF7

CD2-like receptor activating cytotoxic cells (CRACC), also known as CS1, novel Ly9, SLAMF7, and CD319, is a type I transmembrane glycoprotein in the SLAM subgroup of the CD2 family (1). Mature human CRACC consists of an extracellular domain (ECD) with one Ig-like V-set domain and one Ig-like C2-set domain, a transmembrane segment, and a cytoplasmic domain with one immunoreceptor tyrosine-based switch motif (ITSM) (2, 3). Within the ECD, human CRACC shares 54% and 52% amino acid sequence identity with mouse and rat CRACC, respectively. There are seven known isoforms of CRACC which are distinguished by deletions and/or substitutions in both their ECD and cytoplasmic domains. CRACC is expressed on the surface of NK cells, CD8+ T cells, activated B cells, and mature dendritic cells (4, 5). Its homophilic interaction induces NK, CTL, and B cell activation (4-7). In human NK cells, activated CRACC transmits signals following association with the adaptor protein EAT-2 (8).Our Avi-tag Biotinylated Recombinant Human CRACC/SLAMF7 features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References
  1. Veillette, A. (2006) Immunol. Rev. 214:22.
  2. Tovar, V. et al. (2002) Immunogenetics 54:394.
  3. Murphy, J.J. et al. (2002) Biochem. J. 361:431.
  4. Bouchon, A. et al. (2001) J. Immunol. 167:5517.
  5. Lee, J.K. et al. (2007) J. Immunol. 179:4672.
  6. Kumaresan, P.R. et al. (2002) Mol. Immunol. 39:1.
  7. Stark, S. and C. Watzl (2006) Int. Immunol. 18:241.
  8. Tassi, H. and M. Colonna (2005) J. Immunol. 175:7996.
Entrez Gene IDs
57823 (Human); 75345 (Mouse); 102133710 (Cynomolgus Monkey)
Alternate Names
19A; CD2 subset 1; CD2-like receptor activating cytotoxic cells; CD319 antigen; CD319; CRACC; CRACCCD2-like receptor-activating cytotoxic cells; CS119A24 protein; Membrane protein FOAP-12; novel LY9 (lymphocyte antigen 9) like protein; Novel Ly9; Protein 19A; SLAM family member 7; SLAMF7
