Recombinant Human Jagged 1 His-tag Protein, CF

Catalog #: 10957-JG Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
10957-JG-050

Recombinant Human Jagged 1 His-tag Protein Bioactivity.

2 Images

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human Jagged 1 His-tag Protein, CF Summary

Product Specifications

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

Activity

Measured by the ability of the immobilized protein to enhance BMP-2 induced alkaline phosphatase activity in C3H10T1/2 mouse embryonic fibroblast cells. Nobta, M. et al. (2005) J. Biol. Chem. 280:15842. The ED₅₀ for this effect is 0.750-4.50 μg/mL.

Source

Human embryonic kidney cell, HEK293-derived human Jagged 1 protein
Ser32-Ser1046, with a C-terminal 6-His tag

Accession #

P78504.3

N-terminal Sequence
Analysis

Ser32

Predicted Molecular Mass

111 kDa

SDS-PAGE

125-150 kDa, reducing conditions.

Product Datasheets

10957-JG

Product Datasheet

COA

SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10957-JG

Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution	Reconstitute at 500 μg/mL in PBS.
Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity

View Larger

Immobilized Recombinant Human Jagged 1 His-tag (Catalog # 10957-JG) enhances Recombinant Human/Mouse/Rat BMP-2 (355-BM) induced alkaline phosphatase activity in C3H10T1/2 mouse embryonic fibroblast cells. The ED₅₀ for this effect is 0.750-4.50 µg/mL.

SDS-PAGE

View Larger

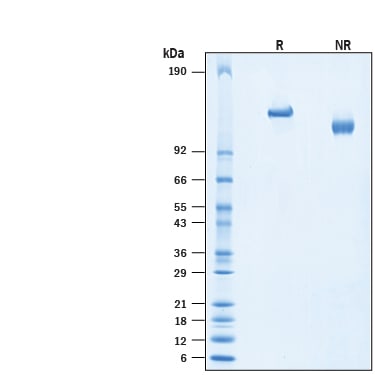

2 μg/lane of Recombinant Human Jagged 1 His-tag Protein (Catalog # 10957-JG) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 125-150 kDa.

Reconstitution Calculator

Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185-229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. This product is an N-terminal ECD fragment that includes DSL domain and the first 3 EGF-like domains. Mature human Jagged 1 is 97% and 96% aa identical to mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1-8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

References
