Home / Jagged 1 / Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein, CF

Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein, CF

Catalog #: 10111-JG
1 Citation Datasheet / COA / SDS
Catalog # Availability Size / Price Qty
10111-JG-050
Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein Bioactivity
2 Images
Product Details
Citations (1)
FAQs
Reviews
Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein, CF Summary

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by the ability of the immobilized protein to enhance BMP-2 induced alkaline phosphatase activity in C3H10T1/2 mouse embryonic fibroblast cells. Nobta, M. et al. (2005) J. Biol. Chem. 280:15842. The ED50 for this effect is 0.3-1.8 μg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human Jagged 1 protein
Human Jagged 1
(Ser32-Ile335)
Accession # P78504		IEGRMD Human IgG1
(Pro100-Lys330)
N-terminusC-terminus
Accession #
P78504
N-terminal Sequence
Analysis
Ser32
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
61 kDa
SDS-PAGE
72-80 kDa, reducing conditions

Product Datasheets

You must select a language.

x

10111-JG

Product Datasheet
COA
SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

10111-JG

Formulation Lyophilized from a 0.2 μm filtered solution in PBS.
Reconstitution Reconstitute at 1 mg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Bioactivity Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein Bioactivity View Larger

Immobilized Recombinant Human Jagged 1 N-Terminal Fc Chimera (Catalog # 10111-JG) enhances Recombinant Human/Mouse/Rat BMP-2 (Catalog # 355-BM) induced alkaline phosphatase activity in C3H10T1/2 mouse embryonic fibroblast cells. The ED50 for this effect is 0.3-1.8 µg/mL.

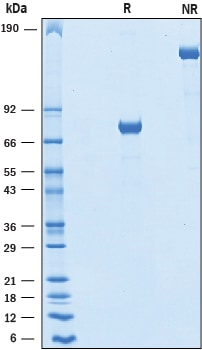

SDS-PAGE Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein SDS-PAGE View Larger

2 μg/lane of Recombinant Human Jagged 1 N-Terminal Fc Chimera was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 72-80 kDa and 140-160 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185-229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. This product is an N-terminal ECD fragment that includes DSL domain and the first 3 EGF-like domains. Mature human Jagged 1 is 97% and 96% aa identical to mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1-8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

References
  1. Sainson, R.C. and A.L. Harris (2008) Angiogenesis 11:41.
  2. Cordle, J. et al. (2008) Nat. Struct. Mol. Biol. 15:849.
  3. Artavamis-Tsokanas, S. et al. (1999) Science 284:770.
  4. Lai, E.C. (2004) Development 131:965.
  5. Milner, L.A. et al. (1994) Blood 83:2057.
  6. Nyfeler, Y. et al. (2005) EMBO J. 24:3504.
  7. Linheng, L. et al. (1998) Immunity 8:43.
  8. Iso, T. et al. (2003) Arterioscler. Thromb. Vasc. Biol. 23:543.
  9. Oda, T. et al. (1997) Nat. Genet. 16:235.
  10. Oda, T. et al. (1997) Genomics 43:376.
Entrez Gene IDs
182 (Human); 16449 (Mouse); 29146 (Rat)
Alternate Names
AGS; AHDMGC104644; Alagille syndrome; AWS; CD339 antigen; CD339; HJ1; JAG1; Jagged 1; Jagged1; JAGL1; protein jagged-1

Citation for Recombinant Human Jagged 1 N-Terminal Fc Chimera Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. The role of Jagged1 as a dynamic switch of cancer cell plasticity in PDAC assembloids
    Authors: JI Choi, JH Rim, SI Jang, JS Park, H Park, JH Cho, JB Lim
    Theranostics, 2022-05-24;12(9):4431-4445.
    Species: Human
    Sample Types: Whole Cells
    Applications: Bioassay
