Recombinant Human LILRB2/CD85d/ILT4 Fc Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI2078-050
Biotinylated Recombinant Human LILRB2/CD85d/ILT4 Fc Chimera Avi-tag Protein Binding Activity.
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human LILRB2/CD85d/ILT4 Fc Avi-tag Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human Angiopoietin-like Protein 2/ANGPTL2 C-Terminal Fragment  (Catalog # 9795-AN) is immobilized at 1 µg/mL (100 µL/well), Biotinylated Recombinant Human LILRB2/CD85d/ILT4 Fc Chimera Avi-tag (Catalog # AVI2078) binds with an ED50 of 10-80 ng/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human LILRB2/CD85d/ILT4 protein
Human ILT4
(Gln22-His458)
Accession # NP_005865.3
IEGRMDHuman IgG1 Fc
(Pro 100-Lys 330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
No results obtained, Gln22 inferred from enzymatic pyroglutamate treatment revealing Thr23
Structure / Form
Biotinylated via Avi-tag.
Predicted Molecular Mass
76 kDa
SDS-PAGE
90-100 kDa, under reducing conditions.

Product Datasheets

You must select a language.

x

AVI2078

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI2078

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

When Recombinant Human Angiopoietin‑like Protein 2/ANGPTL2 C-Terminal Fragment (9795-AN) is immobilized at 1 µg/mL (100 µL/well), Biotinylated Recombinant Human LILRB2/CD85d/ILT4 Fc Chimera Avi-tag (Catalog # AVI2078) binds with an ED50 of 10-80 ng/mL.

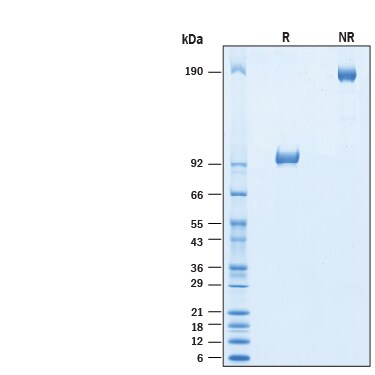

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human LILRB2/CD85d/ILT4 Fc Chimera Avi-tag Protein (Catalog # AVI2078) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 90-100 kDa and 180-200 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: LILRB2/CD85d/ILT4

The immunoglobulin-like transcript (ILT) comprise a family of activating and inhibitory type immunoreceptors whose genes are located in the same locus that encodes killer cell Ig-like receptors (KIR) (1-3). ILT4, also known as LIR-2 and LILRB2, is a type I transmembrane protein expressed primarily on monocytes and dendritic cells (DC) (4). Human ILT4 is produced as a 598 amino acid (aa) precursor including a 21 aa signal sequence, a 440 aa extracellular domain (ECD), a 21 aa transmembrane segment, and a 116 aa cytoplasmic domain. The ECD contains four Ig-like domains, and the cytoplasmic domain contains three immunoreceptor tyrosine-based inhibitory motifs (ITIM) (5). The ECD of human ILT4 shares 76% aa identity with chimpanzee ILT4 and 74%, 81%, 33%, 52%, 77%, 61%, and 64 % aa identity with human ILT1, 2, 3, 5, 6, 7, and 8, respectively. ILT4 binds to classical MHC I proteins as well as the non-classical HLA-G1 and HLA-F molecules (5-9). It competes with CD8 alpha for MHC I binding but does not compete with KIR2DL1 (7). Ligation of ILT4 induces Tyr phosphorylation within its cytoplasmic ITIMs, a requirement for association with SHP-1 (4, 6). Activation of ILT4 inhibits signaling through Fc gamma RI (4) and Fc epsilon RI (6) and causes DC to become tolerogenic by down-regulation of co‑stimulatory molecules (10, 11). ILT4 mediates tolerogenic DC‑induced CD4+ T cell energy in vitro and in vivo (10-12). Our Avi-tag Biotinylated human LILRB2/CD85d/ILT4 features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References
  1. Suciu-Foca, N. et al. (2005) Int. Immunopharmacol. 5:7.
  2. Hofmeister, V. and E.H. Weiss (2003) Semin. Canc. Biol. 13:317.
  3. Hunt, J.S. et al. (2005) FASEB J. 19:681.
  4. Finger, N.A. et al. (1998) Eur. J. Immunol. 28:3423.
  5. Borges, L. et al. (1997) J. Immunol. 159:5192.
  6. Colonna, M. et al. (1998) J. Immunol. 160:3096.
  7. Shiroishi, M. et al. (2003) Proc. Natl. Acad. Sci. 100:8856.
  8. Lepin, E.J.M. et al. (2000) Eur. J. Immunol. 30:3552.
  9. Allen, R.L. et al. (2001) J. Immunol. 167:5543.
  10. Chang, C.C. et al. (2002) Nat. Immunol. 3:237.
  11. Ristich, V. et al. (2005) Eur. J. Immunol. 35:1133.
  12. Manavalan, J.S. et al. (2003) Transpl. Immunol. 11:245.
Long Name
Leukocyte Immunoglobulin-like Receptor, Subfamily B (with TM and ITIM Domains), Member 5
Entrez Gene IDs
10288 (Human)
Alternate Names
CD85 antigen-like family member D; CD85d antigen; CD85d; Ig-like transcript 4; ILT4; ILT-4; ILT4CD85d; Immunoglobulin-like transcript 4; Leukocyte immunoglobulin-like receptor 2; leukocyte immunoglobulin-like receptor subfamily B member 2 soluble isoform; leukocyte immunoglobulin-like receptor subfamily B member 2; leukocyte immunoglobulin-like receptor, subfamily B (with TM and ITIM domains); LILRB2; LIR2; LIR2CD85D; LIR-2subfamily A (with TM domain), member 6; member 2; MIR10; MIR10LILRA6; Monocyte/macrophage immunoglobulin-like receptor 10
