Recombinant Human PDGF R alpha Fc Chimera Avi Protein, CF

Biotinylated Avi-tag
Catalog # Availability Size / Price Qty
AVI6765-050
Biotinylated Recombinant Human PDGF R alpha  Fc Chimera Avi-tag Protein Binding Activity.
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human PDGF R alpha Fc Chimera Avi Protein, CF Summary

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human PDGF-AA (Catalog # 221-AA) is immobilized at 0.5 µg/mL (100 µL/well), Biotinylated Recombinant Human PDGF R alpha Fc Chimera Avi-tag (Catalog # AVI6765) binds with an ED50 of 0.0400-0.480 µg/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human PDGF R alpha protein
Human PDGFRA
(Gln24-Glu524)
Accession # P16234.1
IEGRMDHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
Gln24; deduced from Leu25 after deblocking
Structure / Form
Disulfide-linked homodimer
Predicted Molecular Mass
85 kDa
SDS-PAGE
115-130 kDa, under reducing conditions.

Product Datasheets

You must select a language.

x

AVI6765

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI6765

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

Binding Activity View Larger

When Recombinant Human PDGF‑AA (221-AA) is immobilized at 0.5 µg/mL (100 µL/well), Biotinylated Recombinant Human PDGF R alpha Fc Chimera Avi-tag Protein (Catalog # AVI6765) binds with an ED50 of 0.0400-0.480 µg/mL.

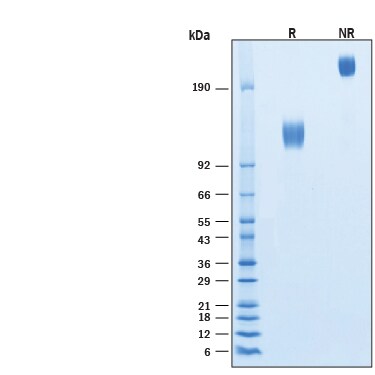

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human PDGF R alpha Fc Chimera Avi-tag Protein (Catalog # AVI6765) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 115-130 kDa and 230-260 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PDGF R alpha

PDGF R alpha (platelet-derived growth factor receptor alpha) is a type I transmembrane glycoprotein in the class III subfamily of receptor tyrosine kinases (RTK) (1 ‑ 4). PDGF R alpha and PDGF R beta can form homo- or hetero-dimeric receptors when engaged by dimers of the PDGF family of growth factors, which include disulfide-linked homodimers of PDGF-A, B, C or D, or the heterodimer PDGF-AB that is mainly found in human platelets. While multiple in vitro ligand-receptor combinations have been identified, in vivo evidence indicates that PDGF R alpha primarily binds PDGF-AA and PDGF-CC, while PDGF R beta primarily binds PDGF-BB and probably PDGF-DD. Like all class III RTKs, the extracellular domain (ECD) of human PDGF R alpha (aa 24 ‑ 524) contains five immunoglobulin-like domains, while the intracellular region contains a split tyrosine kinase domain (aa 593 ‑ 954) (1 ‑ 4). Within the ECD, human PDGF R alpha shares 85%, 83%, 95%, 93%, and 88% aa sequence identity with mouse, rat, equine, canine and bovine PDGF R alpha respectively. PDGF R alpha autophosphorylates upon dimerization, activating signaling cascades in PI 3-kinase Ras‑MAP kinase, and PLC-gamma pathways (1, 2). Signaling is down‑regulated by SHP-2 phosphatase activity and by receptor endocytosis and lysosomal degradation. PDGF R alpha is expressed at low levels in most mesenchymal cells, but is strongly expressed in oligodendrocyte, lung, skin and intestinal progenitor cells and induced by inflammation or growth in culture (1 ‑ 4). During development, mesenchymal cells expressing PDGF R alpha respond to local gradients of epithelially produced PDGF-AA or PDGF-CC during formation of the cranial and cardiac neural crest, retina, gonads, lung alveoli, intestinal villi, skin, hair follicles, skeleton, teeth, palate, and interstitial kidney mesenchyme (1, 5). Deletion of PDGF R alpha in mice severely impairs mesenchymal derivatives in both embryo and extraembryonic tissues, and high or low PDGF R alpha signaling in humans may result in spina bifida or cleft palate‑type malformations. Postnatally, PDGF R alpha is implicated in gliomas and fibrotic disorders of lung, heart and skin (scleroderma) (6, 8). Our Avi-tag Biotinylated PDGF R alpha  Fc Chimeria features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References
  1. Andrae, J. et al. (2008) Genes Dev. 22:1276.
  2. Heldin, C-H. and B. Westermark (1999) Physiol. Rev. 79:1283.
  3. Claesson-Welsh, L. et al. (1989) Proc. Natl. Acad. Sci. USA 86:4917.
  4. Matsui, T. et al. (1989) Science 243:800.
  5. Klinghoffer, R.A. et al. (2002) Dev. Cell 2:103.
  6. Martinho, O. (2009) Br. J. Cancer 101:973.
  7. Olson, L.E. and P. Soriano (2009) Dev. Cell 16:303.
  8. Baroni, S.S. et al. (2006) N. Engl. J. Med. 354:2667.
Long Name
Platelet-derived Growth Factor Receptor alpha
Entrez Gene IDs
5156 (Human); 18595 (Mouse)
Alternate Names
alpha-type platelet-derived growth factor receptor; CD140 antigen-like family member A; CD140a antigen; CD140a; EC 2.7.10; EC 2.7.10.1; MGC74795; PDGF R alpha; PDGFR alpha; PDGFR2; PDGFRA; PDGFRA/BCR fusion; PDGF-R-alpha; platelet-derived growth factor receptor, alpha polypeptide; rearranged-in-hypereosinophilia-platelet derived growth factor receptor alphafusion protein; RHEPDGFRA
