Recombinant Mouse CD8 alpha/beta Heterodimer Protein, CF

Catalog #: 11146-CD Datasheet / COA / SDS

Analyzed by SEC-MALS

Catalog #	Availability	Size / Price	Qty
11146-CD-050

Recombinant Mouse CD8 alpha/beta Heterodimer Protein SEC-MALS.

2 Images

Product Details

Reviews

Summary Product Datasheets Carrier Free Data Images Reconstitution Calculator Background Related Research Areas

Recombinant Mouse CD8 alpha/beta Heterodimer Protein, CF Summary

Product Specifications

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

Activity

Measured by its ability of the immobilized protein to support the adhesion of Jurkat human acute T cell leukemia cells. The ED₅₀ for this effect is 0.750-6.00 μg/mL.

Source

Human embryonic kidney cell, HEK293-derived mouse CD8 protein

Mouse CD8 alpha (Lys28-Tyr196) Accession # NP_033987.1	Acidic Tail	6-His tag
Mouse CD8 beta (Leu22-Thr175) Accession # P10300.1	Basic Tail	FLAG (DYKDDDDK)
N-terminus		C-terminus

N-terminal Sequence
Analysis

Lys28 (CD8 alpha) & Leu22 (CD8 beta)

Structure / Form

Disulfide-linked heterodimer

Predicted Molecular Mass

28 kDa (CD8 alpha) & 27 kDa (CD8 beta)

SDS-PAGE

33-37 kDa & 45-51 kDa, under reducing conditions.

Product Datasheets

11146-CD

Product Datasheet

COA

SDS

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

11146-CD

Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution	Reconstitute at 500 μg/mL in PBS.
Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage:	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

SEC-MALS

View Larger

Recombinant Mouse CD8 alpha/beta (Catalog # 11146-CD) has a molecular weight (MW) of 65.7 kDa as analyzed by SEC-MALS, suggesting that this protein is a heterodimer. MW may differ from predicted MW due to post-translational modifications (PTMs) present (i.e. Glycosylation).

Bioactivity

View Larger

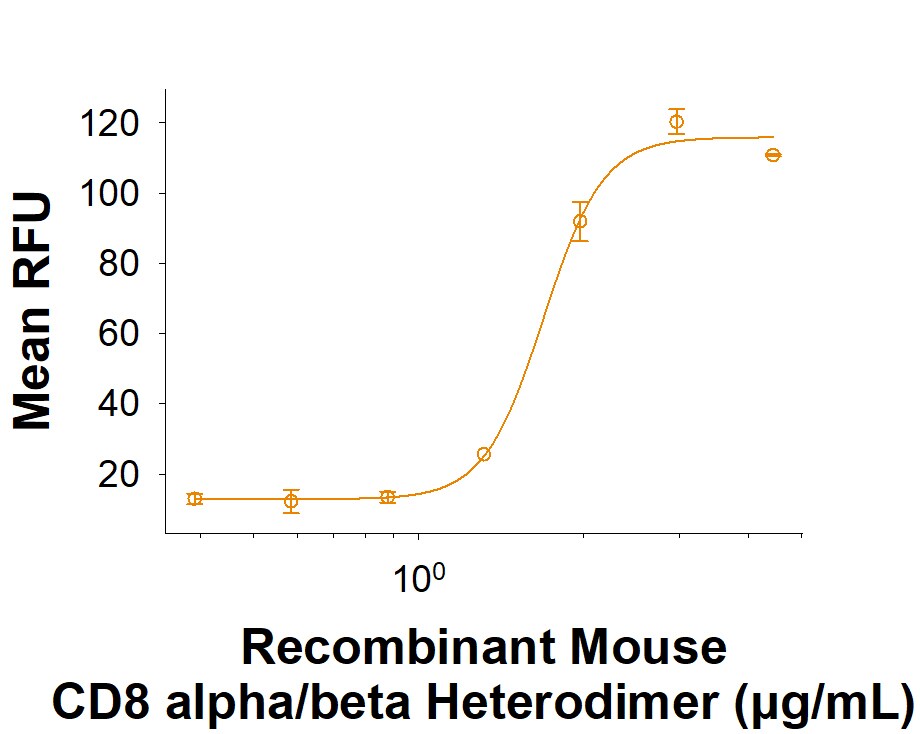

Recombinant Mouse CD8 alpha/beta Heterodimer Protein (Catalog # 11146-CD) supports the adhesion of Jurkat human acute T cell leukemia cells. The ED₅₀ for this effect is 0.750-6.00 μg/mL.

Reconstitution Calculator

Background: CD8

CD8, also known as Ly2 or Leu2, is a heterodimeric glycoprotein (alpha and beta subunits) that functions in conjunction with the T cell receptor in the recognition of MHC class I/peptide complexes (1, 2). CD8 alpha is expressed on double positive (CD4⁺ CD8⁺) thymocytes and mature CD8⁺ cytolytic T cells (CTL) (3-5), intraepithelial lymphocytes (IEL) (6), some gamma δ T cells (7), subsets of thymic and splenic dendritic cells (DC) (8), and peritoneal mast cells (9). It can form disulfide linked homodimers or heterodimers with CD8 beta (10). Thymic CD8⁺ DC express primarily alpha beta heterodimers, while splenic CD8⁺ DC primarily express alpha alpha homodimers (8). CD8 alpha ⁺ DC can present viral antigenic peptides in complex with MHC I and prime CTL responses (11).

References

Laugel, B. et al. (2011) J. Leukoc. Biol. 90:1089.
Cole, D.K. et al. (2012) Immunology 137:139.
Germain, R.N. (2002) Nat. Rev. Immunol. 2:309.
Ledbetter, J.A. et al. (1980) J. Exp. Med. 152:280.
Nakayama, K. et al. (1994) Science 263:1131.
Wang, J. and J.R. Klein (1994) Science 265:1860.
MacDonald, H.R. et al. (1990) Eur. J. Immunol. 20:927.
Vremec, D. et al. (1992) J. Exp. Med. 176:47.
Lin, T.J. et al. (1998) J. Immunol. 161:6265.
Snow, P.M. and C. Terhorst (1983) J. Biol. Chem. 258:14675.
Belz, G.T. et al. (2004) J. Immunol. 172:1996.

Entrez Gene IDs

925 (Human); 12525 (Mouse); 24930 (Rat); 102124337 (Cynomolgus Monkey); 493799 (Feline)

Alternate Names

CD_antigen: CD8a; CD8 antigen, alpha polypeptide (p32); CD8; CD8a molecule; CD8A; Leu2 T-lymphocyte antigen; LEU2; MAL; OKT8 T-cell antigen; p32; T cell co-receptor; T8 T-cell antigen; T-cell antigen Leu2; T-cell surface glycoprotein CD8 alpha chain; T-lymphocyte differentiation antigen T8/Leu-2
