Simple Plex Human Chitinase 3-like 1/YKL-40 Cartridge

Catalog #: SPCKB-PS-000255 Datasheet / COA / SDS

Simple Plex Human Chitinase 3-like 1 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-PS-000255
SPCKA-PS-000255
SPCKC-PS-000255

Control Products Available

898169: Simple Plex Control for Human Chitinase 3-like 1/YKL-40

3 Images

All Chitinase 3-like 1/YKL-40 Simple Plex Assays

Product Details

Supplemental Products

Reviews

Summary Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human Chitinase 3-like 1/YKL-40 Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Urine (25 uL), Cerebrospinal Fluid (10 uL)

Sensitivity

6.68 pg/mL

Assay Range

6.7 - 25,500 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine, Cerebrospinal Fluid)

Specificity

Natural and recombinant human CHI3L1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human Chitinase 3-like 1 (CHI3L1) in cell culture supernates (CCS), serum, plasma (EDTA/Heparin), urine, and cerebrospinal fluid (CSF).

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=2)	80	75-84

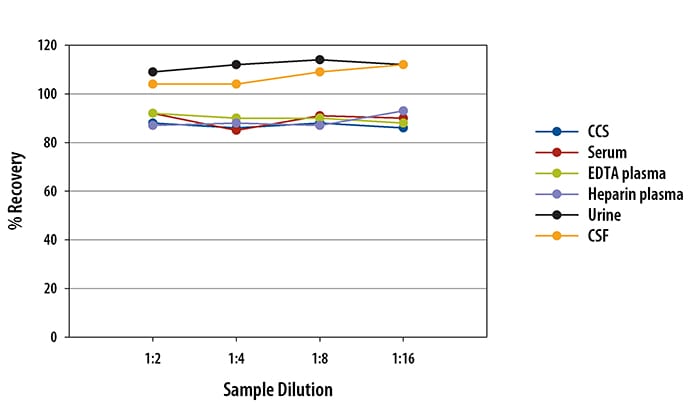

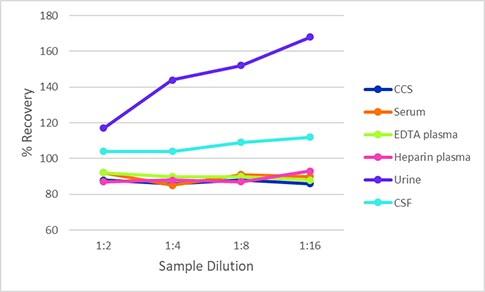

Linearity

Samples containing and/or spiked with high concentrations of human CHI3L1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data

N/A

View Larger

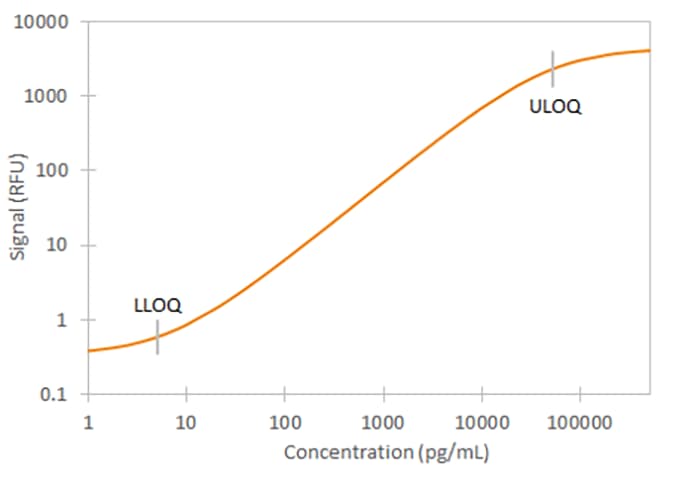

Human Chitinase 3-like 1 Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Chitinase 3-like 1/YKL-40

Chitinase 3-like 1 (CHI3L1), also called BRP39 in mouse or YKL-40 in humans, is a 39 kDa glycoprotein member of the glycosyl hydrolase 18 family although it does not show chitotriosidase activity. CHI3L1 is expressed by articular chondrocytes, synovial cells, activated monocyte-derived macrophages, neutrophils, endothelial cells, vascular smooth muscle cells, and some cancer cells. CHI3L1 binds to chitin and heparins, and it enhances cell adhesion, proliferation and tumor angiogenesis. Circulating CHI3L1 is elevated during inflammation and connective tissue remodeling such as arthritis, chronic obstructive pulmonary disease, diabetes, cardiovascular disease, inflammatory bowel disease, and liver cirrhosis. It is frequently upregulated in glioblastoma, myxoid chondrosarcoma, melanoma and carcinomas of the breast, thyroid, colon, lung, kidney, and ovary.

Entrez Gene IDs:

1116 (Human); 12654 (Mouse); 102138036 (Cynomolgus Monkey)

Alternate Names:

AW208766; Brp39; CHI3L1; Chitinase 3 like 1; Chitinase 3-like 1; gp39; HCgp39; YKL-40
