Simple Plex Human CXCL9/MIG Cartridge

Catalog #: SPCKB-PS-000402 Datasheet / COA / SDS

Simple Plex Human CXCL9/MIG assay kit contains cartridge, sample diluent SD13, and wash buffer. Part # starting with ST01 ships in 2-3 days. Sample type indicated with PS (Plasma/Serum)

Catalog #	Availability	Size / Price	Qty
SPCKB-PS-000402
SPCKA-PS-000402
SPCKC-PS-000402

Control Products Available

894951: Simple Plex Control for Human CXCL9/MIG

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human CXCL9/MIG Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)

Sensitivity

3.8 pg/mL

Assay Range

19.9 - 30,400 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant human MIG.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human MIG in cell culture supernatan (CCS), serum, and plasma (EDTA/Heparin)

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	19	19
Mean (pg/mL)	185	9368	178	9705
Standard Deviation	15.1	765	18.1	1072
CV%	8.2	8.2	10.2	11.1

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	100	94-104
Heparin Plasma (n=4)	100	89-109
Serum (n=4)	102	93-111

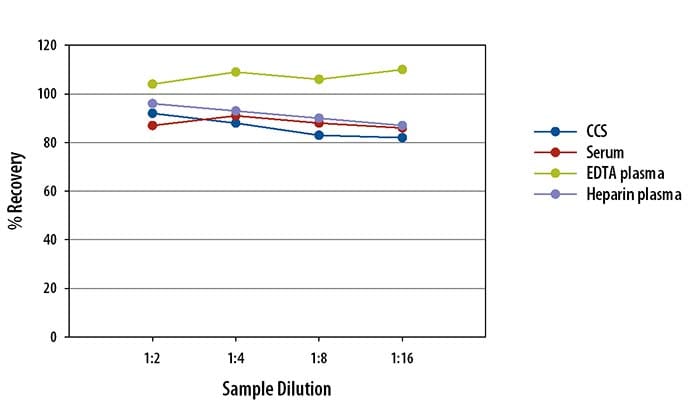

Linearity

Samples containing and/or spiked with high concentrations of human MIG were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data

N/A

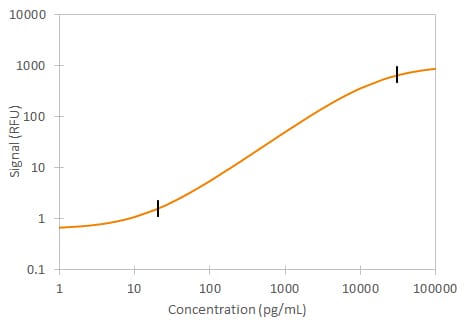

Human MIG Simple Plex Assay Standard Curve

View Larger

Human MIG Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CXCL9/MIG

CXCL9, also known as MIG, is a chemokine that is induced in macrophages and in CNS glial cells in response to IFN-gamma. CXCL9 signals through CXCR3 to induce the chemoattraction of activated T cells and tumor-infiltrating lymphocytes.

Entrez Gene IDs:

4283 (Human); 17329 (Mouse); 246759 (Rat)

Alternate Names:

chemokine (C-X-C motif) ligand 9; CMK; crg-10; C-X-C motif chemokine 9; CXCL9; Gamma-interferon-induced monokine; Humig; MIG; MIGSmall-inducible cytokine B9; monokine induced by gamma interferon; SCYB9Monokine induced by interferon-gamma
