Simple Plex Human Osteopontin/OPN 2nd Gen Cartridge

Catalog #: SPCKB-PS-004314 Datasheet / COA / SDS
Simple Plex Cartridge Kit for quantitation of OPN. Contains cartridge, sample diluent SD13, and wash buffer
Catalog # Availability Size / Price Qty
SPCKB-PS-004314
SPCKA-PS-004314
SPCKC-PS-004314
Control Products Available
Human OPN (2nd Gen) Ella Assay
3 Images
Product Details
FAQs
Supplemental Products
Reviews

Simple Plex Human Osteopontin/OPN 2nd Gen Cartridge Summary

Assay Type
Automated sandwich ELISA
Format
Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Assay Length
90 minutes
Sample Type & Volume Required Per Well*
Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Urine (10 uL), Cerebrospinal Fluid (10 uL)
Sensitivity
7.33 pg/mL
Assay Range
21.0 - 12,800 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine, Cerebrospinal Fluid)
Cross-reactivity
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
Interference
No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human Osteopontin (OPN) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), urine, and cerebrospinal fluid (CSF).

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay
Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine, Cerebrospinal Fluid

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 42 42
Mean (pg/mL) 221 10403 93.2 4790
Standard Deviation 16.19 661 9.46 454
CV% 7.3 6.4 10.1 9.5

Recovery

Recovery was not necessary as OPN shows natural linearity data from a neat sample to a 1:16 dilution.

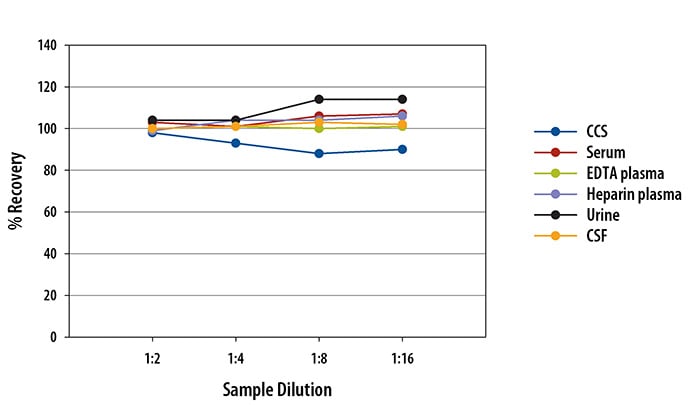

Linearity

Samples containing and/or spiked with high concentrations of human OPN were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.
Human OPN (2nd Gen) Ella Assay Linearity

Scientific Data

Human OPN (2nd Gen) Ella Standard Curve

Product Datasheets

You must select a language.

x

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Osteopontin/OPN

Osteopontin (OPN), also known as bone sialoprotein (BSP), is a secreted SIBLING family protein that can be variably modified by O- and N-glycosylation, sulfation, phosphorylation, and transglutamination. OPN is widely expressed and is prominent in mineralized tissues. It inhibits bone mineralization and kidney stone formation and promotes inflammation, cell ad¬hesion, and migration. Its expression is upregulat¬ed during inflammation, obesity, atherosclerosis, cancer, and tissue damage and contributes to the pathophysiology of these conditions. The central region of OPN contains RGD and non-RGD binding sites for multiple integrins. Adjacent to the RGD motif is the sequence SLAYGLR (SVVYGLR in human) which serves as a cryptic binding site for additional integrins: it is masked in full length OPN but is exposed following OPN cleavage by multiple proteases in tumors and sites of tissue injury.

Long Name:
Secreted Phosphoprotein 1 [BNSP]
Entrez Gene IDs:
6696 (Human); 20750 (Mouse); 25353 (Rat); 281499 (Bovine)
Alternate Names:
BNSP; Bone sialoprotein 1; Eta-1; MGC110940; Nephropontin; OPN; Osteopontin; secreted phosphoprotein 1bone sialoprotein I, early T-lymphocyteactivation 1); secreted phosphoprotein-1 (osteopontin, bone sialoprotein); Spp1; SPP-1; SPP1/CALPHA1 fusion; Urinary stone protein; uropontin
