Simple Plex Human VCAM-1/CD106 Cartridge

Catalog #: SPCKB-PS-000227 Datasheet / COA / SDS

Simple Plex Human VCAM-1/CD106 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-PS-000227
SPCKA-PS-000227
SPCKC-PS-000227

Control Products Available

898107: Simple Plex Control for Human VCAM-1/CD106

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Simple Plex Human VCAM-1/CD106 Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Cerebrospinal Fluid (10 uL)

Sensitivity

53.7 pg/mL

Assay Range

137.0 - 83,490 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid)

Specificity

Natural and recombinant human VCAM-1.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of human VCAM-1 in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and cerebrospinal fluid (CSF).

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Cerebrospinal Fluid

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	10	9
Mean (pg/mL)	732	28218	629	27484
Standard Deviation	41.3	1686	66.6	1431
CV%	5.6	6	10.6	5.2

Recovery

Recovery was not necessary as VCAM-1 shows natural linearity data from a neat sample to a 1:16 dilution.

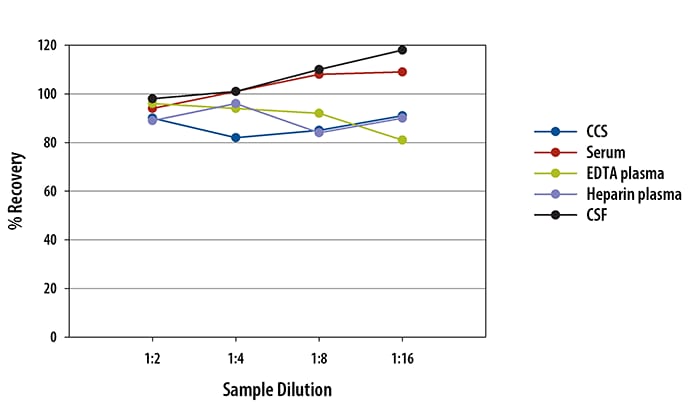

Linearity

Samples containing and/or spiked with high concentrations of human VCAM-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

Human VCAM-1 Simple Plex Assay Standard Curve

View Larger

Human VCAM-1 Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: VCAM-1/CD106

VCAM-1 (Vascular Cell Adhesion Molecule-1; CD106) is a transmembrane molecule that mediates the adhesion of immune cells to the vascular endothelium during inflammation. It binds to several integrins including alpha4/beta1 (VLA-4), alpha4/beta7, alpha9/beta1, and alphaD/beta2. It is expressed constitutively in the bone marrow where it regulates T cell, B cell, and hematopoietic progenitor cell migration. A soluble form VCAM-1 can promote monocyte chemotaxis.

Long Name:

Vascular Cell Adhesion Molecule 1

Entrez Gene IDs:

7412 (Human); 22329 (Mouse)

Alternate Names:

CD106 antigen; CD106; DKFZp779G2333; INCAM-100; L1CAM; MGC99561; vascular cell adhesion molecule 1; vascular cell adhesion protein 1; V-CAM 1; VCAM1; VCAM-1
