Non-Human Primate TIMP-2 Cartridge New

Catalog #: SPCKB-NP-011336 Datasheet / COA / SDS

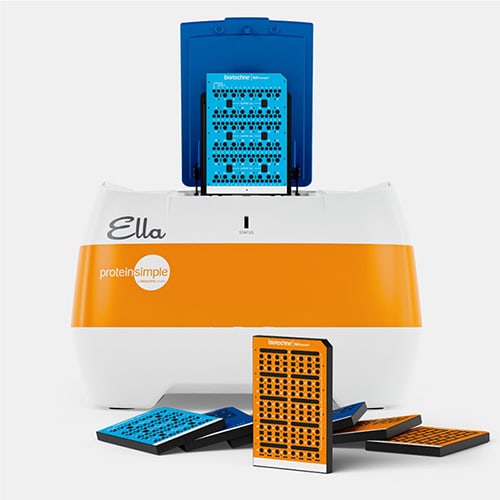

Simple Plex Non-Human Primate TIMP-2 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer

Catalog #	Availability	Size / Price	Qty
SPCKB-NP-011336
SPCKA-NP-011336-011315
SPCKC-NP-011336

Control Products Available

896947: Simple Plex Control for Human TIMP-2

Non-Human Primate TIMP-2 Ella Assay Standard Curve

3 Images

Product Details

Supplemental Products

Reviews

Summary Precision Recovery Linearity Data Examples Product Datasheets Preparation and Storage Background Related Research Areas

Non-Human Primate TIMP-2 Cartridge Summary

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL)

Sensitivity

4.8 pg/mL

Assay Range

20.5 - 12,500 pg/mL (Serum, EDTA Plasma, Heparin Plasma)

Specificity

Natural and recombinant TIMP-2.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

Product Summary

Simple Plex assay for the detection of non-human primate Tissue Inhibitor of Metalloproteinases 2 (TIMP-2) in serum and plasma (EDTA/Heparin).

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	47	47
Mean (pg/mL)	183	9932	167	10585
Standard Deviation	8.3	587	11.2	991
CV%	4.5	5.9	6.7	9.4

Recovery

Recovery was not necessary as TIMP-2 shows 5 points of natural linearity.

Linearity

Samples containing and/or spiked with high concentrations of TIMP-2 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data

N/A

View Larger

Non-Human Primate TIMP-2 Ella Assay Standard Curve

Product Datasheets

Product Datasheet

COA

SDS

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TIMP-2

TIMPs-1 through -4 regulate the activity of zinc metalloproteases known as MMPs, ADAMs and ADAMTSs. Structurally, TIMPs contain two domains. The N-terminal domain binds to the active site of mature metalloproteases via a 1:1 non-covalent interaction, blocking access of substrates to the catalytic site. In addition, The C-terminal domain of TIMP-1 and TIMP-2 binds to the hemopexin- like domain of pro-MMP-9 and pro-MMP-2, respectively. The latter binding is essential for the cell surface activation of MMP-2 by MMP-14.

Long Name:

Tissue Inhibitors of Metalloproteinases 2

Entrez Gene IDs:

7077 (Human); 21858 (Mouse); 29543 (Rat)

Alternate Names:

CSC-21Ktissue inhibitor of metalloproteinase 2; metalloproteinase inhibitor 2; TIMP metallopeptidase inhibitor 2; TIMP2; TIMP-2; Tissue inhibitor of metalloproteinases 2
